Fabrication of Nanometer Sized Si Dot Arrays Using Ar Ion Milling with Calixarene Resist Dot Arrays

Abstract:

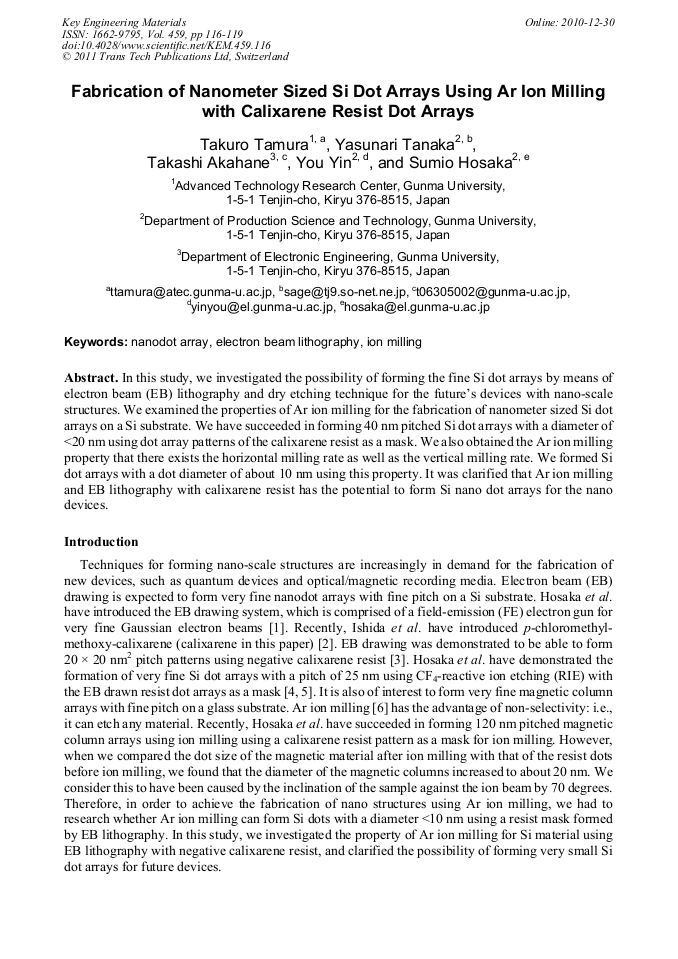

Article Preview

In this study, we investigated the possibility of forming the fine Si dot arrays by means of electron beam (EB) lithography and dry etching technique for the future’s devices with nano-scale structures. We examined the properties of Ar ion milling for the fabrication of nanometer sized Si dot arrays on a Si substrate. We have succeeded in forming 40 nm pitched Si dot arrays with a diameter of <20 nm using dot array patterns of the calixarene resist as a mask. We also obtained the Ar ion milling property that there exists the horizontal milling rate as well as the vertical milling rate. We formed Si dot arrays with a dot diameter of about 10 nm using this property. It was clarified that Ar ion milling and EB lithography with calixarene resist has the potential to form Si nano dot arrays for the nano devices.

Info:

Periodical:

Edited by:

Osamu Hanaizumi and Masafumi Unno

Pages:

116-119

DOI:

10.4028/www.scientific.net/KEM.459.116

Citation:

T. Tamura et al., "Fabrication of Nanometer Sized Si Dot Arrays Using Ar Ion Milling with Calixarene Resist Dot Arrays", Key Engineering Materials, Vol. 459, pp. 116-119, 2011

Online since:

December 2010

Export:

Price:

$35.00

[1] S. Hosaka, M. Ichihashi, M. Hayakawa, S. Nishi and M. Migitaka: Jpn. J. Appl. Phys. Vol. 21 (1982) p.543.

[2] M. Ishida, J. Fujita, T. Ogura, Y. Ochiai, E. Ohshima and J. Momoda: Jpn. J. Appl. Phys. Vol. 42 (2003), p.3913.

[3] S. Hosaka, Z. Mohamad, M. Shirai, H. Sano, Y. Yin, A. Miyachi and H. Sone: Appl. Phys. Exp. Vol. 1 (2008), p.027003.

[4] S. Hosaka, Z. Mohamad, M. Shirai, H. Sano, Y. Yin, A. Miyachi and H. Sone: Microelectronic Eng. vol. 84 (2007), p.802.

[5] Z. Mohamad, M. Shirai, H. Sone, S. Hosaka and M. Kodera: Nanotechnology vol. 19 (2008), p.025301.

[6] S. Hosaka and S. Hashimoto: J. Vac. Sci. Technol. Vol. 15 (1978), p.1712.
