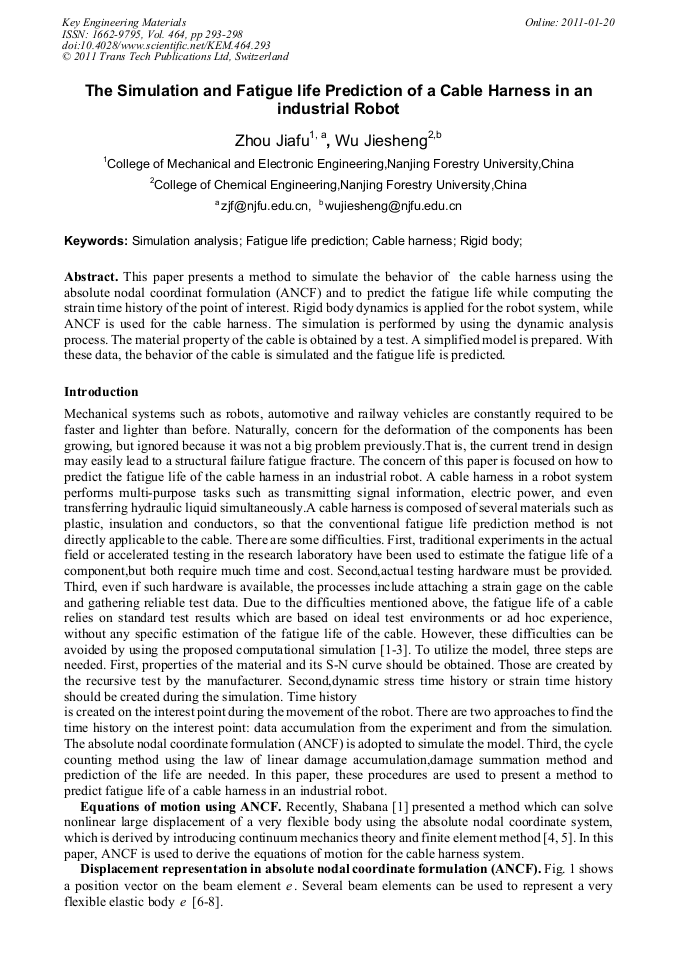

The Simulation and Fatigue Life Prediction of a Cable Harness in an Industrial Robot

Abstract:

This paper presents a method to simulate the behavior of the cable harness using the absolute nodal coordinat formulation (ANCF) and to predict the fatigue life while computing the strain time history of the point of interest. Rigid body dynamics is applied for the robot system, while ANCF is used for the cable harness. The simulation is performed by using the dynamic analysis process. The material property of the cable is obtained by a test. A simplified model is prepared. With these data, the behavior of the cable is simulated and the fatigue life is predicted.

• Periodical: Key Engineering Materials (Volume 464)
• Pages: 293-298
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.464.293
• Online since: January 2011
• Authors: Jia Fu Zhou, Jie Sheng Wu
• Keywords: Cable Harness, Fatigue Life Prediction, Rigid Body, Simulation Analysis

References

[1] A. A. Shabana, Flexible multibody dynamics: Journal of Multibody System Dynamics 1 (1997) pp.189-222.

DOI: 10.1023/a:1009773505418

[2] D. Vallejo, J. Mayo, J. L. Escalona and J. Dominguez, Journal of Nonlinear Dynamics Vol. 35 (2004) pp.313-329.

[3] A. A. Shabana, Dynamics of Multibody Systems, 2nd Edition, Cambridge University Press, Cambridge, USA, (1998).

[4] E. J. Haug, Computer-Aided Kinematics and Dynamics of Mechanical Systems, Vol. I : Basic Methods, Allyn and Bacon, USA, (1989).

[5] W. S. Yoo, S. J. Lee and J. H. Sohn: Journal of Nonlinear Dynamics Vol 34 (2003), pp.3-29.

[6] Bathe, K. J., Finite Element Procedures, Prentice-Hall, USA, (1995).

[7] J. A. Bannantine, J. J. Comer and J. L. Handrock, Fundamentals of Metal Fatigue Analysis, Prentice Hall, USA, (1990).

[8] Product Catalog, Hitachi Cable Co.
