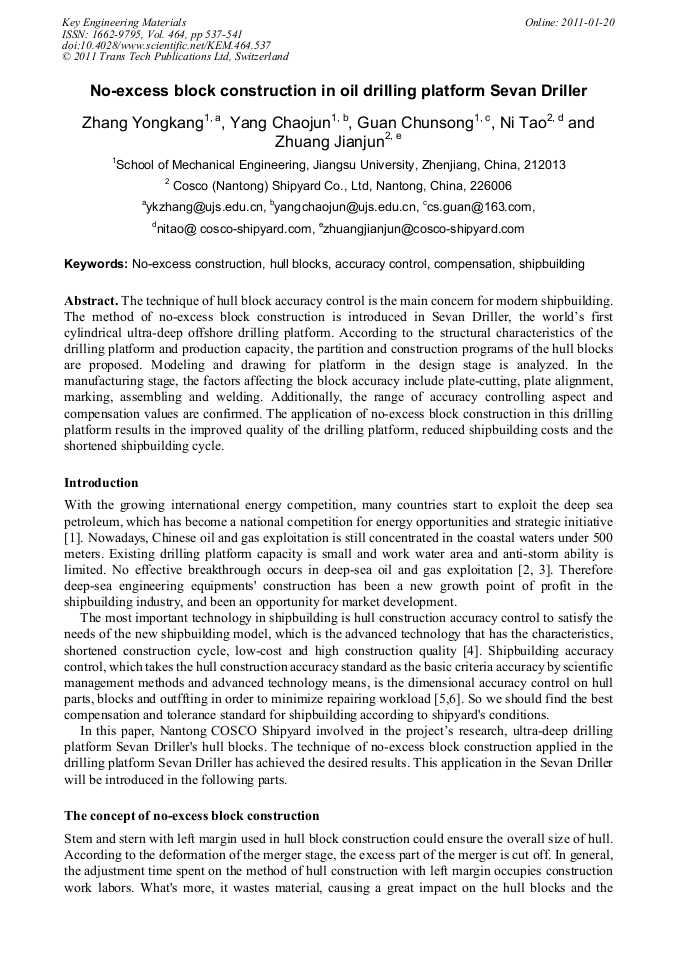

No-Excess Block Construction in Oil Drilling Platform Sevan Driller

Abstract:

The technique of hull block accuracy control is the main concern for modern shipbuilding. The method of no-excess block construction is introduced in Sevan Driller, the world’s first cylindrical ultra-deep offshore drilling platform. According to the structural characteristics of the drilling platform and production capacity, the partition and construction programs of the hull blocks are proposed. Modeling and drawing for platform in the design stage is analyzed. In the manufacturing stage, the factors affecting the block accuracy include plate-cutting, plate alignment, marking, assembling and welding. Additionally, the range of accuracy controlling aspect and compensation values are confirmed. The application of no-excess block construction in this drilling platform results in the improved quality of the drilling platform, reduced shipbuilding costs and the shortened shipbuilding cycle.

• Periodical: Key Engineering Materials (Volume 464)
• Pages: 537-541
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.464.537
• Online since: January 2011
• Authors: Yong Kang Zhang, Chao Jun Yang, Chun Song Guan, Tao Ni, Jian Jun Zhuang
• Keywords: Accuracy Control, Compensation, Hull Blocks, No-Excess Construction, Shipbuilding

References

[1] Z.J. Mao: China Petrochem Vol. 6 (2007), pp.67-69.

[2] L.F. Yang, Y. Peng: Shipbuilding Of China Vol. 47 (2006), pp.26-30.

[3] R.P. Li, Y.H. Xie, Z. Shu: China Offshore Platform Vol. 18(2003), pp.1-5.

[4] M.H. Zhang: The Study of Lean Shipbuilding System (China Economy Press, Beijing 2005).

[5] J.W. Ye: Introduction Of Modern Shipbuilding Technology (South China University Of Technology Press, Guangzhou 2001).

[6] Y.J. Liu, Y.J. Li: Shipbuilding Of China Vol. 45 (2004), pp.81-86.

[7] Z.L. Chen, Y.F. Xiong, Z.M. Li: Jiangsu Ship Vol. 25(2008), pp.36-39.

[8] Y.J. Liu, R.Q. Hu, F.Z. Tian: Journal Of Harbin Engineering University Vol. 28(2007), p.723.

[9] L.S. Richard: Production Planning and Control Vol. 10(1999), pp.127-137.

[10] T. Wang, Z.R. Liu: Maring Technology Vol. 2(2003), pp.20-22.

[11] G.J. Bruce, M. Z. Yuliadi, A. Shahab: Journal Of Ship Production Vol. 17(2001), pp.62-68.

[12] Q.Y. Li: Maring Technology Vol. 5(2007), pp.9-12.
