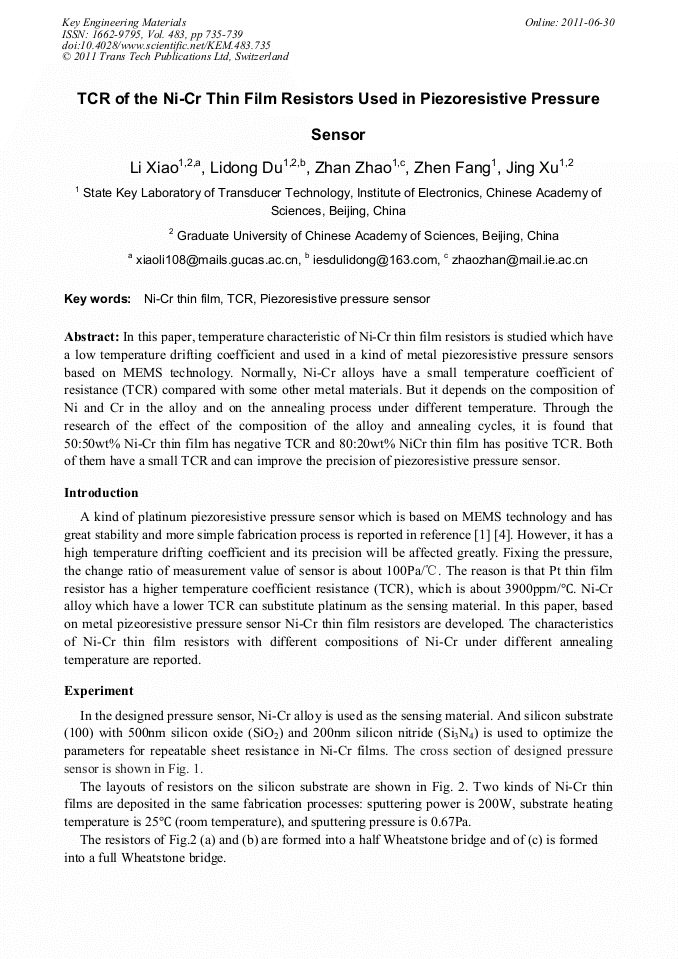

TCR of the Ni-Cr Thin Film Resistors Used in Piezoresistive Pressure Sensor

Abstract:

In this paper, temperature characteristic of Ni-Cr thin film resistors is studied which have a low temperature drifting coefficient and used in a kind of metal piezoresistive pressure sensors based on MEMS technology. Normally, Ni-Cr alloys have a small temperature coefficient of resistance (TCR) compared with some other metal materials. But it depends on the composition of Ni and Cr in the alloy and on the annealing process under different temperature. Through the research of the effect of the composition of the alloy and annealing cycles, it is found that 50:50wt% Ni-Cr thin film has negative TCR and 80:20wt% NiCr thin film has positive TCR. Both of them have a small TCR and can improve the precision of piezoresistive pressure sensor.

• Periodical: Key Engineering Materials (Volume 483)
• Pages: 735-739
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.483.735
• Online since: June 2011
• Authors: Li Xiao, Li Dong Du, Zhan Zhao, Zhen Fang, Jing Xu
• Keywords: Ni-Cr Thin Film, Piezoresistive Pressure Sensor, TCR

References

[1] C. Pang, Z. Zhao, Li. Shi, L. Du, Z. Fang, An excellent platinum piezoresistive pressure sensor using adhesive bonding with SU-8, Advanced Material Research, Vol. 60-61, (2009) pp.68-73.

DOI: 10.4028/www.scientific.net/amr.60-61.68

[2] Weiping Yan, Henan Li, et al., Nickel membrane temperature sensor in micro-flow measurement, Journal of Alloys and Compounds 449 (2008) 210–213.

DOI: 10.1016/j.jallcom.2006.02.101

[3] Ye-Sul Jeong , Hyun-Uk Lee , Sang-A Lee, et al., Annealing effect of platinum -based electrodes on physical properties of PZT thin films, Current Applied Physics, 9, 2009, 115–119.

DOI: 10.1016/j.cap.2007.12.006

[4] Gregory T. A. Kovacs, Micromachined Transducers Sourcebook, McGraw-Hill Companies Inc, (1998).
