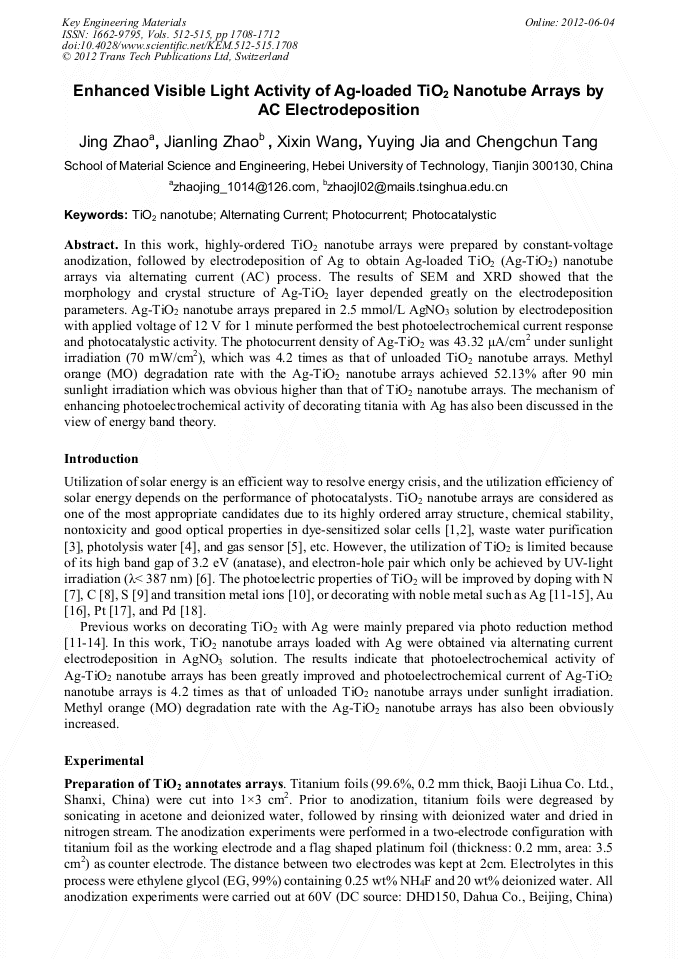

Enhanced Visible Light Activity of Ag-Loaded TiO₂ Nanotube Arrays by AC Electrodeposition

Abstract:

In this work, highly-ordered TiO₂ nanotube arrays were prepared by constant-voltage anodization, followed by electrodeposition of Ag to obtain Ag-loaded TiO₂ (Ag-TiO₂) nanotube arrays via alternating current (AC) process. The results of SEM and XRD show that the morphology and crystal structure of Ag-TiO₂ layer depend greatly on the electrodeposition parameters. Ag-TiO₂ nanotube arrays prepared in 2.5 mmol/L AgNO₃ solution by electrodeposition with applied voltage of 12 V for 1 minute performed the best photoelectrochemical current response and photocatalystic activity. The photocurrent density of Ag-TiO₂ is 43.32 μA/cm² under sunlight irradiation (70 mW/cm²), which is 4.2 times as that of unloaded TiO₂ nanotube arrays. Methyl orange (MO) degradation rate with the Ag-TiO₂ nanotube arrays achieves 52.13% after 90 min sunlight irradiation which is obvious higher than that of TiO₂ nanotube arrays. The mechanism of enhancing photoelectrochemical activity of decorating titania with Ag has also been discussed in the view of energy band theory.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 1708-1712
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.1708
• Online since: June 2012
• Authors: Jing Zhao, Jian Ling Zhao, Xi Xin Wang, Yu Ying Jia, Cheng Chun Tang
• Keywords: Alternating Current, Photocatalystic, Photocurrent, TiO₂ Nanotube

References

[1] G. K. Mor, K. Shankar, M. Paulose, O. K. Varghese, C. A. Grimes, Use of highly-ordered TiO2 nanotube arrays in dye-sensitized solar cells, Nano. Lett. 6 (2006) 215-218.

DOI: 10.1021/nl052099j

[2] K. Shankar, J. Bandara, M. Paulose, et al., Highly efficient solar cells using TiO2 nanotube arrays sensitized with a donor–antenna dye, Nano. Lett. 8 (2008) 1654-1659.

DOI: 10.1021/nl080421v

[3] W. D. Wang, P. Serp, P. Kalck J. L. Faria, Photocatalytic degradation of phenol on MWNT and titania composite catalysts prepared by a modified sol-gel method, Appl Catal B 56 (2005) 305-312.

DOI: 10.1016/j.apcatb.2004.09.018

[4] K. Shankar, G. K. Mor, H. E. Prakasam, et al., Highly–ordered TiO2 nanotube arrays up to 220 μm in length: use in water photoelectrolysis and dye–sensitized solar cells, Nanotechnology 18 (2007) 065707.

DOI: 10.1088/0957-4484/18/6/065707

[5] M. Paulose, O. K. Varghese, G. K. Mor, C. A. Grimes K. G. Ong, Unprecedented ultra-high hydrogen gas sensitivity in undoped titania nanotubes, Nanotechnology 17 (2006) 398-402.

DOI: 10.1088/0957-4484/17/2/009

[6] A. L. Linsebigler, G. Lu, J. T. Photocatalysis on TiO2 Surfaces: Principles, Mechanisms and Selected Results, Chem. Rev. 95 (1995) 735-758

DOI: 10.1021/cr00035a013

[7] M. M. Joshi, N. K. Labhsetwar, P. A. Mangrulkar, et al., Visible light induced photoreduction of methyl orange by N-doped mesoporous titania, Appl. Catal. A: Gen 357 (2009) 26-33

DOI: 10.1016/j.apcata.2008.12.030

[8] Y. H. Ao, J. J. Xu, D. G. Fu, C. W. Yuan, Visible-light responsive C, N-codoped Titania hollow spheres for X-3B dye photodegradation, Micropor. Mesopor. Mat. 118 (2009) 382-386

DOI: 10.1016/j.micromeso.2008.09.010

[9] S. X. Liu, X. Y. Chen, A visible light response TiO2 photocatalyst realized by cationic S-doping and its application for phenol degradation, J. Hazard. Mater 152 (2008) 48-55

DOI: 10.1016/j.jhazmat.2007.06.062

[10] C. H. Lu, C. Y. Hu, C. H. Wu, Low-temperature preparation and characterization of iron-ion doped titania thin films, J. Hazard. Mater 159 (2008) 636-639

DOI: 10.1016/j.jhazmat.2008.02.050

[11] I. Paramasivam, J. M. Macak, P. Schmuki, Photocatalytic activity of TiO2 nanotube layers loaded with Ag and Au nanoparticles, Electrochem. Commun. 10 (2008) 71-75

DOI: 10.1016/j.elecom.2007.11.001

[12] V. Iliev, D. Tomova, L. Bilyarska, A. Eliyas, L. Petrov, Photocatalytic properties of TiO2 modified with platinum and silver nanoparticles in the degradation of oxalic acid in aqueous solution, Appl. Catal. B: Environ 63 (2006) 266-271

DOI: 10.1016/j.apcatb.2005.10.014

[13] M. K. Seery, R. George, P. Floris, S. C. Pillai, Silver doped titanium dioxide nanomaterials for enhanced visible light photocatalysis, J. Photoch. Photobio. A 189 (2007) 258-263

DOI: 10.1016/j.jphotochem.2007.02.010

[14] I. M. Arabatzis, T. Stergiopoulos, M. C. Bernard, et al., Silver Modified Titanium Dioxide Thin Films for Efficient Photodegradation of Methyl Orange, Appl. Catal. B: Environ 42 (2003) 187-201

DOI: 10.1016/s0926-3373(02)00233-3

[15] L. Sun, J. Li, C. L. Wang, et al., Ultrasound aided photochemical synthesis of Ag loaded TiO2 nanotube arrays to enhance photocatalytic activity, J. Hazard. Mater. 171 (2009) 1045-1050

DOI: 10.1016/j.jhazmat.2009.06.115

[16] J. M. Macak, F. Schmidt-Stein, P. Schmuki, Efficient oxygen reduction on layers of ordered TiO2 nanotubes loaded with Au nanoparticles, Electrochem. Commun. 9 (2007) 1783-1787

DOI: 10.1016/j.elecom.2007.04.002

[17] J. M. Macak, P. J. Barczuk, H. Tsuchiya, et al., Self-organized nanotubular TiO2 matrix as support for dispersed Pt/Ru nanoparticles: Enhancement of the electrocatalytic oxidation of methanol, Electrochem. Commun. 7 (2005) 1417-1422

DOI: 10.1016/j.elecom.2005.09.031

[18] V. Iliev, D. Tomova, L. Bilyarska and L. Petrov, Photooxidation of Xylenol Orange in the Presence of Palladium modified TiO2 Catalysts, Catal. Commun. 5 (2004) 759-763

DOI: 10.1016/j.catcom.2004.09.005

[19] A. A. Ashkarran, S. M. Aghigh, M. Kavianipour, et al., Visible light photo-and bioactivity of Ag/TiO2 nanocomposite with various silver contents, Curr. Appl. Phys. doi:10.1016/ j.cap.2011.01.042

DOI: 10.1016/j.cap.2011.01.042

[20] Y, Takahashi. T, Tatsuma. Visible light-induced. Photocatalysts. With reductive energy storage abilities, Electrochem. Commun. 10 (2008) 1404-1407

DOI: 10.1016/j.elecom.2008.07.026

[21] Y. Tian, T. Tatsuma, Mecchanisms and Application of Plasmon-Induced Charge Separation of TiO2 Films Loads with Gold Nanoparticles, J. Am. Chem. Soc. 127 (2005) 7632-7637

DOI: 10.1021/ja042192u
