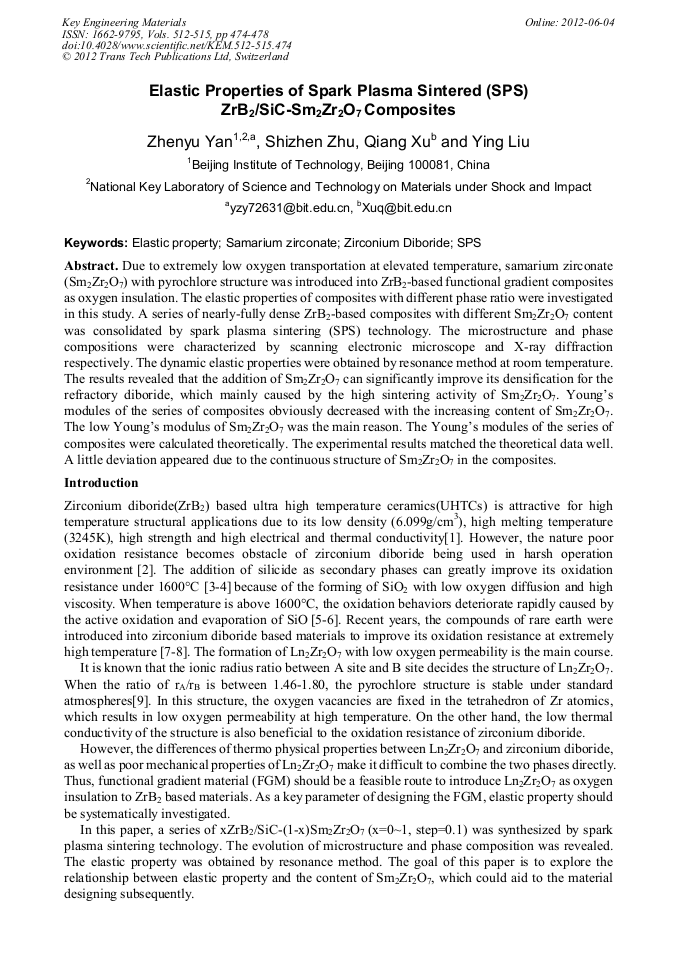

Elastic Properties of Spark Plasma Sintered (SPS) ZrB₂/SiC-Sm₂Zr₂O₇ Composites

Abstract:

Due to extremely low oxygen transportation at elevated temperature, samarium zirconate (Sm₂Zr₂O₇) with pyrochlore structure was introduced into ZrB₂-based functional gradient composites as oxygen insulation. The elastic properties of composites with different phase ratio were investigated in this study. A series of nearly-fully dense ZrB₂-based composites with different Sm₂Zr₂O₇ content was consolidated by spark plasma sintering (SPS) technology. The microstructure and phase compositions were characterized by scanning electronic microscope (SEM) and X-ray diffraction respectively. The dynamic elastic properties were obtained by resonance method at room temperature. The results revealed that the addition of Sm₂Zr₂O₇ can significantly improve its densification for the refractory diboride, which mainly caused by the high sintering activity of Sm₂Zr₂O₇. Young’s modules of the series of composites obviously decreased with the increasing content of Sm₂Zr₂O₇. The low Young’s modulus of Sm₂Zr₂O₇ was the main reason. The Young’s modules of the series of composites were calculated theoretically. The experimental results matched the theoretical data well. A little deviation appeared due to the continuous structure of Sm₂Zr₂O₇ in the composites.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 474-478
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.474
• Online since: June 2012
• Authors: Zhen Yu Yan, Shi Zhen Zhu, Qiang Xu, Ying Liu
• Keywords: Elastic Property, Samarium Zirconate, SPS, Zirconium Diboride

References

[1] W.G. Fahrenholtz, G.E. Hilmas. Refractory Diborides of Zirconium and Hafnium, Journal of American Ceramic Society, 90 (2007) 1347-1364.

DOI: 10.1111/j.1551-2916.2007.01583.x

[2] W.M. Guo, G.J. Zhang, Y.M. Kan, etc. Oxidation of ZrB2 powder in the Temperature Range of 650-800 Degree C, Journal of Alloys and Compounds, 471 (2009) 502-506.

DOI: 10.1016/j.jallcom.2008.04.006

[3] M. Mallik, K.K. Ray, R. Mitra. Oxidation Behavior of hot pressed ZrB2-SiC and HfB2-SiC Composites, Journal of the European Ceramic Society, 31 (2011) 199-215.

DOI: 10.1016/j.jeurceramsoc.2010.08.018

[4] C.M. Carney. Oxidation Resistance of Hafnium Diboride-Silicon Carbide from 1400 to 2000°C, Journal of the Material Science, 44 (2009) 5874-5681.

DOI: 10.1007/s10853-009-3799-7

[5] J.C. Han, P. Hu, X.H. Zhang, etc, Oxidation Behavior of Zirconium Diboride-Silicon Carbide at 1800°C, Scripta Materialia, 57 (2007) 825-828.

DOI: 10.1016/j.scriptamat.2007.07.009

[6] J.C. Han, P Hu, X.H. Zhang, etc, Oxiation-Resistant ZrB2-SiC Composites at 2200°C, Composites Science and Technology, 68 (2008) 799-806.

DOI: 10.1016/j.compscitech.2007.08.017

[7] W.M. Guo, J. Vleugels, G.J. Zhang, etc. Effects of Re2O3 (Re=La, Nd, Y and Yb) addition in Hot-pressed ZrB2-SiC Ceramics, Journal of the European Ceramic Society, 29 (2009) 3063-3068.

DOI: 10.1016/j.jeurceramsoc.2009.04.021

[8] X. H. Zhang, P. Hu, J. C. Han, etc, The Addition of Lanthanum Hexaboride to Zirconium Diboride for Improved Oxidation Resistance, Scripta Materialia, 57 (2007) 1036-1039.

DOI: 10.1016/j.scriptamat.2007.07.036

[9] A.J. Feighery, J.T.S. Irvine and C. Zheng, Phase Relations at 1500°C in the Ternary System ZrO2-Gd2O3-TiO2, Journal of Solid State Chemistry, 160(2001) 302-306.

DOI: 10.1006/jssc.2001.9201
