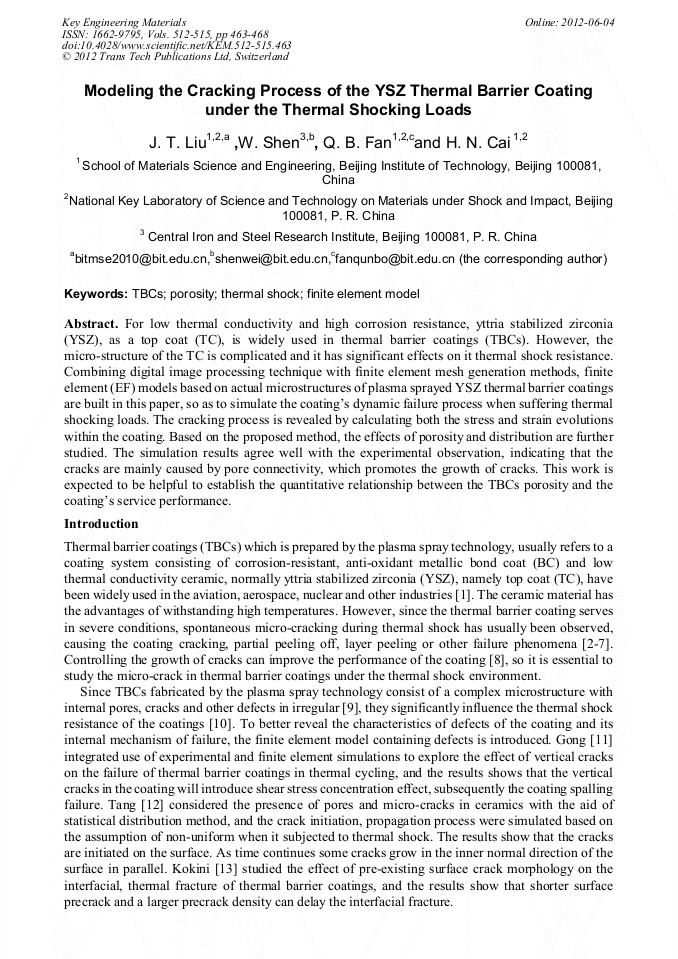

Modeling the Cracking Process of the YSZ Thermal Barrier Coating under the Thermal Shocking Loads

Abstract:

For low thermal conductivity and high corrosion resistance, yttria stabilized zirconia (YSZ), as a top coat (TC), is widely used in thermal barrier coatings (TBCs), and the micro-structure of the TC has significant effects on it thermal shock resistance. Combining digital image processing technique with finite element mesh generation methods, finite element (EF) models based on actual microstructures of plasma sprayed YSZ thermal barrier coatings are built in this paper, so as to simulate the coating’s dynamic failure process when suffering thermal shocking loads. The cracking process is revealed by calculating both the stress and strain evolutions within the coating. Based on the proposed method, the effects of porosity and distribution are further studied. The simulation results agree well with the experimental observation, indicating that the cracks are mainly caused by pore connectivity, which promotes the growth of cracks. This work is expected to be helpful to establish the quantitative relationship between the TBCs porosity and the coating’s service performance.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 463-468
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.463
• Online since: June 2012
• Authors: Jin Tao Liu, Wei Shen, Qun Bo Fan, H.N. Cai
• Keywords: Finite Element Model (FEM), Porosity, Thermal Barrier Coating (TBC), Thermal Shock

References

[1] J.W. Shen, G.S. Lv, Z. Ma, et al, The Cracks Forming and Developing of Thermal Barrier Coatings in Thermal Shock ,New Technology & New Process. 04 (2002) 39-41.

[2] K. Kokini, Y.R. Takeuchi B.D. Choules, Surface thermal cracking of thermal barrier coatings owing to stress relaxation: zirconia vs. mullite, Surface and Coatings Technology. 82 (1996) 77-82.

DOI: 10.1016/0257-8972(95)02647-9

[3] K. Kokini Y.R. Takeuchi, B.D. Choules, Thermal crack initiation mechanisms on the surface of functionally graded ceramic thermal barrier coatings, Ceramics International. 22 (1996) 397-401.

DOI: 10.1016/0272-8842(95)00122-0

[4] B.D. Choules, K. Kokini, T.A. Taylor, Thermal fracture of thermal barrier coatings in a high heat flux environment, Surface and Coatings Technology. 106 (1998) 23-29.

DOI: 10.1016/s0257-8972(98)00485-x

[5] D. Zhu, R.A. Miller, B.A. Nagaraj, et al, Thermal conductivity of EB-PVD thermal barrier coatings evaluated by a steady-state laser heat flux technique, Surf. Coatings Technology. 138 (2001) 1-8.

DOI: 10.1016/s0257-8972(00)01145-2

[6] B.D. Choules, K. Kokini, T.A. Taylor, Thermal fracture of ceramic thermal barrier coatings under high heat flux with time-dependent behavior.: Part 1. Experimental results, Materials Science and Engineering: A. 299 (2001) 296-304.

DOI: 10.1016/s0921-5093(00)01393-9

[7] J.W. Hutchinson, A.G. Evans, On the delamination of thermal barrier coatings in a thermal gradient, Surface and Coatings Technology. 149 (2002) 179-184.

DOI: 10.1016/s0257-8972(01)01451-7

[8] M. Arnold, A.R. Boccaccini, G. Ondracek, Theoretical and experimental considerations on the thermal shock resistance of sintered glasses and ceramics using modeled microstructure-property correlations, Journal of Materials Science. 31 (1996) 463-469.

DOI: 10.1007/bf01139165

[9] H.S. Zhang, F.C. Wang, Z.Ma, et al, Research Development of Pores in Plasma Sparayed Coatings, Materials Review. 20 (2006) 16-18.

[10] Y.I. Mai, B.R. Lawn. Crack-Interface Grain Bridging as a Fracture Resistance Mechanism in Ceramics: II, Theoretical Fracture Mechanics Model, J. Am. Ceram. Soc. 70 (1987) 289-294.

DOI: 10.1111/j.1151-2916.1987.tb04983.x

[11] L.Q. Chen, S.K. Gong, H.B. Xu, Influence of vertical cracks on failure mechanism of EB-PVD thermal barrier coatings during thermal cycling. Acta Metallurgica Sinica. 41 (2005) 979-984.

[12] S.B. Tang, C.A. Tang, Z.Z. Liang, et al, Failure process analysis of ceramic materials subjected to thermal shock, Acta Materiae Compositae Sinica. 25 (2008) 115-122.

[13] B. Zhou, K. Kokini, Effect of pre-existing surface crack morphology on the interfacial thermal fracture of thermal barrier coatings: a numerical study, Mater. Sci. Eng. A. 348 (2003) 271-279.

DOI: 10.1016/s0921-5093(02)00730-x

[14] LS-DYNA Key word user's manual Livermore Software Technology Corporation, <http://www.lstc.com>.

[15] F.R. Tuler, B.M. Butcher, A criterion for the time dependence of dynamic fracture, International Journal of Fracture. 4 (1968) 431-437.

DOI: 10.1007/bf00186808

[16] Technology L S. LS-DYNA[DB/CD].
