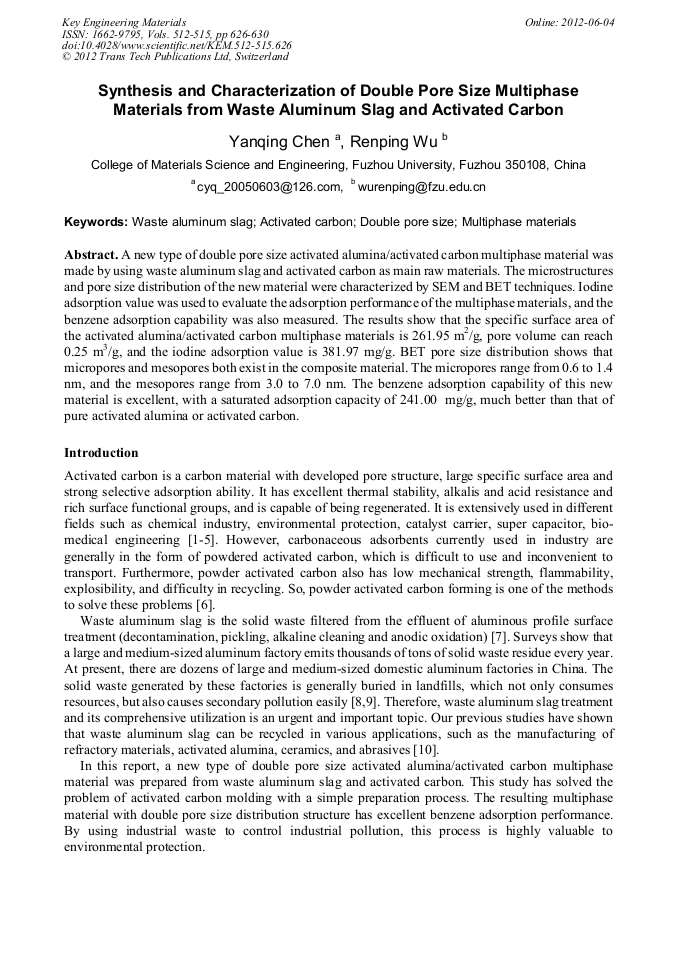

Synthesis and Characterization of Double Pore Size Multiphase Materials from Waste Aluminum Slag and Activated Carbon

Abstract:

A new type of double pore size activated alumina/activated carbon multiphase material was made by using waste aluminum slag and activated carbon as main raw materials. The microstructures and pore size distribution of the new material were characterized by SEM and BET techniques. Iodine adsorption value was used to evaluate the adsorption performance of the multiphase materials, and the benzene adsorption capability was also measured. The results show that the specific surface area of the activated alumina/activated carbon multiphase materials is 261.95m²/g, pore volume can reach 0.25m³/g, and the iodine adsorption value is 381.97mg/g. BET pore size distribution shows that micropores and mesopores both exist in the composite material. The micropores range from 0.6 to 1.4nm, and the mesopores range from 3.0 to 7.0nm. The benzene adsorption capability of this new material is excellent, with a saturated adsorption capacity of 241.00 mg/g, much better than pure activated alumina or activated carbon.

• Periodical: Key Engineering Materials (Volumes 512-515)
• Pages: 626-630
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.512-515.626
• Online since: June 2012
• Authors: Yan Qing Chen, Ren Ping Wu
• Keywords: Activated Carbon, Double Pore Size, Multiphase Materials, Waste Aluminum Slag

References

[1] Q. Gan, X. Zhou, B.Y. Zhao, K.A Hu, The advance of research on formed activated carbon preparation, Materials Review. 20 (2006) 61-63.

[2] Y.L. Wu, Y.S. Dong, P.H. Lin, C.L. Chu, X.B. Sheng, Research on preparation and performance of spherical formed activated carbon, Applied Chemical Industry. 38 (2009) 691-697.

[3] X.L. Yan, X.M. Liu, K. Qiao, Y.H. Wang, Research progress of preparation technique of activated carbon monolith, Chemical Industry and Engineering Progress. 27 (2008) 1868-1872.

[4] J.G. Li, K.X. Li, L.C. Ling, F. He, C.X. Lv, The preparation and methane adsorption of formed activated carbon, New Carbon Materials. 19 (2004) 114-118.

[5] V. Boonamnuayvitaya, S. Sae-ung and W. Tanthapanichakoon, Preparation of carbons from coffee residue for the adsorption of formaldehyde, Separation Purification Technology. 42 (2005) 159-168.

DOI: 10.1016/j.seppur.2004.07.007

[6] X.L. Zhang, X.L. Wang and K. Li, Preparation of formed activated carbon using PVA binder, Clean Coal Technology. 14 (2008) 23-25.

[7] R.P. Wu, Y. Yu and Y.Z. Ruan, Characterization of microstructures and properties of corundum grinding media synthesized from waste aluminum slag, Bulletin of the Chinese Ceramic Society. 25 (2006) 26-29.

[8] T.R. Zhang, R.P. Wu, Y.Z. Ruan, Y. Yu, Research and development of mat glaze with the waste slag in aluminum factory, Journal of Minjiang University. 25 (2005) 70-73.

[9] R.P. Wu, Y.Z. Ruan and Y. Yu, Characterization of Cordierite Synthesized from Aluminum Waste Slag, Journal of Synthetic Crystals. 36 (2007) 1091-1095.

[10] Y. Yu, Y.Z. Ruan, Q.M. Huang, M. Zhou, Y.H. Du, R.P. Wu, Polycrystalline structure of waste slag in aluminum factory at different calcining temperature, Chinese J. Struct. Chem. 22 (2003) 607-612.

[11] R.P. Wu, Y.Z. Ruan and Y. Yu, Specific surface area and pore structure of active alumina adsorbent synthesized from waste aluminum sludge and nitric acid, Bulletin of the Chinese Ceramic Society. 6 (2005) 46-49.

[12] Y.X. Li, T.S. Liu and J.F. Gao, Influence of baking conditions on preparing γ-Al2O3, Journal of North China institute of Technology. 25 (2004) 277-280.

[13] S. Biniak, G. Szymanski, J. Siedlewski, A. Swiatkowski, The characterization of activated carbons with oxygen and nitrogen surface groups, Carbon. 35 (1997) 1799-1810.

DOI: 10.1016/s0008-6223(97)00096-1

[14] J.G. Jia, C. Li, C.L. Zhu, C.Y. Xiao, D. Xu, X. Yan, C.H. Lang, Surface modification and adsorption property of activated carbon by HNO3, Carbon Techniques. 28 (2009) 11-15.

[15] L.D. Zhang, X.P. Zhao and Q. Ma, Study of the adsorption of benzene-containing off-gases on a modified active carbon, New Carbon Materials. 17 (2002) 41-44.
