The Study on the Ineffective Mechanism of Aluminum Alloy Spot Welding Electrode

Abstract:

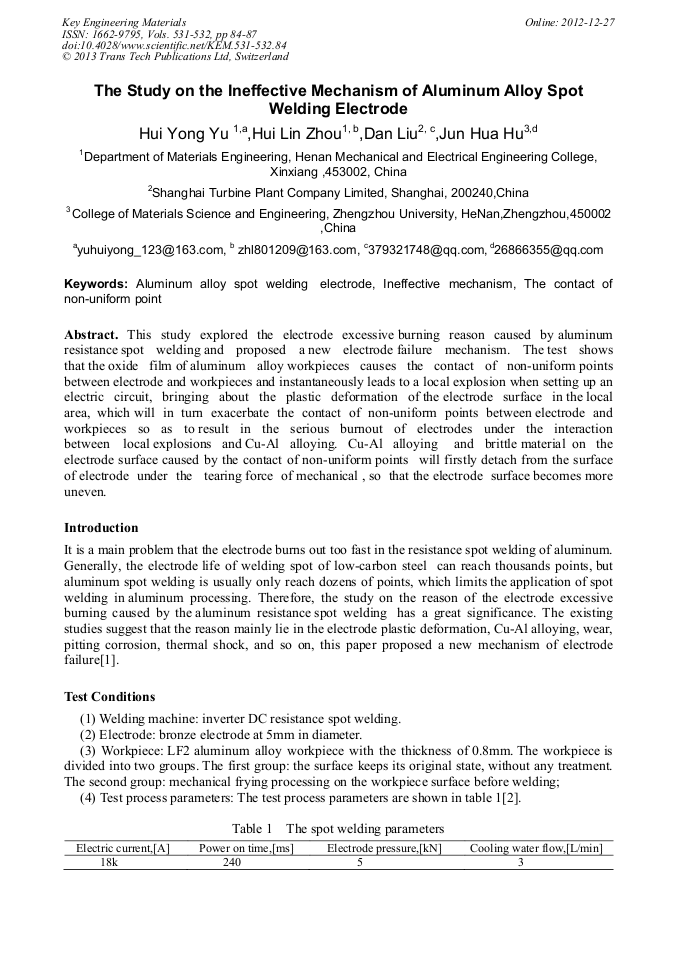

Article Preview

This study explored the electrode excessive burning reason caused by aluminum resistance spot welding and proposed a new electrode failure mechanism. The test shows that the oxide film of aluminum alloy workpieces causes the contact of non-uniform points between electrode and workpieces and instantaneously leads to a local explosion when setting up an electric circuit, bringing about the plastic deformation of the electrode surface in the local area, which will in turn exacerbate the contact of non-uniform points between electrode and workpieces so as to result in the serious burnout of electrodes under the interaction between local explosions and Cu-Al alloying. Cu-Al alloying and brittle material on the electrode surface caused by the contact of non-uniform points will firstly detach from the surface of electrode under the tearing force of mechanical , so that the electrode surface becomes more uneven.

Info:

Periodical:

Key Engineering Materials (Volumes 531-532)

Edited by:

Chunliang Zhang and Liangchi Zhang

Pages:

84-87

Citation:

H. Y. Yu et al., "The Study on the Ineffective Mechanism of Aluminum Alloy Spot Welding Electrode", Key Engineering Materials, Vols. 531-532, pp. 84-87, 2013

Online since:

December 2012

Export:

Price:

$38.00

[1] F.J. Cheng, J.R. Lian. Study on ignition loss mechanism of electrodes during resistance spot welding of aluminum alloys[J]. Ordnance Material Science and Engineering, 2003, 2: 26~28. (In Chinese).

[2] Y. Huang, D. Fan, and Q.H. Fan et al. Experimental Study on FBTIG Welding for Aluminium Alloy[J]. Welding & Joining, 2004, 10(3): 52~54. (In Chinese).

[3] D. Liu. The study on prolonging the electrode life of aluminum alloy spot welding[D]. Tinjin: Tinjin University, 2006 (In Chinese).

[4] Q. Sh. Li, Zh. L and Zh.W. Li et al. Research on maintaining service life technology for the electrode of Al-alloy resistance spot welding[J]. Electric Welding Machine, 2009, 7: 59~60 (In Chinese).

[5] Zh. Sh. Wu, P. Sh and Sh.S. Hu et al. Study on Cu/Al Alloying During Resistance Spot Welding of Aluminium Alloy[J]. China Mechanical Engineering, 2003, 41(16): I433~434 (In Chinese).
