Estimation of the Heat Transfer Conditions in a die Radius during Hot Stamping

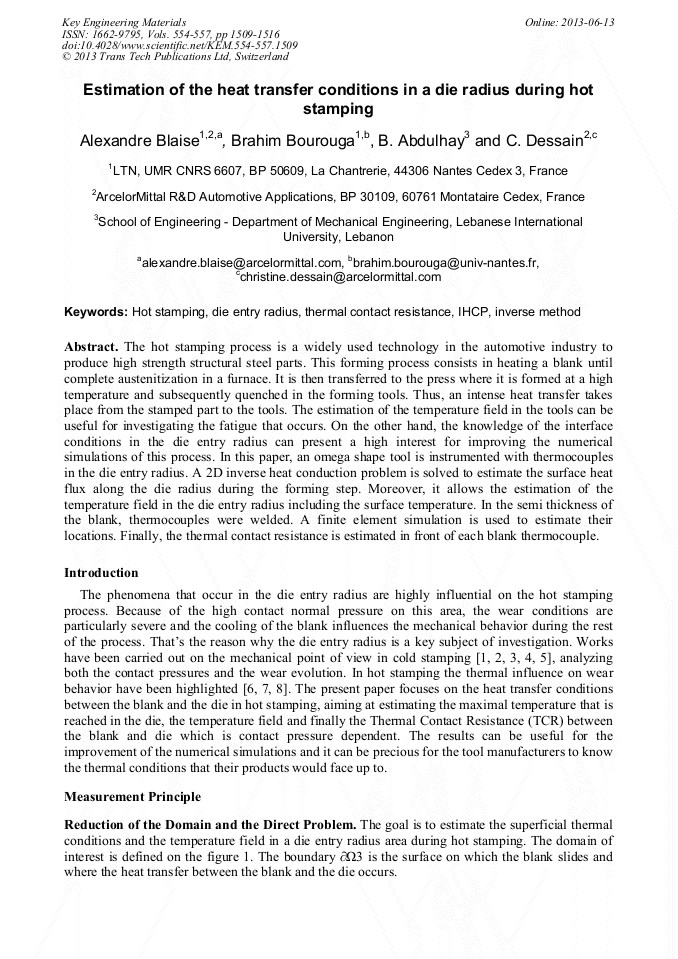

Abstract:

Established process in the automotive industry, the hot stamping process consists in heating a blank until complete austenitization in a furnace before transferring it to a press where it is formed at high temperature before being quenched by contact with the cold tools. During the forming step the hot blank slides on the die radius. Locally, the contact pressure can reach very high values. Due to this contact, heat transfer between the hot blank and the die can be significant. Using an omega die instrumented with eight thermocouples localized in the die radius, a 2D inverse method is used to estimate the heat flux that crosses the Blank/Die interface and the temperature field in the die radius and on the die surface. Four thermocouples are located in the blank thickness and a FE analysis is performed to estimate their positions as function of the time. The temperature in the thickness of the blank is considered as uniform according to Biot number value. This assumption is checked afterward. Thus, it is possible to estimate the sliding thermal contact resistance between the blank and the die as a function of time in front of each thermocouple of the blank. The estimation of the temperature field in the die can be useful for investigating the fatigue that occurs in the die. On the other hand, the knowledge of the interface condition in the die radius can present a high interest for improving the numerical simulations of this process.

• Periodical: Key Engineering Materials (Volumes 554-557)
• Pages: 1509-1516
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.554-557.1509
• Online since: June 2013
• Authors: Alexandre Blaise, Brahim Bourouga, B. Abdulhay, Christine Dessain
• Keywords: Die Entry Radius, Hot Stamping, IHCP, Inverse Method, Thermal Contact Resistance

References

[1] D. Schmoeckel D. Hortig. Analysis of local loads on the draw die profile with regard to wear using the fem and experimental investigations. Journal of Materials Processing Technology, 115, 2001.

DOI: 10.1016/s0924-0136(01)00757-9

[2] S.H. Masood X.Z. Wang. Investigation of die radius arc profile on wear behaviour in sheet metal processing of advanced high strength steels. Materials and Design, 32, 2011.

DOI: 10.1016/j.matdes.2010.11.005

[3] Wenyi Yanc Bernard F. Rolfed Michael P. Pereiraa, John L. Duncanb. Contact pressure evolution at the die radius in sheet metal stamping. Journal of Materials Processing Technology, 209, 2009.

[4] Bernard F. Rolfec Michael P. Pereiraa, Wenyi Yanb. Sliding distance, contact pressure and wear in sheet metal stamping. Wear, 268, 2010.

DOI: 10.1016/j.wear.2010.01.020

[5] L. Penazzi C. Levaillant C. Boher, D. Attaf. Wear behaviour on the radius portion of a die in deep-drawing: Identification, localisation and evolution of the surface damage. Wear, 259, 2005.

DOI: 10.1016/j.wear.2005.02.101

[6] B. Prakash J. Hardell. High-temperature friction and wear behavior of different tool steels during sliding against alsi coated high-strength steel. Tribology International, 41, 2008.

DOI: 10.1016/j.triboint.2007.07.013

[7] B. Prakash J. Hardell, E. Kassfeldt. High-temperature friction and wear behavior of different tool steels during sliding against alsi coated high- strength steel. Tribology International, 41, 2008.

DOI: 10.1016/j.triboint.2007.07.013

[8] L.Penazzi C.Dessain C. Boher, S.LeRoux. Experimental investigation of the tribological behavior and wear mechanisms of tool steel grades in hot stamping of a high-strength boron steel. Wear, 294, 2012.

DOI: 10.1016/j.wear.2012.07.001

[9] C. Dessain G. Brun J. Wilsius B. Abdulhay, B. Bourouga. Development of estimation procedure of contact heat transfer coefficient at the part-tool interface in hot stamping process. International Journal of Heat Transfer Engineering HTE, 32(6), August/September 2010.

DOI: 10.1080/01457632.2010.506362

[10] B. Abdul Hay B. Bourouga C. Dessain. Thermal contact resistance estimation at the blank/tool interface: experimental approach to simulate the blank cooling during the hot stamping process. International journal of material forming, march 2010.

DOI: 10.1007/s12289-010-0687-2
