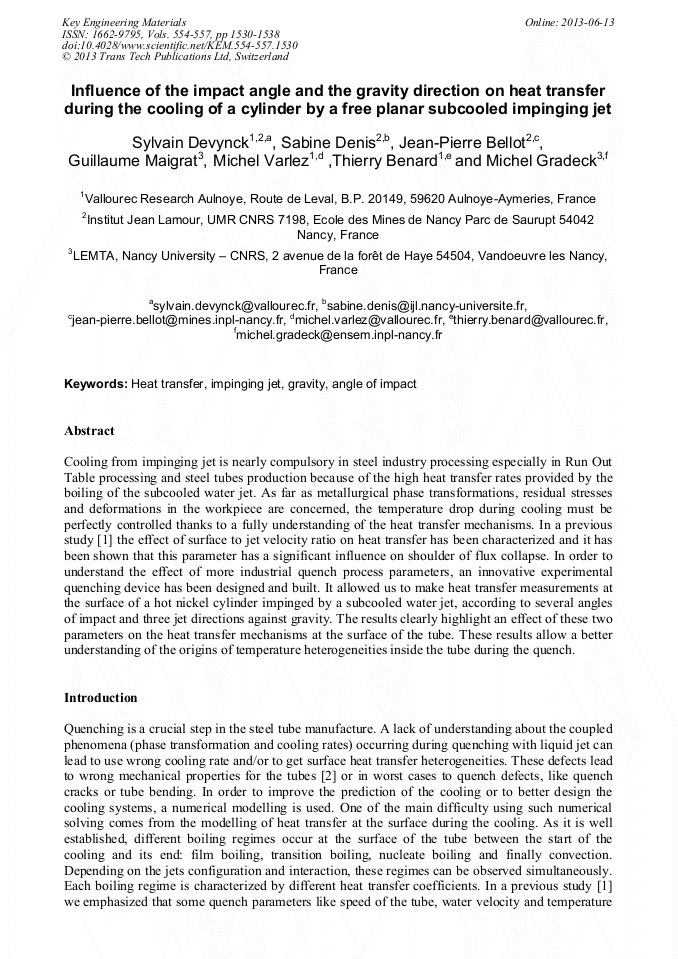

Influence of the Impact Angle and the Gravity Direction on Heat Transfer during the Cooling of a Cylinder by a Free Planar Subcooled Impinging Jet

Abstract:

Cooling from impinging jet is nearly compulsory in steel industry processing especially in Run Out Table processing and steel tubes production because of the high heat transfer rates provided by the boiling of the subcooled water jet. As far as metallurgical phase transformations, residual stresses and deformations in the workpiece are concerned, the temperature drop during cooling must be perfectly controlled thanks to a fully understanding of the heat transfer mechanisms. In a previous study [1] the effect of surface to jet velocity ratio on heat transfer has been characterized and it has been shown that this parameter has a significant influence on shoulder of flux collapse. In order to understand the effect of more industrial quench process parameters, an innovative experimental quenching device has been designed and built. It allowed us to make heat transfer measurements at the surface of a hot nickel cylinder impinged by a subcooled water jet, according to several angles of impact and three jet directions against gravity. The results clearly highlight an effect of these two parameters on the heat transfer mechanisms at the surface of the tube. These results allow a better understanding of the origins of temperature heterogeneities inside the tube during the quench.

• Periodical: Key Engineering Materials (Volumes 554-557)
• Pages: 1530-1538
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.554-557.1530
• Online since: June 2013
• Authors: Sylvain Devynck, Sabine Denis, Jean Pierre Bellot, Guillaume Maigrat, Michel Varlez, Thierry Benard, Michel Gradeck
• Keywords: Gravity, Heat Transfer, Impact Angle, Impinging Jet

References

[1] S.Devynck, M. Gradeck, J.P. Bellot, S. Denis, M. Varlez, T. Benard, Cooling of a rotating cylinder by a subcooled planar jet, 2012, Key Engineering Materials, 504-506, 1049

DOI: 10.4028/www.scientific.net/kem.504-506.1049

[2] S. Denis, Prévision des contraintes résiduelles induites par traitement thermique et thermochimique, La Revue de Métallurgie-CIT/ Sci et Génie des Mat (Fév. 1997) 157-176.

DOI: 10.1051/metal/199794020157

[3] H. Robidou, H. Auracher, P. Gardin, M. Lebouché, Controlled cooling of a hot plate with a water jet, Exp. Therm. Fluid Sci. 26(2-4) (2002) 123-129.

DOI: 10.1016/s0894-1777(02)00118-8

[4] S. Nukiyama, The maximum and the minimum values of the heat flux transmitted from metal to boiling water under atmospheric pressure, J. Japan Society of Mechanical Engineers, 37 (1934) 367-374.

DOI: 10.1299/jsmemagazine.37.206_367

[5] S. Ishigai, A. Nakanishi, T. Ochi, Boiling heat transfer for a plane water jet impinging on a hot surface, 6th International heat Transfer Conference, vol. 1, FB30, 1978, 445-450.

DOI: 10.1615/ihtc6.860

[6] M Gradeck, A Kouachi, F Volle, D. Maillet, M Lebouché, JL. Borean, Boiling curves in relation to quenching of a high temperature moving surface with liquid jet impingement, International Journal of Heat and Mass Transfer, Volume 52, 2009, Pages 1094-1104.

DOI: 10.1016/j.ijheatmasstransfer.2008.09.015

[7] F. Volle, D. Maillet, M. Gradeck, A. Kouachi, M. Lebouché, Practical application of inverse heat conduction for wall condition estimation on a rotating cylinder, Int. J. Heat Mass Transfer 52(1-2)(2009) 210-221.

DOI: 10.1016/j.ijheatmasstransfer.2008.05.025

[8] H. Leocadio, A.F.C. Silva, J.C. Passos, 2007, Analysis of the cooling effect of a water jet on a hot steel plate, Proceeding of 19th International Congress of Mechanical Engineering, Brasilia, DF

[9] M. Gradeck, A.Kouachi, A. Dani, D. Arnoult, J.L. Boréan, 2006, Experimental and numerical study of the hydraulical jump on an impinging jet on a moving surface, Exp. Therm. Fluid Sc., Vol. 30, pages 193-201.

DOI: 10.1016/j.expthermflusci.2005.05.006
