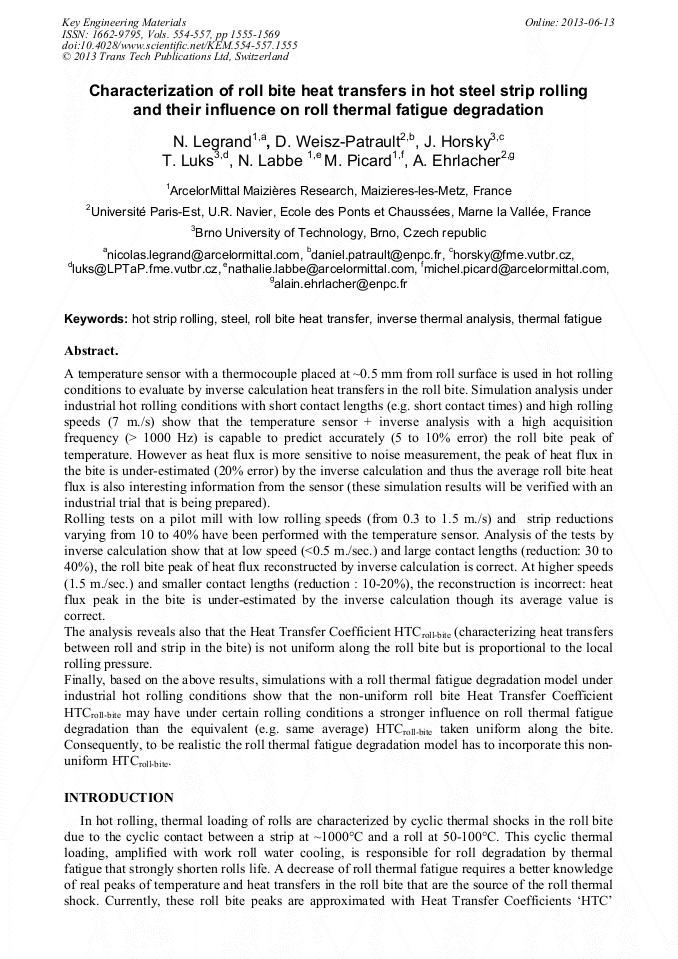

Characterization of Roll Bite Heat Transfers in Hot Steel Strip Rolling and their Influence on Roll Thermal Fatigue Degradation

Abstract:

A temperature sensor with a thermocouple placed at ~0.5 mm from roll surface is used in hot rolling conditions to evaluate by inverse calculation heat transfers in the roll bite. Simulation analysis in industrial hot rolling conditions with short contact lengths (e.g. short contact times) and high rolling speeds (7 m./sec.) show that the temperature sensor + inverse analysis with a high acquisition frequency (> 1000 Hz) is capable to predict with a good accuracy (5 to 10% error) the roll bite peak of temperature as well as the roll surface temperature evolution all around the roll rotation. However as heat flux is more sensitive to noise measurement, the peak of heat flux in the bite is strongly under-estimated (40% error) by the inverse calculation and thus only an average roll bite heat flux could be expected from the sensor (these simulation results will be verified with an industrial trial that is being prepared). Rolling tests on a pilot mill with low rolling speeds (from 0.3 to 1.5 m./sec.) and strip reductions varying from 10 to 40% have been performed with the temperature sensor. Analysis of the tests by inverse calculation show that at low speed (<0.5 m="" sec="" and="" large="" contact="" lengths="" reduction:="" 30="" to="" 40="" the="" roll="" bite="" peak="" of="" heat="" flux="" reconstructed="" by="" inverse="" calculation="" is="" correct="" at="" higher="" speeds="" 1="" 5="" smaller="" reduction="" :="" 10-20="" reconstruction="" incorrect:="" in="" under-estimated="" though="" its="" average="" value="" analysis="" reveals="" also="" that="" transfer="" coefficient="" htc="" sub="">roll-bite (characterizing heat transfers between roll and strip in the bite) is not uniform along the roll bite but is proportional to the local rolling pressure. Finally, based on the above results, simulations with a roll thermal fatigue degradation model in industrial hot rolling conditions show that the non uniform roll bite Heat Transfer Coefficient HTC_roll-bite may have in certain rolling conditions a stronger influence on roll thermal fatigue degradation than the equivalent (e.g. same average) HTC_roll-bite taken uniform along the bite. Consequently, to be realistic the roll thermal fatigue degradation model has to incorporate this non uniform HTC_roll-bite.

• Periodical: Key Engineering Materials (Volumes 554-557)
• Pages: 1555-1569
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.554-557.1555
• Online since: June 2013
• Authors: Nicolas Legrand, Daniel Weisz-Patrault, Jaroslav Horský, Tomáš Luks, Nathalie Labbe, Michel Picard, Alain Ehrlacher
• Keywords: Hot Strip Rolling, Inverse Thermal Analysis, Roll Bite Heat Transfer, Steel, Thermal Fatigue

References

[1] P.Kotrbacek, M. Raudensky, J. Horsky, M. Pohanka, Experimental study of heat transfer and heat flux by inverse analysis during steel strip rolling, Revue de metalurgie 103 (2006) 333-341.

DOI: 10.1051/metal:2006134

[2] D. Weisz-Patrault, A. Ehrlacher, N. Legrand, N. Labbe, J.Horsky, T.Luks. Experimental study of interfacial heat flux and surface temperature by inverse thermal analysis with thermocouple (fully embedded) during hot steel strip rolling. Advanced Materials Research. 452-453 (2012) 959-963

DOI: 10.4028/scientific5/amr.452-453.959

[3] D. Weisz-Patrault, A. Ehrlacher, N. Legrand, Evaluation of temperature field and heat flux by inverse analysis during steel strip rolling. International Journal of Heat and Mass Transfer 55 (2012) 629-641

DOI: 10.1016/j.ijheatmasstransfer.2011.10.048

[4] User's manual of Cylescale, roll and strip temperature evolution model – Arcelormittal internal report. M. Picard (2009)

[5] Analysis of roll bite heat transfers in hot steel strip rolling through roll temperature sensors and heat transfer models. N. Legrand, N. Labbe, D. Weisz-Patrault, A. Ehrlacher, J.Horsky, T.Luks. Key Engineering Materials 504-506 (2012) 1043-1048

DOI: 10.4028/www.scientific.net/kem.504-506.1043

[6] A tool to evaluate work roll damage due to thermal fatigue in the hot strip mill. E. Mathey, C. Cera, C. Brito-Ferreira, M. Mohammadi-Terhani, M. Picard, AIST Conference, May 5-8, 2008, Pittsburgh, Pa USA

[7] J.H. Hitchcock: rollneck bearings. Report of ASME (1935)
