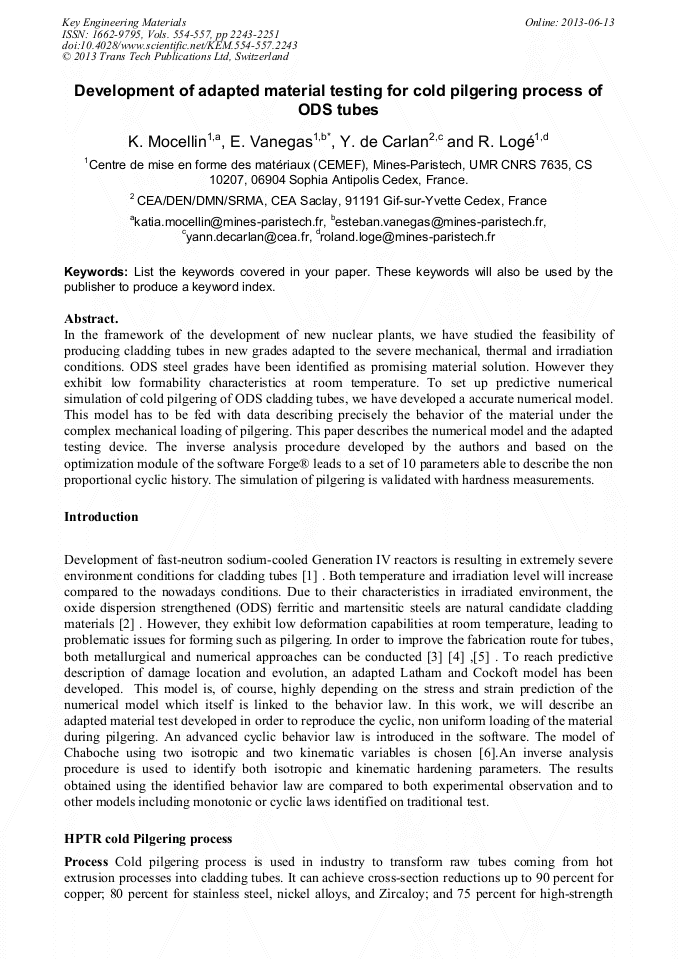

Development of Adapted Material Testing for Cold Pilgering Process of ODS Tubes

Abstract:

Development of fast-neutron sodium-cooled Generation IV reactors is resulting in extremely severe environment conditions for cladding tubes [1]. Both temperature and irradiation level will increase compared to the nowadays conditions. Due to their characteristics in irradiated environment, the oxide dispersion strengthened (ODS) ferritic and martensitic steels are natural candidate cladding materials[2]. However, they exhibit low deformation capabilities at room temperature, leading to problematic issues for forming such as pilgering. In order to improve the fabrication route for tubes, both metallurgical and numerical approaches can be conducted [3,4,5]. To reach predictive description of damage location and evolution, an adapated Latham and Cockoft model has been developed. This model is, of course, highly depending on the stress and strain prediction of the numerical model which itself is linked to the behavior law. In this work, we will describe an adapted material test developed in order to reproduce the cyclic, non uniform loading of the material during pilgering. An advanced cyclic beahvior law is introduced in the software. The model of Chaboche using 2 isotropic and 2 kinematic variables is chosen[6]. An inverse analysis procedure is used to identify both isotropic and kinematic hardening parameters. The results obtained using the identified behavior law are compared to both experimental observation and to other models including monotonic or cyclic laws identified on traditional test.

• Periodical: Key Engineering Materials (Volumes 554-557)
• Pages: 2243-2251
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.554-557.2243
• Online since: June 2013
• Authors: Katia Mocellin, Esteban Vanegas, Yann de Carlan, Roland E. Logé

References

[1] P. Dubuisson, Y. de Carlan, V. Garat, M. Blat, ODS Ferritic / Martensitic alloys for Sodium Fast Reactor fuel pin cladding, oral contribution to DIANA I workshop "Dispersion Strengthened steels for advanced nuclear applications", Aussois (France) April 4-8, 2011.

DOI: 10.1016/j.jnucmat.2011.10.037

[2] Y. de Carlan, J.-L. Bechade, P. Dubuisson, J.-L. Seran, P. Billot, A. Bougault, T. Cozzika, S. Doriot, D. Hamon, J. Henry, M. Ratti, N. Lochet, D. Nunes, P. Olier, T. Leblond, M. Mathon, CEA developments of new ferritic ODS alloys for nuclear applications, Journal of Nuclear Materials 386-388, (2009) 430 – 432.

DOI: 10.1016/j.jnucmat.2008.12.156

[3] J.-L. Aubin, P. Montmitonnet, S. Mulot, Zirconium alloy cold pilgering process control by modeling, in: Proceedings of the Conference on Zirconium in the Nuclear Industry, Toronto, Canada, 1999, ASTM STP 1354, ASTM, West Conshohocken, USA.

DOI: 10.1520/stp14312s

[4] L. Toualbi, P. Olier, Y. de Carlan, D. Bossu, E. Rouesne, R. Logé, Assessment of a new fabrication route for Fe-9Cr-1W ODS cladding tubes, Proceedings of DIANA I workshop "Dispersion Strengthened steels for advanced nuclear applications", Aussois (France) April 4-8, 2011.

DOI: 10.1016/j.jnucmat.2011.12.013

[5] S. Ukai, T. Narita, A. Alamo, P. Parmentier, Tube manufacturing trials by different routes in 9CrW-ODS martensitic steels, Journal of Nuclear Materials 329-333, Part A, (2004) 356 – 361

DOI: 10.1016/j.jnucmat.2004.04.082

[6] J.-L. Chaboche, International Journal of Solids and Structures, Vol. 34, N°18, (1997) 2239-2354

[7] O. Strehlau, www.thefabricator.com/article/tubepipeproduction/introducing-coldpilger-mill-technology, Introducing cold pilger mill technology, 2006.

[8] M. Inoue, T. Kaito, S. Ohtsuka, Research and development of oxide dispersion strengthened ferritic steels for sodium cooled fast breeder reactor fuels, Materials for Generation IV Nuclear Reactors, Cargese, Corsica, (2007)

DOI: 10.1007/978-1-4020-8422-5_16

[9] A. Nerino, M. Deaver, C. Nagele, J. Reinhart, HPTR's past, present, and future, The Tube and Pipe Journal, 20 - 24, (2011)

[10] E. Vanegas, K. Mocellin, R. Logé, Identification of cyclic and anisotropic behaviour of ODS steels tubes, ICM11, Procedia Engineering 2011, 10, 1208-1213, Como, Italy

DOI: 10.1016/j.proeng.2011.04.201

[11] R. Ducloux, L. Fourment, S. Marie, D. Monnereau, Automatic Optimization, Techniques Applied to a Large Range of Industrial Test Cases, International Journal of Material Forming 3, pp.53-56, (2010)

DOI: 10.1007/s12289-010-0705-4

[12] P.E. Armstrong, J.E. Hockett, O.D. Sherby, Large strain multidirectional deformation of 1100 aluminum at 300 K, Journal of Mechanics Physics of Solids 30, pp.37-58, (1982)

DOI: 10.1016/0022-5096(82)90012-6

[13] P. Huml, R. Fogelholm, Simulation model of cold pilgering, Journal of Materials Processing Technology 42, pp.167-173, (1994)

DOI: 10.1016/0924-0136(94)90136-8
