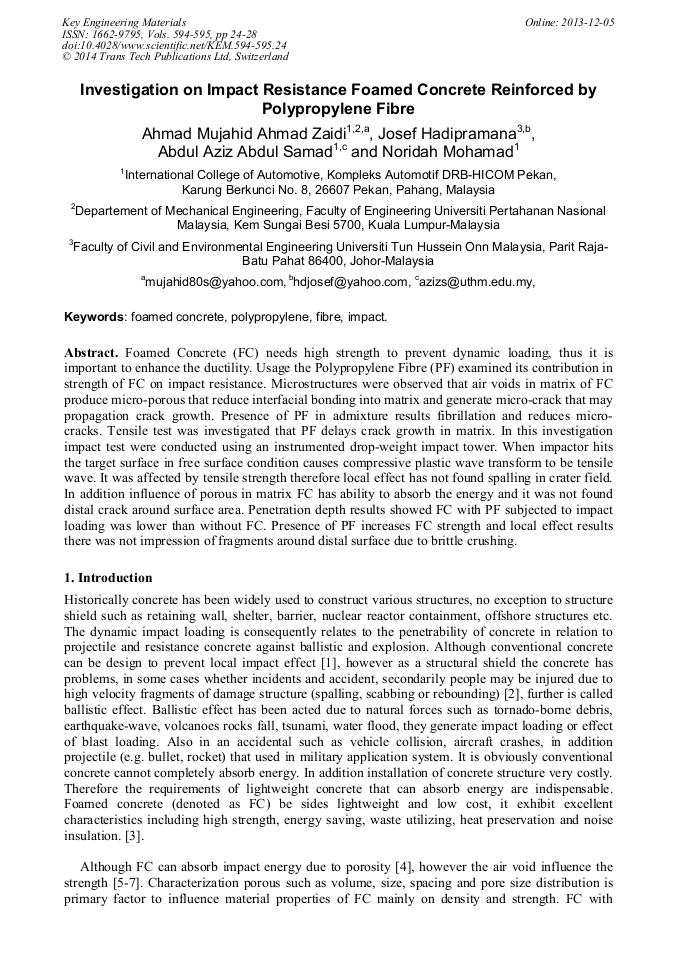

Investigation on Impact Resistance Foamed Concrete Reinforced by Polypropylene Fibre

Abstract:

Foamed Concrete (FC) needs high strength to prevent dynamic loading, thus it is important to enhance the ductility. Usage the Polypropylene Fibre (PF) examined its contribution in strength of FC on impact resistance. Microstructures were observed that air voids in matrix of FC produce micro-porous that reduce interfacial bonding into matrix and generate micro-crack that may propagation crack growth. Presence of PF in admixture results fibrillation and reduces micro-cracks. Tensile test was investigated that PF delays crack growth in matrix. In this investigation impact test were conducted using an instrumented drop-weight impact tower. When impactor hits the target surface in free surface condition causes compressive plastic wave transform to be tensile wave. It was affected by tensile strength therefore local effect has not found spalling in crater field. In addition influence of porous in matrix FC has ability to absorb the energy and it was not found distal crack around surface area. Penetration depth results showed FC with PF subjected to impact loading was lower than without FC. Presence of PF increases FC strength and local effect results there was not impression of fragments around distal surface due to brittle crushing.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 24-28
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.24
• Online since: December 2013
• Authors: Ahmad Zaidi Ahmad Mujahid, Josef Hadipramana, Abdul Aziz Abdul Samad, Noridah Mohamad
• Keywords: Fiber, Foamed Concrete, Impact, Polypropylene (PP)

References

[1] Q. M. Li, S. R. Reid, H. M. Wen, A. R. Telford, International Journal of Impact Engineering. Vol. 32 (2005), pp.224-284.

[2] M. Beppu, K. Miwa, M. Itoh, M. Katayama, T. Ohno, International Journal of Impact Engineering. Vol. 35 (2008), pp.1419-1426.

DOI: 10.1016/j.ijimpeng.2008.07.021

[3] M. R. Jones, A. McCarthy, Behviour and assesment of Foamed Concrete for Concrtuction Applications, in: R. K. Dhir, M. D. Newlands, A. McCarthy (Eds. ), Use of Foam Concrete in Construction, Thomas Telford, International Concference of University of Dundee, Scotland, UK. (2005).

DOI: 10.1680/uofcic.34068

[4] A. Z. A. Mujahid, Q.M. Li, Structure and Building, Vol. 162 (2009), pp.77-85.

[5] E. K. K. Nambiar, K. Ramamurthy, Cement and Concrete Research . Vol. 37 (2007), pp.221-230.

[6] E. P. Kearsley, P. J. Wainwright, Cement and Concrete Research. Vol. 32 (2002), pp.233-239.

[7] J. H. Pramana, A. A. A. Samad, A. M. A. Zaidi, F. V. Riza, European Journal Scientific Research. Vol. 44 (2010), pp.285-299.

[8] A. Just, B. Middendorf, Materials Characterization. Vol. 60 (2009), pp.741-748.

[9] A. N. Dancygier, D. Z. Yankelevsky, International Journal of Impact Engineering. Vol. 18 (1996), pp.583-599.

[10] J. Hadipramana, A. A. A. Samad, A. M. A. Zaidi, N. Mohammad, Wirdawati, Advanced Materials Research. Vol. 488-489 (2012), pp.253-257.

DOI: 10.4028/www.scientific.net/amr.488-489.253

[11] S. Furlan Jr, J. o. B. de Hanai, Cement and Concrete Composites. Vol. 19 (1997), pp.359-366.

[12] S. Kakooei, H. M. Akil, M. Jamshidi, J. Rouhi, Construction and Building Materials. Vol. 27 (2011), pp.73-77.

[13] L. J. Gibson, M. F. Ashby, Cellular Solids Structure and Properties, Cambridge University Press, (1997), in press.

[14] G. a. Y. Lu, T., Energy Absorption of Structures and Materials, in: Woodhead Publishing Limited, Abington Cambridge, England, (2003), in press.

[15] J. Hadipramana, A. A. A. Samad, A. M. A. Zaidi, N. Mohamad, N. Ali, Advanced Materials Research. Vol. 626 (2013), pp.769-775.

[16] BS1881, (1983).

[17] G. Hughes, Nuclear Engineering and Design. Vol. 77 (1984), pp.23-35.

[18] J. D. Riera, Nuclear Engineering and Design. Vol. 115 (1989), pp.121-131.

[19] D. J. Frew, M. J. Forrestal, J. D. Cargile, International Journal of Impact Engineering. Vol. 32 (2006), pp.1584-1594.

[20] Q. M. Li, S. R. Reid, A. M. Ahmad-Zaidi, Nuclear Engineering and Design. Vol. 236 (2006), pp.1140-1148.

[21] M. Nili, V. Afroughsabet, Construction and Building Materials. Vol. 24 (2009), pp.927-933.

[22] G. D. Manolis, P. J. Gareis, A. D. Tsonos, J. A. Neal, Cement and Concrete Composites. Vol. 19 (1997), pp.341-349.

DOI: 10.1016/s0958-9465(97)00030-9

[23] H. Mazaheripour, S. Ghanbarpour, S. H. Mirmoradi, I. Hosseinpour, Construction and Building Materials. Vol. 25 (2011), pp.351-358.

DOI: 10.1016/j.conbuildmat.2010.06.018

[24] A. M. Alhozaimy, P. Soroushian, F. Mirza, Cement and Concrete Composites. Vol. 18 (1996), pp.85-92.

DOI: 10.1016/0958-9465(95)00003-8

[25] S. Kakooei, H. M. Akil, M. Jamshidi, J. Rouhi, Construction and Building Materials. Vol. 27 (2012), pp.73-77.

DOI: 10.1016/j.conbuildmat.2011.08.015

[26] A. Bentur, S. Mindess, G. Vondran, International Journal of Cement Composites and Lightweight Concrete. Vol. 11 (1989), pp.153-158.

DOI: 10.1016/0262-5075(89)90087-0

[27] N. Narayanan, K. Ramamurthy, Cement and Concrete Composites. Vol. 22 (2000), pp.321-329.

[28] A. Behnood, M. Ghandehari, Fire Safety Journal. Vol. 44 (2009), pp.1015-1022.

[29] M. Ali, A. Qamhiyah, D. Flugrad, M. Shakor, Structure Under Shock and Impact IX. Vol. 87 (2006), pp.413-429.

[30] M. R. Jones, L. Zheng, ICE Publishing. Vol. 65 (2012), p.209 –219.
