Si/SiC-Based Layer Deposited on Boron Carbide Particles via CVD

Abstract:

The application of B₄C as structural materials has been restricted largely because of its poor sinter-ability. Compared with pressure-less and hot pressing methods, sintering the B₄C via the reaction-bonded boron carbide (RBBC) can to great extent circumvent such problem, which can even be conducted at low temperature, when Si/Si-based alloy was used as binding phase. However molten Si/Si-based alloy infiltrated into performs of bare B₄C powders can strongly react with and significantly consume B₄C particles based on molten infiltration reaction method. The present study aims to encapsulate B₄C particles with a protective layer to block off its contact with molten Si/ Si-based alloy via chemical vapor deposition (CVD) method in CH₃SiCl₃(MTS)-H₂-Ar system at low temperature (900-1100 °C) under atmospheric pressure. The phase composition and surface morphology of encapsulated B₄C particles were studied using X-ray diffraction (XRD) , scanning electron microscopy (SEM) plus energy dispersive spectrometer (EDS), respectively. It was found that the deposition temperatures have a significant effect on microstructure and composition of deposited coating. The studies on surface morphology revealed that spine-like crystals, nodular growth, island structure and whiskers can be deposited onto the surface of boron carbide particles. When deposited at 900-1000 °C,the coatings is Si + SiC co-deposition, while pure SiC coatings form only at as high deposition temperature at 1050 °Cand 1100 °C.

You might also be interested in these eBooks

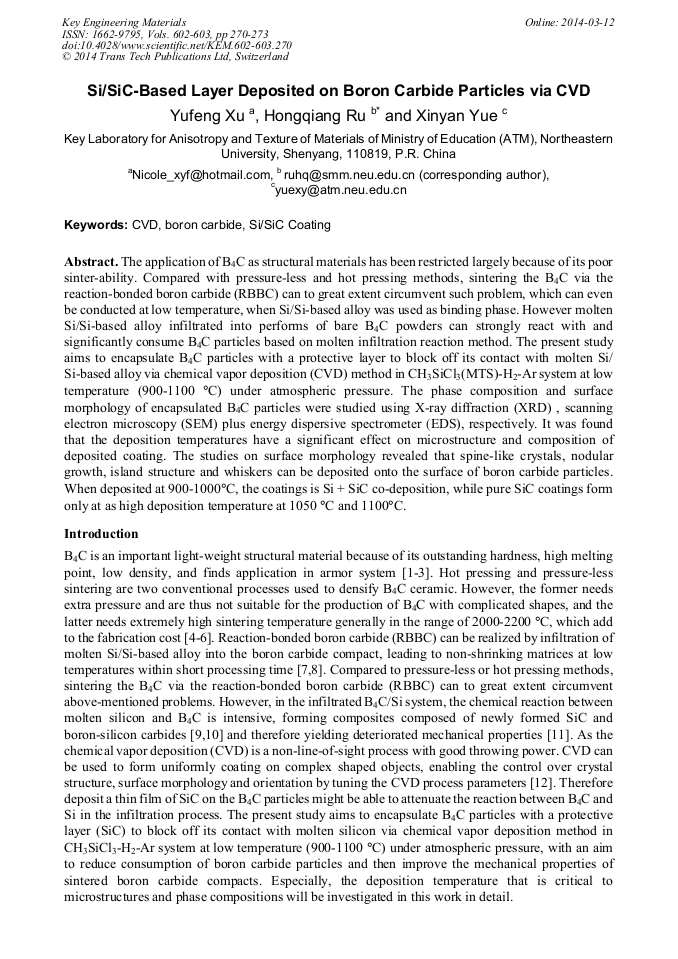

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 602-603)

Pages:

270-273

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.602-603.270

Citation:

Cite this paper

Online since:

March 2014

Authors:

Yu Feng Xu, Hong Qiang Ru*, Xin Yan Yue

Keywords:

Boron Carbide, CVD, Si/SiC Coating

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A.K. Suri, C. Subramanian, J.K. Sonber, T.S.R. Ch. Murthy, Synthesis and consolidation of boron carbide: a review, Int. Mater. Rev. 55 (2010) 4-40.

DOI: 10.1179/095066009x12506721665211

Google Scholar

[2] J.P. Deepa, V.G. Resmi, T.P.D. Rajan, C. Pavithran, B.C. Pai, Studies on the inﬂuence of surface pre-treatments on electroless copper coating of boron carbide particles, Appl. surf. Sci. 257 (2011) 7466-7474.

DOI: 10.1016/j.apsusc.2011.03.042

Google Scholar

[3] K. Lu, X.J. Zhu, K. Nagarathnam, Nickel-boron nanolayer-coated boron carbide pressureless sintering, J. Am. Ceram. Soc. 92 (2009) 1500-1505.

DOI: 10.1111/j.1551-2916.2009.02926.x

Google Scholar

[4] H. Miyazaki, Y. Zhou, H. Hyuga, Y. Yoshizawa, T. Kumazawa, Microstructure of boron carbide pressure-less sintered in an Ar atmosphere containing gaseous metal species, J. Eur. Ceram. Soc. 30 (2010) 999-1005.

DOI: 10.1016/j.jeurceramsoc.2009.10.015

Google Scholar

[5] A.J. Li, Y.H. Zhen, Q. Yin, L.P. Ma, Y.S. Yin, Microstructure and properties of (SiC, TiB2)/B4C composites by reaction hot pressing, Ceram. Int. 32 (2006) 849-856.

DOI: 10.1016/j.ceramint.2005.05.022

Google Scholar

[6] J.E. Zorzi, C.A. Perottoni, J.A.H. Da Jornada, Hardness and wear resistance of B4C ceramics prepared with several additives, Mater. Lett. 59 (2005) 2932-2935.

DOI: 10.1016/j.matlet.2005.04.047

Google Scholar

[7] D. Mallick, T.K. Kayal, J. Ghosh, O.P. Chakrabarti, S. Biswas, H.S. Maiti., Development of multi-phase B-Si-C ceramic composite by reaction sintering, Ceram. Int. 35 (2009) 1667-1669.

DOI: 10.1016/j.ceramint.2008.07.015

Google Scholar

[8] S . Hayun, Frage. N, M.P. Dariel, Dynamic response of B4C–SiC ceramic composites, In Ceramic Transactions, Ceramic Armor and Armor Systems II, ed. E. Medvedovski. American Ceramic Society, Baltimore, MD, USA. (2006) 147-156.

DOI: 10.1002/9781118408100.ch13

Google Scholar

[9] S. Hayun, Frage. N, M. P Dariel, The morphology of ceramic phases in BxC–SiC–Si inﬁltrated composites, J. Solid State Chem. 179 (2006) 2875-2879.

DOI: 10.1016/j.jssc.2006.01.031

Google Scholar

[10] S. Hayun, A. Weizmann, M.P. Dariel, N. Frage, Microstructural evolution during the infiltration of boron carbide with molten silicon, J. Eur. Ceram. Soc. 30 (2010) 1007-1014.

DOI: 10.1016/j.jeurceramsoc.2009.09.021

Google Scholar

[11] S. Hayun, D. Rittel, N. Frage, M.P. Dariel. Static and dynamic mechanical properties of infiltrated B4C-Si composites, Mater. Sci. Eng. A. 487 (2008) 405-409.

DOI: 10.1016/j.msea.2007.11.062

Google Scholar

[12] K.L. Choy, Chemical vapor deposition of coatings, Prog. Mater. Sci. 48 (2003) 57-170.

Google Scholar

[13] F. Loumagne, F. Langlais, R. Naslain, Reaction mechanisms of the chemical vapor deposition of SiC-based ceramics from CH3SiCl3/H2 gas precursor, J. Cryst. Growth 155 (1995) 205-213.

DOI: 10.1016/0022-0248(95)00181-6

Google Scholar
