Wetting Behaviors of Nickel-Based Alloys on Sintered Silicon Carbide Ceramics

Abstract:

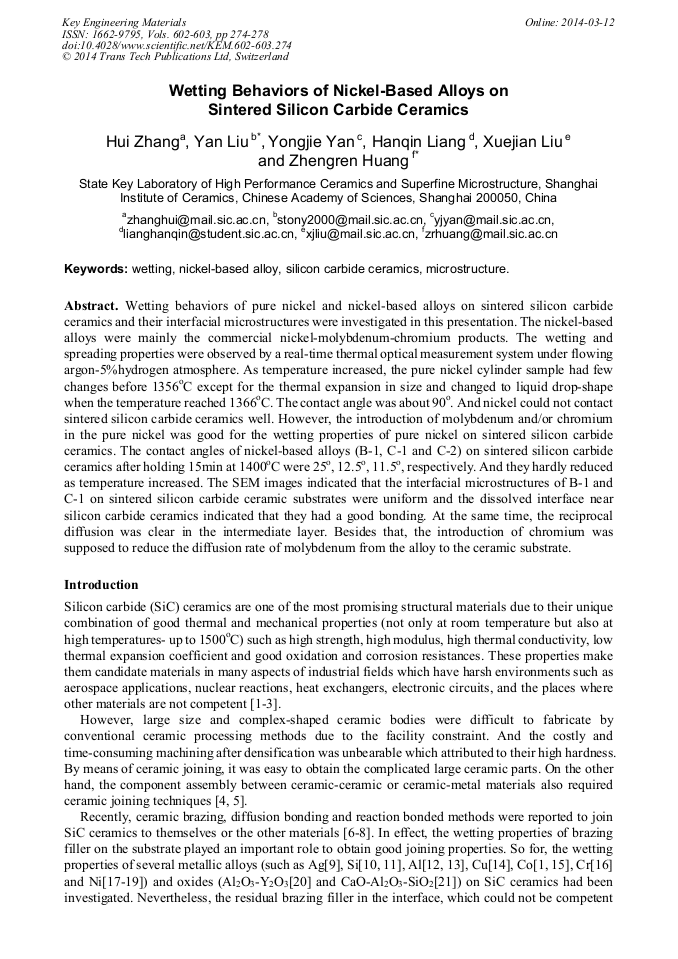

Wetting behaviors of pure nickel and nickel-based alloys on sintered silicon carbide ceramics and their interfacial microstructures were investigated in this presentation. The nickel-based alloys were mainly the commercial nickel-molybdenum-chromium products. The wetting and spreading properties were observed by a real-time thermal optical measurement system under flowing argon-5%hydrogen atmosphere. As temperature increased, the pure nickel cylinder sample had few changes before 1356°C except for the thermal expansion in size and changed to liquid drop-shape when the temperature reached 1366°C. The contact angle was about 90^o. And nickel could not contact sintered silicon carbide ceramics well. However, the introduction of molybdenum and/or chromium in the pure nickel was good for the wetting properties of pure nickel on sintered silicon carbide ceramics. The contact angles of nickel-based alloys (B-1, C-1 and C-2) on sintered silicon carbide ceramics after holding 15min at 1400°C were 25^o, 12.5^o, 11.5^o, respectively. And they hardly reduced as temperature increased. The SEM images indicated that the interfacial microstructures of B-1 and C-1 on sintered silicon carbide ceramic substrates were uniform and the dissolved interface near silicon carbide ceramics indicated that they had a good bonding. At the same time, the reciprocal diffusion was clear in the intermediate layer. Besides that, the introduction of chromium was supposed to reduce the diffusion rate of molybdenum from the alloy to the ceramic substrate.

• Periodical: Key Engineering Materials (Volumes 602-603)
• Pages: 274-278
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.602-603.274
• Online since: March 2014
• Authors: Hui Zhang*, Yan Liu, Yong Jie Yan, Han Qin Liang, Xue Jian Liu, Zheng Ren Huang
• Keywords: Microstructure, Nickel-Based Alloy, Silicon Carbide Ceramics, Wetting

References

[1] H.P. Xiong, X.H. Li, W. Mao, Y.Y. Cheng, Wetting behavior of Co based active brazing alloys on SiC and the interfacial reactions, Mater. Lett. 57 (2003) 3417-3421.

DOI: 10.1016/s0167-577x(03)00087-9

[2] C. Rado, S. Kalogeropoulou, N. Eustathopoulos, Wetting and bonding of Ni-Si alloys on silicon carbide, Acta Mater. 47 (1999) 13.

DOI: 10.1016/s1359-6454(98)00374-7

[3] L.L. Snead, T. Nozawa, M. Ferraris, Y. Katoh, R. Shinavski, M. Sawan, Silicon carbide composites as fusion power reactor structural materials, J. Nucl. Mater. 417 (2011) 330-339.

DOI: 10.1016/j.jnucmat.2011.03.005

[4] M. Singh, M.C. Halbig, Bonding and integration of silicon carbide based materials for multifunctional applications, in: K. Komeya, Y. Matsuo, T. Goto (Eds. ), Innovation in Ceramics Science and Engineering, Trans Tech Publications Ltd, Stafa-Zurich, 2007, pp.201-206.

[5] Y. Liu, Z.R. Huang, X.J. Liu, Joining of sintered silicon carbide using ternary Ag-Cu-Ti active brazing alloy, Ceram. Int. 35 (2009) 3479-3484.

DOI: 10.1016/j.ceramint.2009.03.016

[6] A. Preston, G. Mueller, Bonding SiC to SiC using a sodium silicate solution, Int. J. Appl. Ceram. Technol. 9 (2012) 8.

DOI: 10.1111/j.1744-7402.2011.02644.x

[7] J.K. Boadi, T. Yano, T. Iseki, Brazing of pressureless-sintered SiC using Ag-Cu-Ti alloy, J. Mater. Sci. 22 (1987) 4.

DOI: 10.1007/bf01082127

[8] Z.H. Luo, D.L. Jiang, J.X. Zhang, Q.L. Lin, Z.M. Chen, Z.R. Huang, Development of SiC-SiC joint by reaction bonding method using SiC/C tapes as the interlayer, J. Euro. Ceram. Soc. 32 (2012) 3819-3824.

DOI: 10.1016/j.jeurceramsoc.2012.04.049

[9] J.G. Li, Wettability of silicon-carbide by liquid silver and binary silver silicon alloy, Mater. Lett. 18 (1994) 291-298.

DOI: 10.1016/0167-577x(94)90010-8

[10] B. Drevet, N. Eustathopoulos, Wetting of ceramics by molten silicon and silicon alloys: a review, J. Mater. Sci. 47 (2012) 8247-8260.

DOI: 10.1007/s10853-012-6663-0

[11] P. Nikolopoulos, S. Agathopoulos, G.N. Angelopoulos, A. Naoumidis, H. Grubmeier, Wettability and interfacial energies in SiC-liquid metal systems, J. Mater. Sci. 27 (1992) 139-145.

DOI: 10.1007/bf02403656

[12] J. Hashim, L. Looney, M.S.J. Hashmi, The wettability of SiC particles by molten aluminium alloy, J. Mater. Process. Tech. 119 (2001) 324-328.

DOI: 10.1016/s0924-0136(01)00975-x

[13] A.C. Ferro, B. Derby, Wetting behavior in the Al-Si/SiC system-interface reactions and solubility effects, Acta Metall. Mater. 43 (1995) 3061-3073.

DOI: 10.1016/0956-7151(95)00014-m

[14] V. Martinez, S. Ordonez, F. Castro, L. Olivares, J. Marin, Wetting of silicon carbide by copper alloys, J. Mater. Sci. 38 (2003) 4047-4054.

[15] H.P. Xiong, B. Chen, Y.S. Kang, W. Mao, A. Kawasaki, H. Okamura, R. Watanabe, Wettability of Co-V, and PdNi-Cr-V system alloys on SiC ceramic and interfacial reactions, Scripta Mater. 56 (2007) 173-176.

DOI: 10.1016/j.scriptamat.2006.08.067

[16] P. Xiao, B. Derby, Wetting of silicon carbide by chromium containing alloys, Acta Mater. 46 (1998) 9.

DOI: 10.1016/s1359-6454(98)00037-8

[17] S.J. Li, Y. Zhou, H.P. Duan, Wettability and interfacial reaction in SiC/Ni plus Ti system, J. Mater. Sci. 37 (2002) 2575-2579.

[18] Y.W. Mao, D. Mombello, C. Baroni, Wettability of Ni-Cr filler on SiC ceramic and interfacial reactions for the SiC/Ni-51Cr system, Scripta Mater. 64 (2011) 1087-1090.

DOI: 10.1016/j.scriptamat.2011.02.027

[19] G.W. Liu, F. Valenza, M.L. Muolo, G.J. Qiao, A. Passerone, Wetting and interfacial behavior of Ni-Si alloy on different substrates, J. Mater. Sci. 44 (2009) 5990-5997.

DOI: 10.1007/s10853-009-3858-0

[20] S.P. Taguchi, F.V. Motta, R.M. Balestra, S. Ribeiro, Wetting behaviour of SiC ceramics-Part II -Y2O3/Al2O3 and Sm2O3/Al2O3, Mater. Lett. 58 (2004) 2810-2814.

DOI: 10.1016/j.matlet.2004.05.004

[21] O. Mailliart, V. Chaumat, F. Hodaj, Wetting and interfacial interactions in the CaO-Al2O3-SiO2/silicon carbide system, J. Mater. Sci. 45 (2010) 2126-2132.

DOI: 10.1007/s10853-009-3950-5
