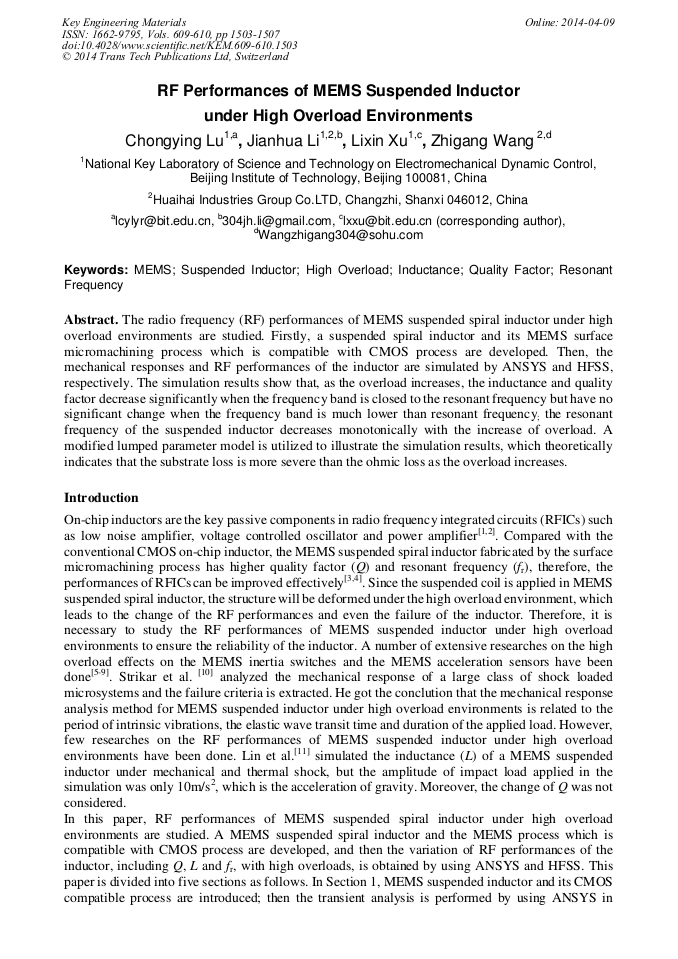

RF Performances of MEMS Suspended Inductor under High Overload Environments

Abstract:

The radio frequency (RF) performances of MEMS suspended spiral inductor under high overload environments are studied. Firstly, a suspended spiral inductor and its MEMS surface micromachining process which is compatible with CMOS process are developed. Then, the mechanical responses and RF performances of the inductor are simulated by ANSYS and HFSS, respectively. The simulation results show that, as the overload increases, the inductance and quality factor decrease significantly when the frequency band is closed to the resonant frequency but have no significant change when the frequency band is much lower than resonant frequency_; the resonant frequency of the suspended inductor decreases monotonically with the increase of overload. A modified lumped parameter model is utilized to illustrate the simulation results, which theoretically indicates that the substrate loss is more severe than the ohmic loss as the overload increases.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 1503-1507
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.1503
• Online since: April 2014
• Authors: Chong Ying Lu, Jian Hua Li, Li Xin Xu*, Zhi Gang Wang
• Keywords: High Overload, Inductance, MEMS, Quality Factor, Resonant Frequency, Suspended Inductor

References

[1] R. Ben Yishay, S. Stolyarova, S. Shapira, M. Musiya, D. Kryger, Y. Shiloh and Y. Nemirovsky, A CMOS low noise amplifier with integrated front-side micromachined inductor, J. Microelectron. 42(2011) 754-757.

DOI: 10.1016/j.mejo.2011.01.011

[2] H. Lakdawala, X. Zhu, H. Luo, S. Santhanam, L. R. Carley and G. K. Fedder, Micromachined high-Q inductors in a 0. 18μm copper interconnect low-K dielectric CMOS process, IEEE J. Solid-State Circuits. 37(2002)394-403.

DOI: 10.1109/4.987092

[3] X. L. Zhao, X. N. Wang, Y. Zhou and B. C. Cai, Fabrication and performance of double layer suspended spiral inductor, Micronanoelectron. Technol. 42(2005)30-32. (in chinese).

[4] J. B. Yoon, Y. S. Choi, B. I. Kim, Y. Eo and E. Yoon, CMOS-compatible surface-micromachined suspended-spiral inductors for multi-GHz silicon RF Ics, IEEE Electron Devices Let. 23(2002) 591-593.

DOI: 10.1109/led.2002.803767

[5] J. De Coster, H. A. C. Tilmans, J. T. M. van Beek, Th. G. S. M. Ryks and R. Puers, The influence of mechanical shock on the operation of electrostatically driven RF-MEMS switches, J. Micromech. Microeng. 14(2004)S49-S50.

DOI: 10.1088/0960-1317/14/9/008

[6] X. J. He, Y. Wang, Q. Wu and T. L. Gui, The nonlinear dynamic response of microbeam of MEMS capacitive switch under mechanical shock, Analog Integr. Circuits Signal Process. 72(2012) 19-26.

DOI: 10.1007/s10470-011-9815-2

[7] R. Kuells, S. Nau, M. Salk and K. Thoma, Novel piezoresistive high-g accelerometer geometry with very high sensitivity-bandwidth product, Sens. Actuators, A Phys. 182(2012)41-48.

DOI: 10.1016/j.sna.2012.05.014

[8] M. I. Ibrahim, M. I. Younis, F. Alsaleem, An investigation into the effects of electrostatic and squeeze-film non-linearities on the shock spectrum of microstructures, Int. J. Non-linear Mech. 45(2010) 756-765.

DOI: 10.1016/j.ijnonlinmec.2010.05.005

[9] J. Tang, R. Zhao, Y. B. Shi and J. Liu, Failure analysis of the MEMS ultra high measure range accelerometer structure under high impact environment, Chin. J. Sens. Actuators. 25(2012)483-486.

[10] V. T. Srikar, S. D. Senturia, The reliability of microelectromechanical systems(MEMS) in shock environments, J. Microelectromech. Syst. 11(2002) 206-214.

DOI: 10.1109/jmems.2002.1007399

[11] Jr-Wei Lin, C. C. Chen, Yu-Ting Cheng, A robust high-Q micromachined RF inductor for RFIC applications, IEEE Trans. Electron Devices. 52(2005) 1489-1496.

DOI: 10.1109/ted.2005.850612

[12] H. M. Greenhouse, Design of planar rectangular microelectronic inductors, IEEE Trans. Parts Hybrids Packag. 10(1974)101-109.

DOI: 10.1109/tphp.1974.1134841

[13] H. R. Jiang, Y. Wang, Jer-Liang A. Yeh and N. C. Tien, On-chip spiral inductors suspended over deep copper-lined cavities. IEEE Trans. Microw. Theory Tech. 48(2000)2415-2423.

DOI: 10.1109/22.898992

[14] C. P. Yue, S. S. Wong, Physical modeling of spiral inductors on silicon, IEEE Trans. Electron Devices. 47(2000) 560-568.

DOI: 10.1109/16.824729

[15] M. Ozgur, M. E. Zaghloul, M. Gaitan, Optimization of backside micromachined CMOS inductors for RF applications, Proc. IEEE Int Symp. Circuits Syst, Geneva, Switz. 5(2000)185-188.

DOI: 10.1109/iscas.2000.857394
