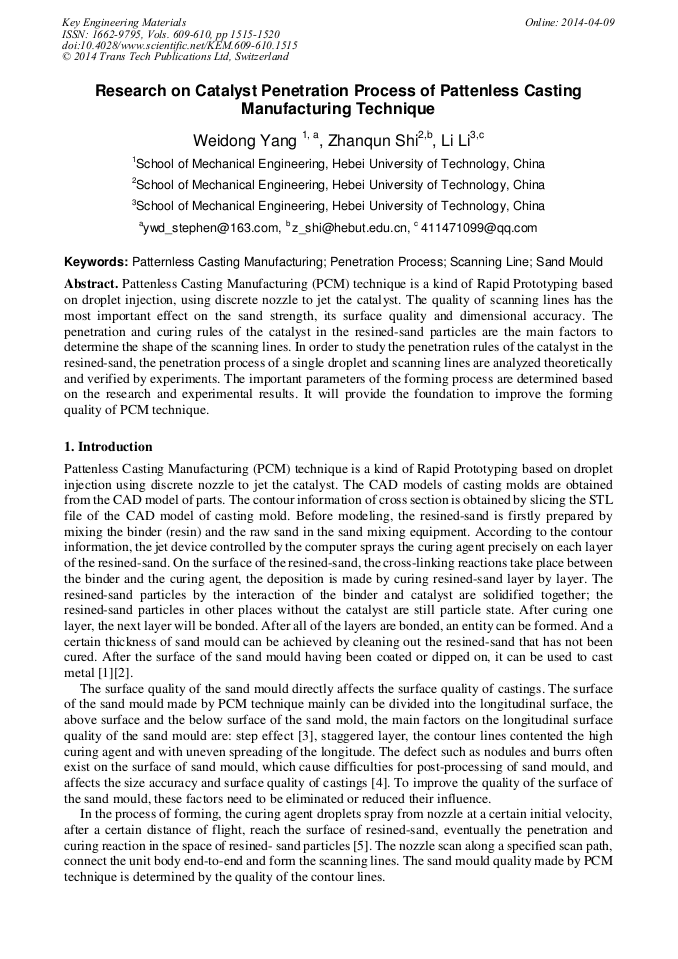

Research on Catalyst Penetration Process of Patternless Casting Manufacturing Technique

Abstract:

Pattenless Casting Manufacturing (PCM) technique is a kind of Rapid Prototyping based on droplet injection, using discrete nozzle to jet the catalyst. The quality of scanning lines has the most important effect on the sand strength, its surface quality and dimensional accuracy. The penetration and curing rules of the catalyst in the resined-sand particles are the main factors to determine the shape of the scanning lines. In order to study the penetration rules of the catalyst in the resined-sand, the penetration process of a single droplet and scanning lines are analyzed theoretically and verified by experiments. The important parameters of the forming process are determined based on the research and experimental results. It will provide the foundation to improve the forming quality of PCM technique.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 1515-1520
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.1515
• Online since: April 2014
• Authors: Wei Dong Yang*, Zhan Qun Shi, Li Li
• Keywords: Patternless Casting Manufacturing, Penetration Process, Sand Mould, Scanning Line

References

[1] YANG Wei-Dong. Research on patternless casting manufacturing based on sand multiple-package (Ph. D Dissertation). Beijing Tsinghua University, 2003. (In Chinese).

[2] YANG Wei-Dong, TAN Run-Hua, YAN Yong-Nian, etal. Survey of rapid casting technology based on microdrop jetting method[J]. Foundry Technolgy, 2005, 26(1)1-4. (In Chinese).

[3] LU K, REYNOLDS W T. 3DP process for fine mesh structure printing [J] . Powder Technology, 2008, 187: 11–18.

DOI: 10.1016/j.powtec.2007.12.017

[4] ZHANG Ren-Ji, YAN Yong-Nian, LIN Feng, etal. Application of patternless casting manufacturing in rapid tooling[J]. Electtomachining & Mould, 2006, Suppl: 59-62.

[5] YANG Wei-Dong, YAN Yong-Nian, ZhANG Ren-Ji, etal. Effective factors on forming precision in patternless casting manufacturing technique[J]. Tsinghua Science and Technology, 2008, 14(Suppl. 1): 180-185.

DOI: 10.1016/s1007-0214(09)70089-6

[6] YAO Ying-Xue, GAO Sheng-Dong, CUI Cheng-Song. Rapid prototyping based on uniform droplet spraying [J]. Journal of Materials Processing Technology, 2004, 146: 389–395.

DOI: 10.1016/j.jmatprotec.2013.08.009

[7] Sachs E, et al. Three dimensional printing: rapid tooling and prototypes directly from a CAD model [J]. Journal of Engineering for Industry, 1990, 3: 69-80.

DOI: 10.1016/s0007-8506(07)61035-x

[8] IPPOLITO R, IULIANO L, GATTO A. Benchmarking of rapid prototyping techniques in terms of dimensional accuracy and surface finish [J]. Annals of the CIRP, STC E, 1995, 44 (1): 157-60.

DOI: 10.1016/s0007-8506(07)62296-3

[9] RICHARD K H, MICHAEL J C, ISCOTT A U, etal. Spreading and Infiltration of Inkjet-Printed Polymer Solution Droplets on a Porous Substrate[J] . Journal of Colloid and Interface Science , 2002, 249: 432–440.

DOI: 10.1006/jcis.2002.8225

[10] YANG Wei-Dong, YAN Yong-Nian, XU Dan. Research on Congregation Unit in Patternless Casting Manufacturing[J].　China Mechnical Engineering, 2003, 14(5): 377-380. (In Chinese).

[11] R.E. Kooris, in: Flowing of Fluid through Porous Material, edtied by Petroleum industry press, Beijing (1994).
