Experimental Investigations of the Detonation Synthesis of Micron Al2O3 by the Precursor of Thermal Decomposition

R.Y. Li; H.L. Yang; H.H. Yan; X.H. Wang; X.J. Li

doi:10.4028/www.scientific.net/KEM.609-610.165

Paper Titles

Visible Light Photocatalytic Degradation of Methylene Blue over N-Doped TiO₂
p.141

Study on the Influence of N-Doping to the In Situ Growth TiO₂ Film Photocatalytic Character
p.147

Evaluation of Annealing Effects on TiO₂ Nanorod Arrays for Dye-Sensitized Solar Cells by Equivalent Circuit Analysis
p.152

Graphene Synthesis on Specified Location
p.159

Experimental Investigations of the Detonation Synthesis of Micron Al₂O₃ by the Precursor of Thermal Decomposition
p.165

Study on Preparation and Resistive Switching Characteristics of SnO₂ Films
p.169

“Double Junction” of Ag-Doping TiO₂ Nanotubes
p.175

Synthesis and Characterization of Highly Dispersed and Homogeneous Nano Zinc Oxide Rods
p.180

Effect of Milling Time on Properties of Ti-48at%Al Composite Powder Prepared by High Energy Milling
p.185

HomeKey Engineering MaterialsKey Engineering Materials Vols. 609-610Experimental Investigations of the Detonation...

Experimental Investigations of the Detonation Synthesis of Micron Al₂O₃ by the Precursor of Thermal Decomposition

Abstract:

The Al₂O₃ is synthesized by detonation of mixed explosive, prepared by mixing RDX and aluminum hydroxide named as precursor of thermal decomposition. The production of detonation is analysed by XRD, TEM and DTA/TG. The curve of XRD indicates that the production are (α+γ)-Al₂O₃. The average crystal size of Al₂O₃ is 126nm calculated by the Scherrer equation. The photographs of TEM show that all granules of Al₂O₃ are spherical, and the average size of granule is 1000nm. The visible exothermic or endothermic peak does not appear on the curve of DTA from 50 to 1300 degree Centigrade. The curve of TG indicates that the production of detonation generates 12% weight loss from 50 to 1300 degree Centigrade.

You might also be interested in these eBooks

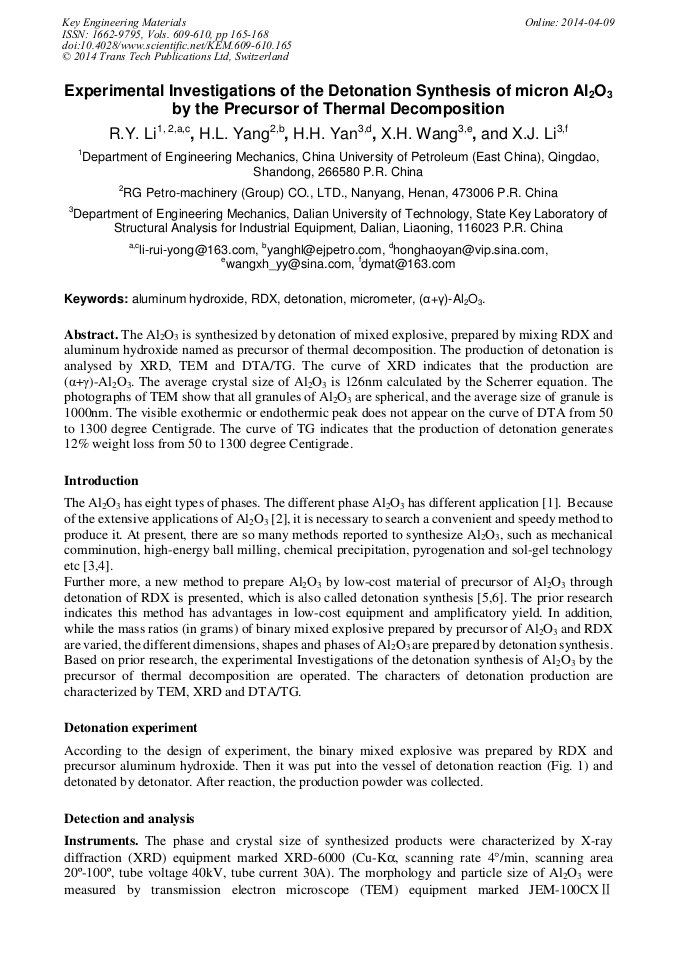

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 609-610)

Pages:

165-168

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.609-610.165

Citation:

Cite this paper

Online since:

April 2014

Authors:

R.Y. Li*, H.L. Yang, H.H. Yan, X.H. Wang, X.J. Li

Keywords:

(α+γ)-Al₂O₃, Aluminum Hydroxide, Detonation, Micrometer, RDX

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] L.D. Shang, Z.L. Wang, X.Z. Chuai, et al., The research and identify of eight types of pahses Al2O3, Chemical World. 7 (1994) 346-350.

Google Scholar

[2] Y.G. Zhang, F. Yan, Preparation and application of nano-alumina, Ino. Che. Industry. 33 (2001) 19-20.

Google Scholar

[3] Y. Li, M.H. Song, The preparation of nano-alumina and study on its modification, Heilongjiang Sci. 3 (2012) 38-41.

Google Scholar

[4] A. A. Bukaemskii1, A. G. Beloshapko1, Explosive synthesis of ultradisperse aluminum oxide in an oxygen-containing medium, Com. Exp. Shock Wave. 37 (2001) 594-599.

Google Scholar

[5] R. Y. Li， X. J. Li，H. H. Yan, Control preparation of nano γ phase aluminum oxide by explosive temperature, Nanotech. and Prec. Engin. 9 (2011) 113-116.

Google Scholar

[6] R. Y. Li， X. J. Li，H. H. Yan, et al. ，Experimental investingations of the controlled explosive synthesis of ultrafine Al2O3, Com. Exp. Shock Wave. 49 (2013) 105-108.

DOI: 10.1134/s0010508213010115

Google Scholar
