Ultrasonic Modulating Compound Discharge – Electrochemical Micro-Fine Machining Technology and its Applications

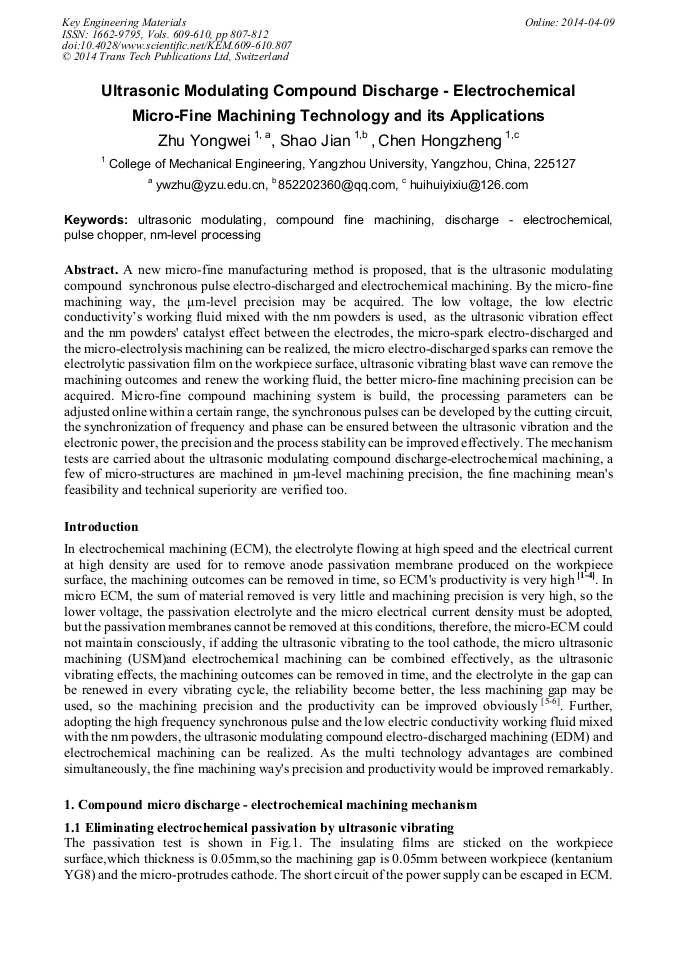

Abstract:

A new micro-fine manufacturing method is proposed, that is the ultrasonic modulating compound synchronous pulse electro-discharged and electrochemical machining. By the micro-fine machining way, the μm-level precision may be acquired. The low voltage, the low electric conductivitys working fluid mixed with the nm powders is used, as the ultrasonic vibration effect and the nm powders' catalyst effect between the electrodes, the micro-spark electro-discharged and the micro-electrolysis machining can be realized, the micro electro-discharged sparks can remove the electrolytic passivation film on the workpiece surface, ultrasonic vibrating blast wave can remove the machining outcomes and renew the working fluid, the better micro-fine machining precision can be acquired. Micro-fine compound machining system is build, the processing parameters can be adjusted online within a certain range, the synchronous pulses can be developed by the cutting circuit, the synchronization of frequency and phase can be ensured between the ultrasonic vibration and the electronic power, the precision and the process stability can be improved effectively. The mechanism tests are carried about the ultrasonic modulating compound discharge-electrochemical machining, a few of micro-structures are machined in μm-level machining precision, the fine machining mean's feasibility and technical superiority are verified too.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 807-812
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.807
• Online since: April 2014
• Authors: Yong Wei Zhu*, Jian Shao, Hong Zheng Chen
• Keywords: Compound Fine Machining, Discharge-Electrochemical, nm-Level Processing, Pulse Chopper, Ultrasonic Modulating

References

[1] Wang Zhennong. Micro Manufacturing Technology[M]. First Edition, National Defense Industry Press. Beijing. (2005).

[2] Cao Fengguo. Ultrasonic Machining Technology [M]. First Edition, Beijing: Chemical Industry Press, (2006).

[3] Rolf Schuster, Viola Kirchner. Electrochemical Micro machining [J]. SCIENCE, Issue 289, 2000, pp.98-101.

[4] B. Bhattacharyya, J. Munda, Experimental Investigation into Electrochemical Micromachining (EMM) Process[J], Journal of Materials Processing Technology, Issue 140, 2003, p.287~291.

DOI: 10.1016/s0924-0136(03)00722-2

[5] Kozak, J., Rajurkar, K. P., Makkar, Y. Selected problems of micro electrochemical machining[J], Journal of Materials Processing Technology, Vol. 149, Issue1-3, 2004, pp.426-431.

DOI: 10.1016/j.jmatprotec.2004.02.031

[6] Ai Xing. Study on High Efficiency Machining Technology and Its Applications[J], ENGINEERING SCIENCE, Vol. 2, Issue 11, 2000, pp.41-51.

[7] Zhang Chaoyang, Zhu Di, Wang Minghuan. Nanosecond pulses micro-electrochemical machining theory and experiment [J]. Chinese Journal of Mechanical Engineering, 2007, Vol. 41, Issue 1, pp.208-213.

[8] Zhu Yongwei , Wang Zhanhe,   Li Hongying ,   Yun Naizhang. The Mechanism and Test Study on Micro-machining of ECM Combined Ultrasonic Vibrating[J], Chinese Mechanical Engineering, Vol. 19, Issue 17, 2008, pp.1786-1792.

DOI: 10.1049/cp:20060829

[9] Xinlei Miao, Yongwei Zhu. Optimal Design and Test of Ultrasonical Vibration System[J], Applied Mechanicals and Materials, Vol. 226, Issue 1, 2012, pp.21-25.

[10] Zhu, Yongwei, Wang Zhanhe , Fan Zhongjun, et al. Ultrosonic combined electrical micro-machining technology and its application[J], Jixie Gongcheng Xuebao, Vol. 43, Issue 6, 2010, pp.186-197.
