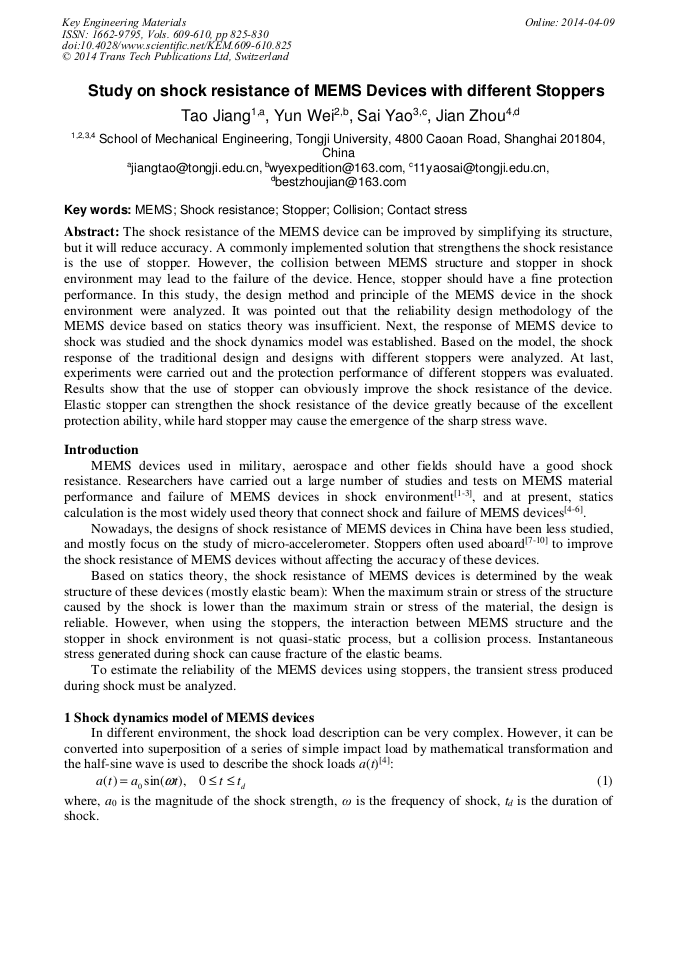

Study on Shock Resistance of MEMS Devices with Different Stoppers

Abstract:

The shock resistance of the MEMS device can be improved by simplifying its structure, but it will reduce accuracy. A commonly implemented solution that strengthens the shock resistance is the use of stopper. However, the collision between MEMS structure and stopper in shock environment may lead to the failure of the device. Hence, stopper should have a fine protection performance. In this study, the design method and principle of the MEMS device in the shock environment were analyzed. It was pointed out that the reliability design methodology of the MEMS device based on statics theory was insufficient. Next, the response of MEMS device to shock was studied and the shock dynamics model was established. Based on the model, the shock response of the traditional design and designs with different stoppers were analyzed. At last, experiments were carried out and the protection performance of different stoppers was evaluated. Results show that the use of stopper can obviously improve the shock resistance of the device. Elastic stopper can strengthen the shock resistance of the device greatly because of the excellent protection ability, while hard stopper may cause the emergence of the sharp stress wave.

• Periodical: Key Engineering Materials (Volumes 609-610)
• Pages: 825-830
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.609-610.825
• Online since: April 2014
• Authors: Tao Jiang*, Yun Wei, Sai Yao, Jian Zhou
• Keywords: Collision, Contact Stress, MEMS, Shock Resistance, Stopper

References

[1] Mohamed G H. MEMS introduction and fundamentals [M]. Taylor & Francis Group, LLC, Boca Raton, FL, 2006: ch3.

[2] Stuart B B, William V A. Materials reliability in MEMS devices [C]. 1997 International Conference on Solid-state Sensors and Actuators, Chicago, USA, 1997: 591-593.

[3] T. Gordon Brown, Bradford Davis. Strap-down microelectromechanical (MEMS) sensors for high-G munition applications [J]. 2001, 37(1): 336-342.

DOI: 10.1109/20.911850

[4] Allyson L H, Mark G S, Herbert R S. MEMS reliability [M]. Springer Science+Business Media, New York, 2011: 85-114.

[5] Danelle M T, Jeremy A W. MEMS reliability in shock environments [C]. 38th Annual International Reliability, San Jose, USA, 2000: 129-138.

[6] V T Srikar, Stephen D S. The reliability of microelectromechanical systems (MEMS) in shock environments [J]. Journal of Microelectromechanical Systems, 2002, 11(3): 206-214.

DOI: 10.1109/jmems.2002.1007399

[7] L. Bruce Winter. A high performance variable capacitance accelerometer [J]. IEEE Transactions on instrumentation and Measurement. 1988, 37(4): 569-571.

DOI: 10.1109/19.9815

[8] Allyson Hartzell, David Woodilla. Reliability methodology for prediction of micromachanined accelerometer stiction [C]. 37th Annual International Reliability, San Jose, USA, 1999: 202-205.

DOI: 10.1109/relphy.1999.761613

[9] Sang W Y, Navid Yazdi. Micromachined integrated shock protection for MEMS [J]. Sensors and Actuators A, 2006, 130-131: 166-175.

DOI: 10.1016/j.sna.2005.12.032

[10] Michael Naumann, Jan Mehner. Design and application of flexible stops for MEMS devices [C]. IEEE Sensors 2010 Conference, Big Island, Hawaii, 2010: 168-173.

DOI: 10.1109/icsens.2010.5690685

[11] Subramanian Sundaram, Maurizio Tormen. Vibration and shock reliability of MEMS: modeling and experimental validation [J]. Journal of Micromechanics and Microengineering, 2011, 21(4): 1-13.

DOI: 10.1088/0960-1317/21/4/045022

[12] Kuang-Shu Ou, Kuo-Shen Chen. Fast positioning and impact minimizing of MEMS devices by suppression of motion-induced vibration by command-shaping method [J]. Journal of Microelectromechanical Systems. 2011, 20(1): 128-139.

DOI: 10.1109/jmems.2010.2100023

[13] R. S A. Transient response to step and pulse functions, in Shock and Vibration Handbook [M]. McGraw-Hill, New York, 1996: ch8.
