Microstructure and Properties of Aluminum-Copper Composites Prepared by Hot-Pressure Sintering

Abstract:

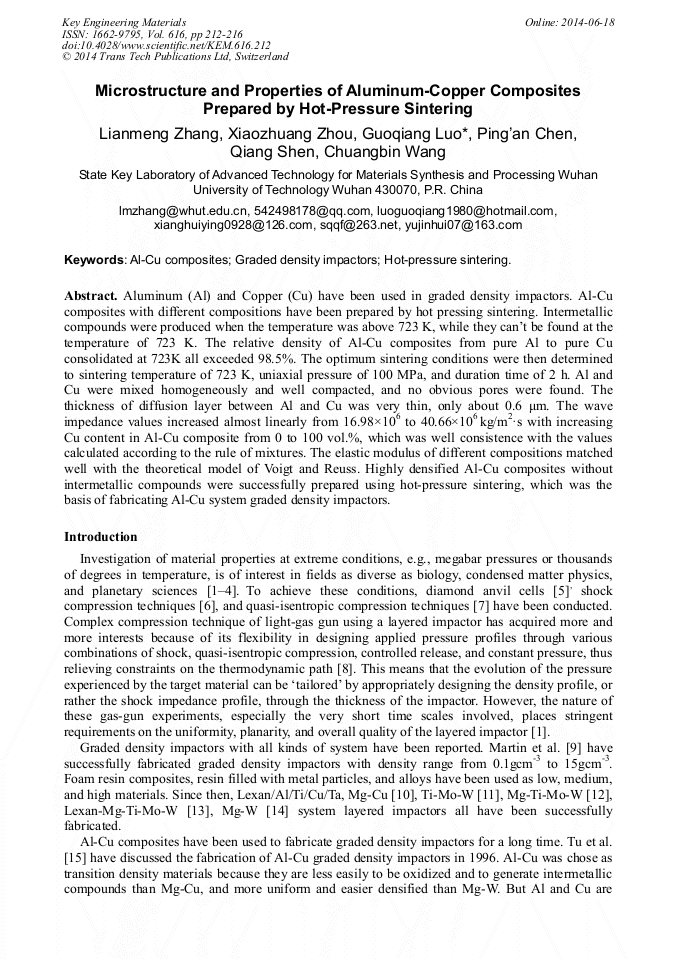

Aluminum (Al) and Copper (Cu) have been used in graded density impactors. Al-Cu composites with different compositions have been prepared by hot pressing sintering. Intermetallic compounds were produced when the temperature was above 723 K, while they can’t be found at the temperature of 723 K. The relative density of Al-Cu composites from pure Al to pure Cu consolidated at 723K all exceeded 98.5%. The optimum sintering conditions were then determined to sintering temperature of 723 K, uniaxial pressure of 100 MPa, and duration time of 2 h. Al and Cu were mixed homogeneously and well compacted, and no obvious pores were found. The thickness of diffusion layer between Al and Cu was very thin, only about 0.6 μm. The wave impedance values increased almost linearly from 16.98×10⁶ to 40.66×10⁶ kg/m²·s with increasing Cu content in Al-Cu composite from 0 to 100 vol.%, which was well consistence with the values calculated according to the rule of mixtures. The elastic modulus of different compositions matched well with the theoretical model of Voigt and Reuss. Highly densified Al-Cu composites without intermetallic compounds were successfully prepared using hot-pressure sintering, which was the basis of fabricating Al-Cu system graded density impactors.

• Periodical: Key Engineering Materials (Volume 616)
• Pages: 212-216
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.616.212
• Online since: June 2014
• Authors: Lian Meng Zhang, Xiao Zhuang Zhou, Guo Qiang Luo*, Ping An Chen, Qiang Shen, Chuang Bin Wang
• Keywords: Al-Cu Composites, Graded Density Impactors, Hot-Pressure Sintering

References

[1] A.C. Mitchell, W.J. Nellis, Shock compression of aluminum, copper, and tantalum, J. Appl. Phys. 52 (1981) 3363-3374.

DOI: 10.1063/1.329160

[2] J. H. Nguyen and N. C. Holmes, Melting of iron at the physical conditions of the Earth's core, Nature 339 (2004) 339-342.

[3] V. Iota, C.S. Yoo, H. Cynn, Quartzlike Carbon Dioxide: An Optically Nonlinear Extended Solid at High Pressures and Temperatures, Science 283 (1999) 1510-1513.

DOI: 10.1126/science.283.5407.1510

[4] V.V. Struzhkin, M.I. Eremets, W. Gan, H.K. Mao, R.J. Hemley, Superconductivity in dense lithium, Science 298 (2002) 1213-1215.

DOI: 10.1126/science.1078535

[5] M. Eremets, High Pressure Experimental Methods, Oxford University Press, Oxford, 1996.

[6] Y.B. Zel'dovich, Y.P. Raizer, Physics of Shock Waves and High-Temperature Hydrodynamic Phenomena, Academic Press, New York, 1967.

[7] C.A. Hall, Recent Advances in High-Pressure Equation-of-State Capabilities, Phys. Plasma, 7 (2000) 2069-2075.

[8] L.P. Martin, Daniel Orlikowski, J.H. Nguyen, Fabrication and Characterization of Graded Impedance Gas Gun Impactors from Tape Cast Metal Powders, Materials Science and Engineering A 427 (2006) 83-91

DOI: 10.1016/j.msea.2006.04.039

[9] F.H. Streitz, J.H. Nguyen, D. Orlikowski, J.A. Moriarty, N.C. Holmes, Final Report 02-ERD-033, Lawrence Livermore National Laboratory, California, 2005.

DOI: 10.2172/15014719

[10] L.P. Martin, J.R. Patterson, D. Orlikowski, and J.H. Nguyen, Application of tape-cast graded impedance impactors for light-gas gun experiments, J. Appl. Phys. 102 (2007) 0235-0241.

DOI: 10.1063/1.2756058

[11] Q. Shen, Preparation and Quasi-isentropic Compressive Characteristics of W-Mo-Ti Flier-plate with Graded Wave Impedance, PHD Dissertation, Wuhan University of Technology, Wuhan, 2001.

[12] G.Q. Luo, Quasi-isentropic Compressive Characteristics of W-Mo-Ti System Flier-plate with Graded Wave Impedance, Master Dissertation, Wuhan University of Technology, Wuhan, 2004 .

[13] Q. Shen, Research on Quasi-isentropic Compression by Graded Density Impactors and Hypervelocity Launch Experiments. Post Doctor Dissertation. Chinese Academy of Engineering Physics, Mianyang, China, 2004.

[14] G.Q. Luo, J.S. Bai, H. Tan, Q. Shen, J.B. Hu and L.M. Zhang, Characterizations of Mg-W System Graded-Density Impactors for Complex Loading Experiments, MMTA. 9 (2010) 2389-2395.

DOI: 10.1007/s11661-010-0309-0

[15] R. Tu, Q. Shen, J.S. Hua, Fabrication of Al-Cu system with functionally graded density profiles, Functional Graded Materials, 1997 (1996) 307-11

DOI: 10.1016/b978-044482548-3/50051-2

[16] J.Q. Yu, W.Z. Yi, etc., Atlas of binary alloy phase, Shanghai Science and Technology Press, Shanghai, 1989.

[17] W.D. Kingery, H.K. Bowen, D.R. Uhlmann, Introduction to Ceramics, John Wiley & Sons, New York, 1976.
