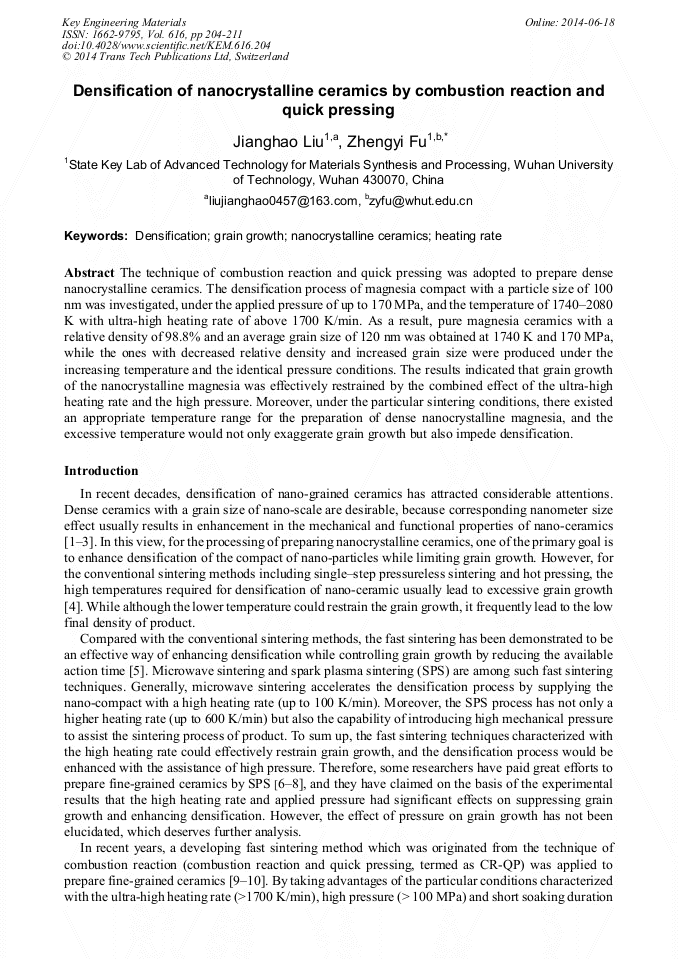

Densification of Nanocrystalline Ceramics by Combustion Reaction and Quick Pressing

Abstract:

The technique of combustion reaction and quick pressing was adopted to prepare dense nanocrystalline ceramics. The densification process of magnesia compact with a particle size of 100 nm was investigated, under the applied pressure of up to 170 MPa, and the temperature of 1740–2080 K with ultra-high heating rate of above 1700 K/min. As a result, pure magnesia ceramics with a relative density of 98.8% and an average grain size of 120 nm was obtained at 1740 K and 170 MPa, while the ones with decreased relative density and increased grain size were produced under the increasing temperature and the identical pressure conditions. The results indicated that grain growth of the nanocrystalline magnesia was effectively restrained by the combined effect of the ultra-high heating rate and the high pressure. Moreover, under the particular sintering conditions, there existed an appropriate temperature range for the preparation of dense nanocrystalline magnesia, and the excessive temperature would not only exaggerate grain growth but also impede densification.

• Periodical: Key Engineering Materials (Volume 616)
• Pages: 204-211
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.616.204
• Online since: June 2014
• Authors: Jiang Hao Liu*, Zheng Yi Fu
• Keywords: Densification, Grain Growth, Heating Rate, Nanocrystalline Ceramics

References

[1] A. Krell, P. Blank, Grain size dependence of hardness in dense submicrometer alumina, J. Am. Ceram. Soc. 78 (1995) 1118-1120.

DOI: 10.1111/j.1151-2916.1995.tb08452.x

[2] R. Riedel, H.J. Kleebe, H. Schonfelder, F. Aldinger, A covalent micro/nano-composite resistant to high-temperature oxidation, Nature 374 (1995) 526-528.

DOI: 10.1038/374526a0

[3] R. Apetz, M.P.B van Bruggen, Transparent alumina: A light-scattering model, J. Am. Ceram. Soc. 86 (2003) 480-486.

DOI: 10.1111/j.1151-2916.2003.tb03325.x

[4] J.F. Roy, M. Descemond, C. Brodhag, F. Thevenot, Alumina microstructural behavior under pressureless sintering and hot-pressing, J. Eur. Ceram. Soc. 11 (1993) 325-333.

DOI: 10.1016/0955-2219(93)90032-m

[5] S.H. Risbud, C.H. Shan, A.K. Mukherjee, M.J. Kim, J.S. Bow, R.A. Holl, Retention of nanostructure in aluminum oxide by very rapid sintering at 1150 oC, J. Mater. Res. 10 (1995) 237-239.

DOI: 10.1557/jmr.1995.0237

[6] Z.A. Munir, U. Anselmi-Tamburini, M. Ohyanagi, The effect of electric field and pressure on the synthesis and consolidation of materials: A review of the spark plasma sintering method, J. Mater. Sci. 41 (2006) 763-777.

DOI: 10.1007/s10853-006-6555-2

[7] U. Anselmi-Tamburini, J.E. Garay, Z.A. Munir, A. Tacca, F. Maglia, G. Spinolo, Spark plasma sintering and characterization of bulk nanostructured fully stabilized zirconia: Part 1. Densification studies, J. Mater. Res. 19 (2004) 3255-3262.

DOI: 10.1557/jmr.2004.0423

[8] R. Chaim, M. Margulis, Densification maps for spark plasma sintering of nanocrystalline MgO ceramics, Mater. Sci. Eng. A 407 (2005) 180-187.

DOI: 10.1016/j.msea.2005.07.024

[9] F. Meng, Z. Fu, J. Zhang, Rapid densification of nano-grained alumina by high temperature and pressure with a very high heating rate, J. Am. Ceram. Soc. 90 (2007) 1262-1264.

DOI: 10.1111/j.1551-2916.2007.01599.x

[10] Z. Fu, L. Huang, J. Zhang, Ultra-fast densification of CNTs reinforced alumina based on combustion reaction and quick pressing, Sci. China Tech. Sci. 55 (2012) 484-489.

DOI: 10.1007/s11431-011-4674-8

[11] R. Marder, R. Chaim, C. Estournès, Grain growth stagnation in fully dense nanocrystalline Y2O3 by spark plasma sintering, Mater. Sci. Eng. A 527 (2010) 1577-1585.

DOI: 10.1016/j.msea.2009.11.009

[12] R. Chaim, Densification mechanisms in spark plasma sintering of nanocrystalline ceramics, Mater. Sci. Eng. A 443 (2007) 25-32.

DOI: 10.1016/j.msea.2008.02.031

[13] Z.A. Munir, U. Anselmi-Tamburini, Self-propagating exothermic reaction: The synthesis of high-temperature materials by combustion, Mater. Sci. Rep. 3 (1989) 277-358.

DOI: 10.1016/0920-2307(89)90001-7

[14] D. Ehre, Y. Gutmanas, R. Chaim, Densification of nanocrystalline MgO ceramics by hot-pressing, J. Eur. Ceram. Soc. 25 (2005) 3579-3585.

DOI: 10.1016/j.jeurceramsoc.2004.09.023

[15] T.K. Gupta, Sintering of MgO: Densification and grain growth, J. Mater. Sci. 6 (1971) 25-32.
