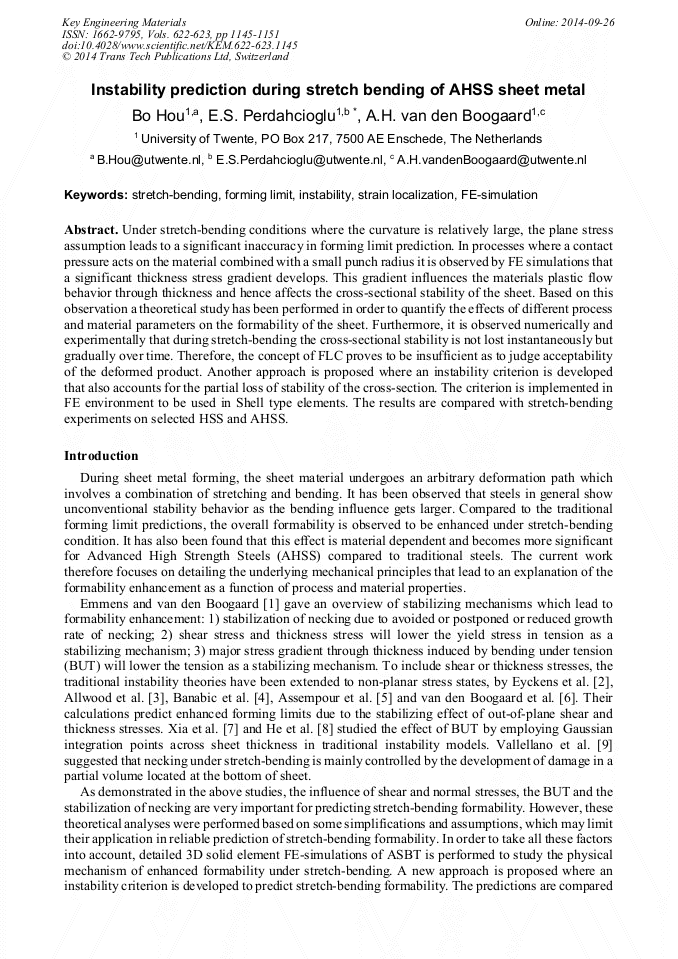

Instability Prediction during Stretch Bending of AHSS Sheet Metal

Abstract:

Under stretch-bending conditions where the curvature is relatively large, the plane stress assumption leads to a significant inaccuracy in forming limit prediction. In processes where a contact pressure acts on the material combined with a small punch radius it is observed by FE simulations that a significant thickness stress gradient develops. This gradient influences the materials plastic flow behavior through thickness and hence affects the cross-sectional stability of the sheet. Based on this observation a theoretical study has been performed in order to quantify the effects of different process and material parameters on the formability of the sheet. Furthermore, it is observed numerically and experimentally that during stretch-bending the cross-sectional stability is not lost instantaneously but gradually over time. Therefore, the concept of FLC proves to be insufficient as to judge acceptability of the deformed product. Another approach is proposed where an instability criterion is developed that also accounts for the partial loss of stability of the cross-section. The criterion is implemented in FE environment to be used in Shell type elements. The results are compared with stretch-bending experiments on selected HSS and AHSS.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 1145-1151
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.1145
• Online since: September 2014
• Authors: Bo Hou*, Emin Semih Perdahcioglu, A.H. van den Boogaard
• Keywords: Fe-Simulation, Forming Limit, Instability, Strain Localization, Stretch-Bending

References

[1] W.C. Emmens, A.H. van den Boogaard, An overview of stabilizing deformation mechanisms in incremental sheet forming, J. Mater. Process. Tech. 209 (2009) 3688-3695.

DOI: 10.1016/j.jmatprotec.2008.10.003

[2] P. Eyckens, A. Bael, P. Houtte, An extended Marciniak-Kuczynski model for anisotropic sheet subjected to monotonic strain paths with through-thickness shear, Int. J. Plasticity. 27 (2011) 1577-1597.

DOI: 10.1016/j.ijplas.2011.03.008

[3] J.M. Allwood, D.R. Shouler, Generalised forming limit diagrams showing increased forming limits with non-planar stress states, Int. J. Plasticity. 25 (2009) 1207-1230.

DOI: 10.1016/j.ijplas.2008.11.001

[4] D. Banabic, S. Soare, On the effect of the normal pressure upon the forming limit strains, Numisheet 2008 International Conference. (2008) 199-204.

[5] A. Assempour, H.K. Nejadkhaki, R. Hashemi, Forming limit diagrams with the existence of through-thickness normal stress, Comput. Mater. Sci. 48 (2008) 504-508.

DOI: 10.1016/j.commatsci.2010.02.013

[6] A.H. van den Boogaard, W.C. Emmens, J. Huétink, Effect of thickness stress in stretch-bending, NumiForm 2010 International Conference. (2010) 504-511.

DOI: 10.1063/1.3457792

[7] Z.C. Xia, D. Zeng, Sheet metal forming limit under stretch-bending, MSEC 2008 International Conference. MSEC_ICM&P2008-72555.

DOI: 10.1115/msec_icmp2008-72555

[8] Ji He, Z.C. Xia, X.H. Zhu, D. Zeng, S.H. Li, Sheet metal forming limits under stretch-bending with anisotropic hardening, Int. J. Mech. Sci. 75 (2013) 244-256.

DOI: 10.1016/j.ijmecsci.2013.07.007

[9] D. Morales-Palma, C. Vallellano, F.J. García-Lomas, Assessment of the effect of the through-thickness strain / stress gradient on the formability of stretch-bend metal sheets, Materials & Design. 50 (2013) 798-809.

DOI: 10.1016/j.matdes.2013.03.086

[10] D. Kitting, A. Ofenheimer, H. Pauli, E.T. Till, A phenomenological concept to predict formability in stretch-bending forming operations, Int. J. Mater. Form. 3 (2010) 1163-1166.

DOI: 10.1007/s12289-010-0979-6
