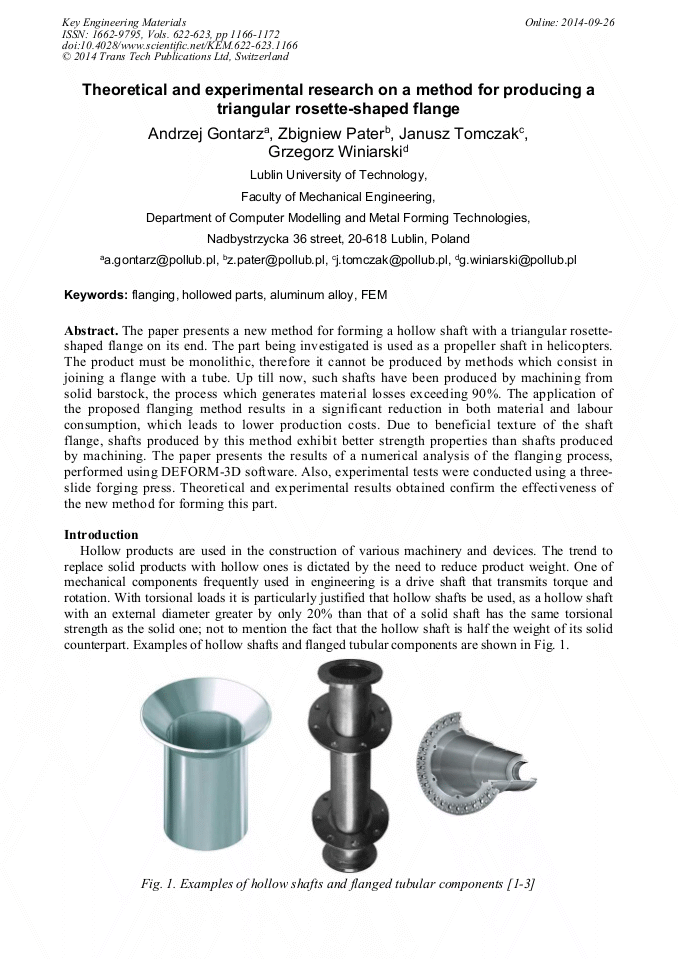

Theoretical and Experimental Research on a Method for Producing a Triangular Rosette-Shaped Flange

Abstract:

The paper presents a new method for forming a hollow shaft with a triangular rosette-shaped flange on its end. The part being investigated is used as a propeller shaft in helicopters. The product must be monolithic, therefore it cannot be produced by methods which consist in joining a flange with a tube. Up till now, such shafts have been produced by machining from solid barstock, the process which generates material losses exceeding 90%. The application of the proposed flanging method results in a significant reduction in both material and labour consumption, which leads to lower production costs. Due to beneficial texture of the shaft flange, shafts produced by this method exhibit better strength properties than shafts produced by machining. The paper presents the results of a numerical analysis of the flanging process, performed using DEFORM-3D software. Also, experimental tests were conducted using a three-slide forging press. Theoretical and experimental results obtained confirm the effectiveness of the new method for forming this part.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 1166-1172
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.1166
• Online since: September 2014
• Authors: Andrzej Gontarz*, Zbigniew Pater, Janusz Tomczak, Grzegorz Winiarski
• Keywords: Aluminium Alloy, FEM, Flanging, Hollowed Parts

References

[1] www. sandvik. coromant. com.

[2] www. cnc-projekt. pl.

[3] gornictwo. dremex. com. pl.

[4] W. Muzykiewicz, J. Bednarczyk, A. Łukaszka, A. Rękas, Wywijanie kołnierzy elementów rurowych sztywnymi narzędziami w warunkach statycznych i metodą tłoczenia elektrodynamicznego, Rudy i Metale Nieżelazne R47, nr 10-11, 2002, pp.545-550.

[5] G. Samołyk, Orbital Forging of a Sleeve-Type Part with a Simultaneous Flanging, Steel Research International Special edition: Metal Forming 2012, 2012, pp.175-178.

[6] Hu X.L., Wang Z.R., Numerical simulation and experimental study on the multi-step upsetting of a trick and wide flange on the end of pipe, Journal of Materials Processing Technology 151, 2004, pp.321-327.

DOI: 10.1016/j.jmatprotec.2004.04.081

[7] Fouly A. Mohamed, Sausy Zein El-Abden, Mohieled A.R., A rotary flange forming process on the late using a ball-shaped tool, Journal of Materials Processing Technology 170, 2005, pp.501-508.

DOI: 10.1016/j.jmatprotec.2004.12.017

[8] Ł. Okoń, Kształtowanie zewnętrznych kołnierzy rur metodą wywijania przy różnych stanach obciążenia, praca doktorska, Politechnika Lubelska, Wydział Mechaniczny, Lublin (2012).

[9] Y. Qin, R. Balendra, An approach for the forming of large-thickness-flange components by injection forming.

[10] Z. Pater, J. Tomczak, A. Gontarz, Sposób wytwarzania kołnierzy czołowych w kształcie trójramiennej rozety, Biuletyn Urzędu Patentowego, 2013, vol. 41, 8, pp.11-11.

[11] Z. Pater, A. Gontarz, J. Tomczak, Kształtowanie przez rozpychanie kołnierza drążonego wału wirnika, Hutnik - Wiadomości Hutnicze, 2012, nr 3, pp.131-134.

[12] M. G. Cockcroft, D. J. Latham, Journal of the Institute of Metals 96, 33 (1968).

[13] K. H. Shim, S. K. Lee, B. S. Kang, S. M. Hwang, Jour-nal of Materials Processing Technology p.155–156, 1935, (2004).
