Novel Wear Testing Apparatus to Investigate the Reciprocating Sliding Wear in Sheet Metal Forming at Elevated Temperatures

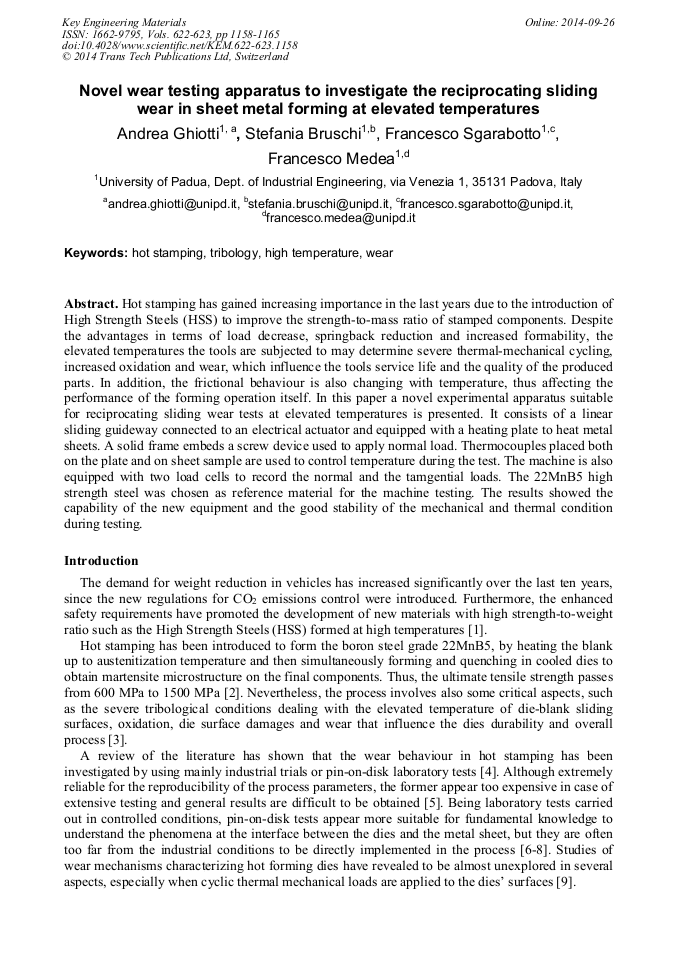

Abstract:

Hot stamping has gained increasing importance in the last years due to the introduction of High Strength Steels (HSS) to improve the strength-to-mass ratio of stamped components. Despite the advantages in terms of load decrease, springback reduction and increased formability, the elevated temperatures the tools are subjected to may determine severe thermal mechanical cycling, increased oxidation and wear, which influence the tools service life and the quality of the produced parts. In addition, the frictional behaviour is also changing with temperature, thus affecting the performance of the forming operation itself. In this paper a novel experimental apparatus suitable for reciprocating sliding wear tests at elevated temperatures is presented. It consists of a linear sliding guideway connected to an electrical actuator and equipped with a heating plate to heat metal sheets. A solid frame embeds a screw device used to apply normal load. Thermocouples placed both on the plate and on sheet sample are used to control temperature during the test. The machine is also equipped with two load cells to record the normal and the tamgential loads. The 22MnB5 high strength steel was chosen as reference material for the machine testing. The results showed the capability of the new equipment and the good stability of the mechanical and thermal condition during testing.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 1158-1165
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.1158
• Online since: September 2014
• Authors: Andrea Ghiotti, Stefania Bruschi, Francesco Sgarabotto, Francesco Medea*
• Keywords: High Temperature, Hot Stamping, Tribology, Wear

References

[1] Karbasian H., Tekkaya A.E. (2010) A review on hot stamping. Journal of Materials Processing Technology, 210: 2103-2118.

DOI: 10.1016/j.jmatprotec.2010.07.019

[2] Merklein M., Lechler J., Geiger M., (2006) Characterisation of the Flow Properties of the Quenchenable Ultra High Strength Steel 22MnB5. CIRP Annals - Manufacturing Technology, 55: 229-232.

DOI: 10.1016/s0007-8506(07)60404-1

[3] Hardell J., Kassfeldt E., Prakash B. (2007) Friction and wear behaviour of high strength boron steel at elevated temperatures of up to 800°C, Wear, 264: 788-799.

DOI: 10.1016/j.wear.2006.12.077

[4] Ghiotti A., Bruschi S., Borsetto F. (2011), Tribological characteristics of high strength steel sheets under hot stamping conditions. Journal of Materials Processing Technology 211: 1694– 1700.

DOI: 10.1016/j.jmatprotec.2011.05.009

[5] Boher C., Le Roux S., Penazzi L., Dessain C. (2012) Experimental investigation of the tribological behavior and wear mechanisms of tool steel grades in hot stamping of a high- strength boron steel. Wear 294–295: 286–295.

DOI: 10.1016/j.wear.2012.07.001

[6] Yanagida A., Azushima A., (2009) Evaluation of coefficients of friction in hot stamping by hot flat drawing test. CIRP Annals - Manufacturing Technology 58: 247–250.

DOI: 10.1016/j.cirp.2009.03.091

[7] Azushima A., Uda K., Yanagida A., (2012) Friction behavior of aluminum-coated 22MnB5 in hot stamping under dry and lubricated conditions. Journal of Materials Processing Technology 212: 1014–1021.

DOI: 10.1016/j.jmatprotec.2011.12.009

[8] Hardell J., Prakash B., (2008) High-temperature friction and wear behaviour of different tool steels during sliding against Al–Si-coated high-strength steel. Tribology International, 41: 663- 671.

DOI: 10.1016/j.triboint.2007.07.013

[9] Ghiotti A., F. Sgarabotto F., Bruschi S. (2013) A novel approach to wear testing in hot stamping of high strength boron steel sheets. Wear 302: 1319–1326.

DOI: 10.1016/j.wear.2012.12.051

[10] F. Sgarabotto, DIMEG International Report 09/ (42) (2011) 30–50.

[11] L. Pelcastre, J. Hardell, N. Herrera, B. Prakash, Investigation into the occur- rence of galling during hot forming of Al–Si-coated high-strength steel, Proceedings of the Institution of Mechanical Engineers, Part J: Journal of Engineering Tribology 225 (2010).

DOI: 10.1177/1350650111398313
