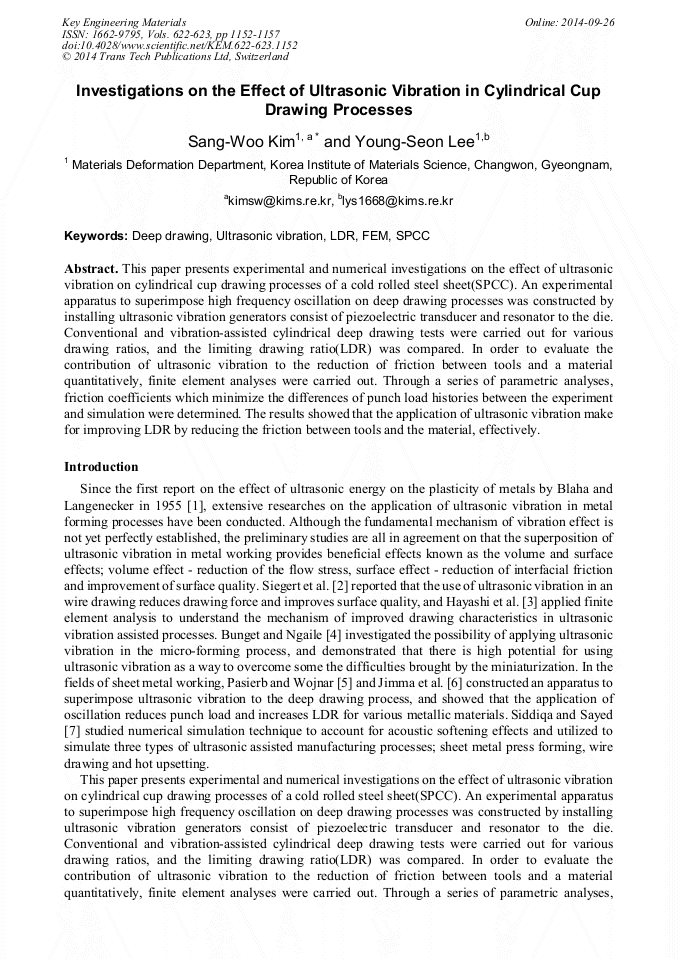

Investigations on the Effect of Ultrasonic Vibration in Cylindrical Cup Drawing Processes

Abstract:

This paper presents experimental and numerical investigations on the effect of ultrasonic vibration on cylindrical cup drawing processes of a cold rolled steel sheet (SPCC). An experimental apparatus to superimpose high frequency oscillation on deep drawing processes was constructed by installing ultrasonic vibration generators consist of piezoelectric transducer and resonator to the die. Conventional and vibration-assisted cylindrical deep drawing tests were carried out for various drawing ratios, and the limiting drawing ratio (LDR) was compared. In order to evaluate the contribution of ultrasonic vibration to the reduction of friction between tools and a material quantitatively, finite element analyses were carried out. Through a series of parametric analyses, friction coefficients which minimize the differences of punch load histories between the experiment and simulation were determined. The results showed that the application of ultrasonic vibration make for improving LDR by reducing the friction between tools and the material, effectively.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 1152-1157
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.1152
• Online since: September 2014
• Authors: Sang Woo Kim*, Young Seon Lee
• Keywords: Deep Drawing, FEM, LDR, SPCC, Ultrasonic Vibration

References

[1] F. Blaha, B. Langenecker, Tensile deformation of zinc crystal under ultrasonic vibration, Naturwissenschaften 42 (1955) 556.

[2] K. Siegert and A. Möck, Wire drawing with ultrasonically oscillating dies, J. Mater. Proc. Technol. 60 (1996) 657-660.

DOI: 10.1016/0924-0136(96)02401-6

[3] M. Hayashi, M. Jin, S. Thipprakmas, M. Murakawa, J.C. Hung, Y.C. Tsa and C.H. Hung, Simulation of ultrasonic-vibration drawing using the finite element method (FEM), J. Mater. Proc. Technol. 140 (2003) 30-35.

DOI: 10.1016/s0924-0136(03)00699-x

[4] C. Bunget and G. Ngaile, Influence of ultrasonic vibration on micro-extrusion, Ultrasonics 51 (2011) 606–616.

DOI: 10.1016/j.ultras.2011.01.001

[5] Pasierb and A. Wojnar, An experimental investigation of deep drawing and drawing processes of thin-walled products with utilization of ultrasonic vibrations, J. Mater. Proc. Technol. 34 (1992) 489-494.

DOI: 10.1016/0924-0136(92)90145-i

[6] T. Jimma, Y. Kasuga, N. Iwaki, O. Miyazawa, E. Mori, K. Ito, H. Hatano, An application of ultrasonic vibration to the deep drawing process, J. Mater. Proc. Technol. 80-81 (1998) 406-412.

DOI: 10.1016/s0924-0136(98)00195-2

[7] A. Siddiq, T.E. Sayed, Ultrasonic-assisted manufacturing processes: Variational model and numerical simulations, Ultrasonics 52 (2012) 521–529.

DOI: 10.1016/j.ultras.2011.11.004

[8] Y. Liu, Q. Han and L. Hua, Finite element simulation analysis of the ultrasonic vibration forging of an aluminum cylinder workpiece, Light Metals 2012 (2012) 259-264.

DOI: 10.1007/978-3-319-48179-1_45

[9] R. Hill, A theory of the yielding and plastic flow of anisotropic metals, in: Proceeding of the Royal Society, London A 193 (1948) 281–297.
