Formability Improvement Technique for Heated Sheet Metal Forming by Partial Cooling

Abstract:

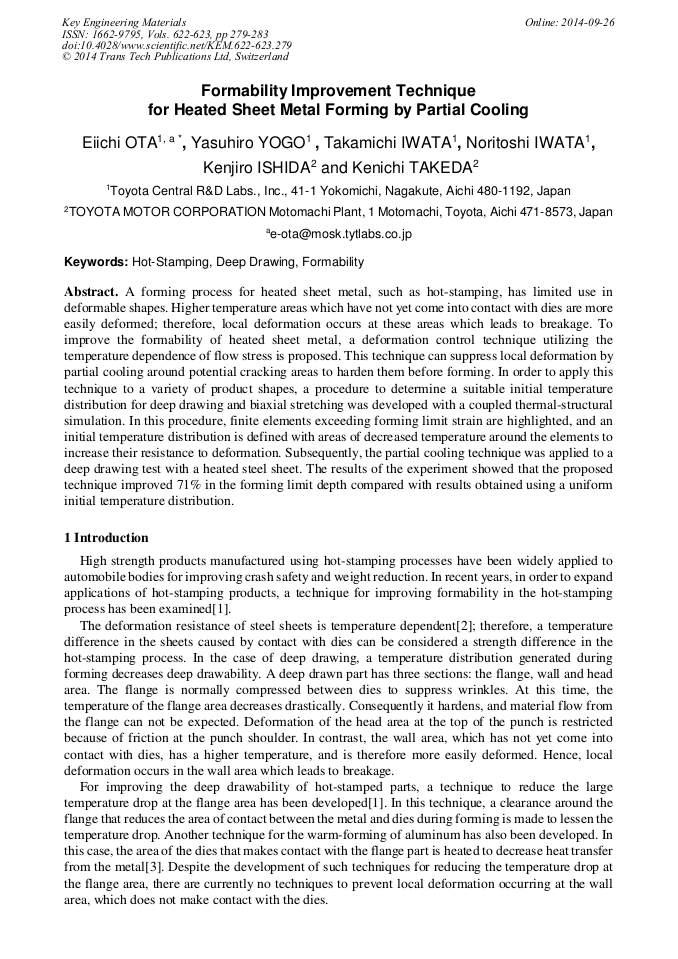

A forming process for heated sheet metal, such as hot-stamping, has limited use in deformable shapes. Higher temperature areas which have not yet come into contact with dies are more easily deformed; therefore, local deformation occurs at these areas which leads to breakage. To improve the formability of heated sheet metal, a deformation control technique utilizing the temperature dependence of flow stress is proposed. This technique can suppress local deformation by partial cooling around potential cracking areas to harden them before forming. In order to apply this technique to a variety of product shapes, a procedure to determine a suitable initial temperature distribution for deep drawing and biaxial stretching was developed with a coupled thermal structural simulation. In this procedure, finite elements exceeding forming limit strain are highlighted, and an initial temperature distribution is defined with areas of decreased temperature around the elements to increase their resistance to deformation. Subsequently, the partial cooling technique was applied to a deep drawing test with a heated steel sheet. The results of the experiment showed that the proposed technique improved 71% in the forming limit depth compared with results obtained using a uniform initial temperature distribution.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 279-283
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.279
• Online since: September 2014
• Authors: Eiichi Ota*, Yasuhiro Yogo, Takamichi Iwata, Noritoshi Iwata, Kenjiro Ishida, Kenichi Takeda
• Keywords: Deep Drawing, Formability, Hot-Stamping

References

[1] Maeno,T., Mori,K., Nagai,T.: Improvement in Formability of Steel Sheets by Preventing Decrease in Temperature of Flange Portion in Hot Stamping, J. of the JSTP 53, 1013-1017 (2012).

DOI: 10.9773/sosei.53.1013

[2] Yogo,Y. et al.: Mesurement of Flow Stress in Supercooled Austenite for High Hardenability Steel. Metallurgical and Materials Transactions A 43, 893-899 (2012).

DOI: 10.1007/s11661-011-0919-1

[3] Naka,T., Yoshida,F.: Deep drawability of type 5083 aluminium-magnesium alloysheet under various conditions oftemperature and forming speed, J. of Mat. Proc. Technology 89-90, 19-23 (1999).

DOI: 10.1016/s0924-0136(99)00057-6

[4] Kusumi,K. et al.: Draw-Bending Formability of Steel Sheets in Hot Stamping Process. 3rd International Conference Proceedings Hot Sheet Metal Forming of High Performance Steel, 107-113 (2011).
