Fundamental Investigation for Tensile Test Using Conical Cupping Die

Abstract:

A number of researches have conducted in order to evaluate the ductile fracture occurrence by using forming limit diagram. However, specimen shape and testing machine for obtaining forming limit diagram of sheet metal have some problems. The problem about specimen shape is occurring at the specimen edge. In uniaxial tensile test, the specimen edge may cause a defused neck in width direction and may have influence on fracture occurrence. In biaxial tensile test by using a cruciform specimen, a uniform biaxial deformation is not obtained because uniaxial tensile stress occurs at the specimen edge. Tensile test by using a specimen which does not have such edges should carry out, for example, in bulge test and multi-axial tube expansion test, specimens without edge are used. However, these methods need special machines. Therefore, new biaxial tensile testing method is required. By this method, materials deform depending on biaxial strain state by using popular pressing machines.

You might also be interested in these eBooks

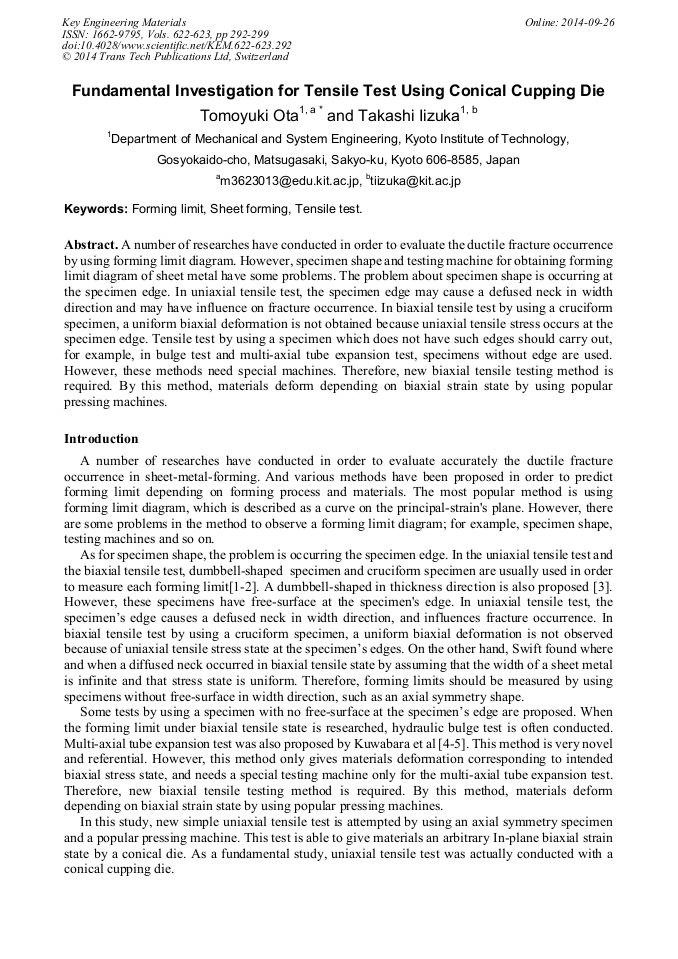

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 622-623)

Pages:

292-299

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.622-623.292

Citation:

Cite this paper

Online since:

September 2014

Authors:

Tomoyuki Ota*, Takashi Iizuka

Keywords:

Forming Limit, Sheet Forming, Tensile Test

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Hanabusa, H. Takizawa, T. Kuwabara: Evaluation of accuracy of stress measurements determined in biaxial stress tests with cruciform specimen using numerical method, Steel Research Int., 81 (2010), 1376-1379.

Google Scholar

[2] T. Kuwabara, A. Van Bael, E. Iizuka: Measurement and analysis of yield locus and work hardening characteristics of steel sheets with different r-values, Acta Materiaria, 50(2002), 3717-3729.

DOI: 10.1016/s1359-6454(02)00184-2

Google Scholar

[3] H. Usui, T. Iizuka: Numerical calculation of tensile test using a dumbbell-shaped in the thickness direction, XII International conference on computational plasticity fundamentals and applications, (2013), CD-ROM.

Google Scholar

[4] M. Strano, T. Altan: An inverse energy approach to determine the flow stress of tubular materials for hydroforming applications, Journal of Materials Processing Technology, 146 (2004) 92-96.

DOI: 10.1016/j.jmatprotec.2003.07.016

Google Scholar

[5] T. Hakoyama, T. Kuwabara: Biaxial tensile test of high strength steel sheet for large plastic strain range, Key Engineering Materials, 504-506 (2012) 59-64.

DOI: 10.4028/www.scientific.net/kem.504-506.59

Google Scholar
