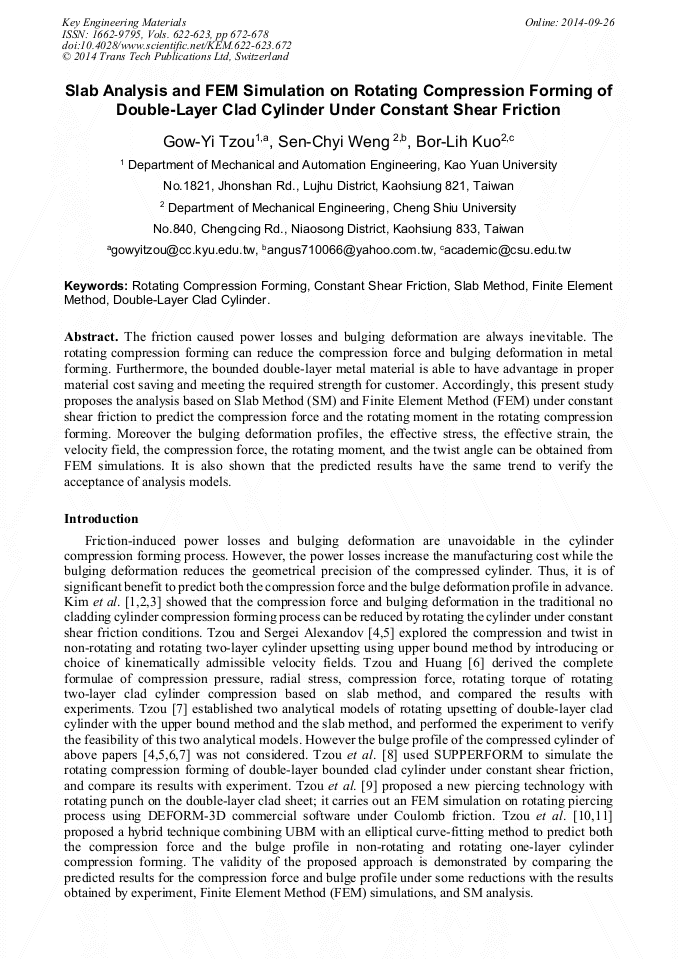

Slab Analysis and FEM Simulation on Rotating Compression Forming of Double-Layer Clad Cylinder under Constant Shear Friction

Abstract:

The friction caused power losses and bulging deformation are always inevitable. The rotating compression forming can reduce the compression force and bulging deformation in metal forming. Furthermore, the bounded double-layer metal material is able to have advantage in proper material cost saving and meeting the required strength for customer. Accordingly, this present study proposes the analysis based on Slab Method (SM) and Finite Element Method (FEM) under constant shear friction to predict the compression force and the rotating moment in the rotating compression forming. Moreover the bulging deformation profiles, the effective stress, the effective strain, the velocity field, the compression force, the rotating moment, and the twist angle can be obtained from FEM simulations. It is also shown that the predicted results have the same trend to verify the acceptance of analysis models.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 672-678
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.672
• Online since: September 2014
• Authors: Gow Yi Tzou*, Sen Chyi Weng, Bor Lih Kuo
• Keywords: Constant Shear Friction, Double-Layer Clad Cylinder, Finite Element Method (FEM), Rotating Compression Forming, Slab Method

References

[1] Y. H. Kim, J. H. Park, Y. E. Jin, An Analysis of Plastic Deformation Processes for Twist-assisted Upset Forging of Cylindrical Billets, Proc. of AMPT1999, pp.79-86.

[2] Y. H. Kim, J. H. Park, Y. E. Jin, An Upper Bound Analysis for Torsional Upset Forging of Cylindrical Billets, Adv. Technol. Plasticity II, 1999, pp.859-863.

[3] Y. H. Kim, Y. E. Jin, J. H. Park, Y. Lee, An Analysis of the Torsional Forming Process Using the Dual Stream Function, Proceedings of the 8th International Conference on Metal Forming, 2000, pp.741-745.

[4] G. Y. Tzou, Sergei Alexandrov, An Upper Bound Solution for Upsetting of Two-Layer Cylinder, Materials Science Forum Vols. 505-507, January 2006, pp.1303-1308.

DOI: 10.4028/www.scientific.net/msf.505-507.1303

[5] G. Y. Tzou, Sergei Alexandrov, An Upper Bound Solution for a Two-Layer Cylinder Subject to Compression and Twist, Key Engineering Materials Vols. 345-346, 2007, pp.37-40.

DOI: 10.4028/www.scientific.net/kem.345-346.37

[6] G. Y. Tzou, M. N. Huang, Study on Rotating Compression of Two-Layer Clad Cylinder with Constant Shear Friction, Steel Research int. 79, Special Edition Metal Forming Conference Vol. 2, 2008, pp.748-755.

[7] G. Y. Tzou, Upper Bound Method and Slab Method with Experiment on Rotating Upsetting of Double-Layer Clad Cyliner, Advanced Science Letters Vol. 9, 2012, pp.785-789.

DOI: 10.1166/asl.2012.2577

[8] G. Y. Tzou, M. N. Huang, W. S. Lee, FEM Simulation on Rotating Compression Forming of Double-Layer Bounded Clad Cylinder, Precision Machinery and Manufacturing Technology-PMMT 2008, May 18- May 20, p. C79-01.

[9] G. Y. Tzou, Y. M. Huang, H. Y. Teng, FEM Simulation on Rotating Piercing Process of Double-Layer Clad Sheet With Coulomb Friction, The 9th International Conference and Workshop on Numerical Simulation of 3D Sheet Metal Forming Processes(Mini-symposia 17), January 6-10, NUMISHEET2014.

DOI: 10.1063/1.4850159

[10] G. Y. Tzou, S. C. Weng, B. L. Kuo, Bulging Investigation of Cylinder Compression Forming Using Upper Bound Analysis, Proceedings of the 16th International Conference on Advances in Materials and Processing Technologies (paper ID: 87), AMPT (2013).

DOI: 10.4028/www.scientific.net/amr.939.283

[11] Gow-Yi Tzou, Bor-Lih Kuo, Sen-Chyi Weng, Study on Bulging Behavior of Rotating Cylinder Compression Forming Based on Upper Bound Method and Experiment, The 9th International Conference and Workshop on Numerical Simulation of 3D Sheet Metal Forming Processes(Mini-symposia 17), January 6-10, NUMISHEET2014.

DOI: 10.1063/1.4850163
