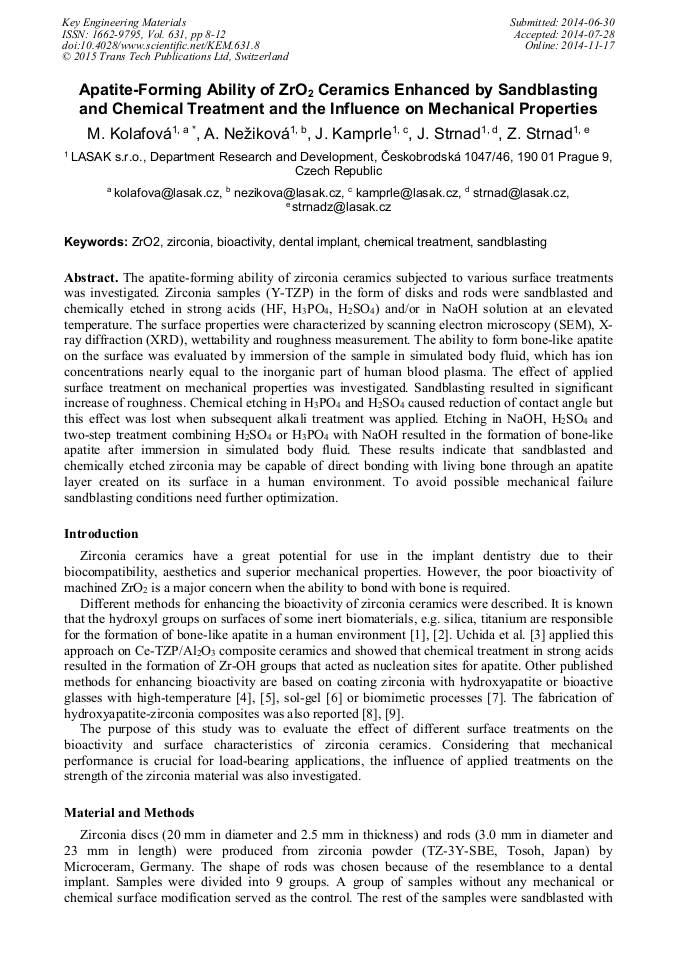

Apatite-Forming Ability of ZrO₂ Ceramics Enhanced by Sandblasting and Chemical Treatment and the Influence on Mechanical Properties

Abstract:

The apatite-forming ability of zirconia ceramics subjected to various surface treatments was investigated. Zirconia samples (Y-TZP) in the form of disks and rods were sandblasted and chemically etched in strong acids (HF, H₃PO₄, H₂SO₄) and/or in NaOH solution at an elevated temperature. The surface properties were characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD), wettability and roughness measurement. The ability to form bone-like apatite on the surface was evaluated by immersion of the sample in simulated body fluid, which has ion concentrations nearly equal to the inorganic part of human blood plasma. The effect of applied surface treatment on mechanical properties was investigated. Sandblasting resulted in significant increase of roughness. Chemical etching in H₃PO₄ and H₂SO₄ caused reduction of contact angle but this effect was lost when subsequent alkali treatment was applied. Etching in NaOH, H₂SO₄ and two-step treatment combining H₂SO₄ or H₃PO₄ with NaOH resulted in the formation of bone-like apatite after immersion in simulated body fluid. These results indicate that sandblasted and chemically etched zirconia may be capable of direct bonding with living bone through an apatite layer created on its surface in a human environment. To avoid possible mechanical failure sandblasting conditions need further optimization.

• Periodical: Key Engineering Materials (Volume 631)
• Pages: 8-12
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.631.8
• Online since: November 2014
• Authors: M. Kolafová*, A. Nežiková, J. Kamprle, J. Strnad, Z. Strnad
• Keywords: Bioactivity, Chemical Treatment, Dental Implant, Sandblasting, Zirconia, Zro₂

References

[1] P. Li, Ch. Ohtsuki, T. Kokubo, K. Nakanishi, N. Soga, K. de Groot, The role of hydrated silica, titania, and alumina in inducing apatite on implants, J. Biomed. Mater. Res. 28 (1994) 7–15.

DOI: 10.1002/jbm.820280103

[2] L.L. Hench, Bioactive ceramics, in P. Ducheyne, J.E. Lemons (Eds. ), Bioceramics: Materials Characteristics Versus In Vivo Behavior, vol. 523, Ann. N.Y. Acad. Sci., New York, 1988, p.54–71.

DOI: 10.1111/j.1749-6632.1988.tb38500.x

[3] M. Uchida, H-M. Kim, T. Kokubo, M. Nawa, T. Asano, K. Tanaka, T. Nakamura, Apatite-forming ability of zirconia/alumina nano-composite induced by chemical treatment, J. Biomed. Mater. Res. 60 (2002) 277-282.

DOI: 10.1002/jbm.10071

[4] T. Suzuki, S. Fujibayashi, Y. Nakagawa, I. Noda, T. Nakamura, Ability of zirconia double coated with titanium and hydroxyapatite to bond to bone under load-bearing conditions Biomaterials 27 (2006) 996–1002.

DOI: 10.1016/j.biomaterials.2005.07.026

[5] H-W. Kim, G. Georgiou, J.C. Knowles, Y-H. Koh, H.E. Kim, Calcium phosphates and glass composite coatings on zirconia for enhanced biocompatibility, Biomaterials 25, (2004) 4203–4213.

DOI: 10.1016/j.biomaterials.2003.10.094

[6] H-W. Kim, Y-M. Kong, Ch-J. Bae, Y-J. Noh, H-E. Kim, Sol-gel derived fluor-hydroxyapatite biocoatings on zirconia substrate, Biomaterials 25 (2004) 2919–2926.

DOI: 10.1016/j.biomaterials.2003.09.074

[7] S. Klopčič, J. Kovač, T. Kosmač, Apatite forming ability of alumina and zirconia ceramics in a supersaturated Ca-P solution, Biomol. Eng. 24 (2007) 467-471.

DOI: 10.1016/j.bioeng.2007.07.009

[8] J. Zhang, M. Iwasa, N. Kotobuki, T. Tanaka, M. Hirose, H. Ohgushi, D. Jiang, Fabrication of hydroxyapatite-zirconia composites for orthopedic applications, J. Am. Ceram. Soc. 89 (2006) 3348-3355.

DOI: 10.1111/j.1551-2916.2006.01237.x

[9] M. Inuzuka, S. Nakamura, S. Kishi, K. Yoshida, K. Hashimoto, Y. Toda, K. Yamashita, Hydroxyapatite-doped zirconia for preparation of biomedical composites ceramics, Solid State Ionics 172 (2004) 509-513.

DOI: 10.1016/j.ssi.2004.01.054

[10] R.C. Garvie, P.S. Nicholson, Phase analysis in zirconia systems, J. Amer. Ceram. Soc. 55 (1972) 303-305.

[11] T. Sriamporn, N. Thamrongananskul, Ch. Busabok, S. Poolthong, M. Uo, J. Tagami, Dental zirconia can be etched by hydrofluoric acid, Dent. Mater. J. 33 (2014) 79-85.

DOI: 10.4012/dmj.2013-243

[12] T. Kosmač, C. Oblak, P. Jevnikar, N. Funduk, L. Marion, The effect of surface grinding and sandblasting on flexural strength and reliability of Y-TZP zirconia ceramic, Dent. Mater. 15 (1999) 426-433.

DOI: 10.1016/s0109-5641(99)00070-6

[13] M. Guazzato, L. Quach, M. Albakry, M.V. Swain, Influence of surface and heat treatments on the flexural strength of Y-TZP dental ceramic, J. Dent. 33 (2005) 9-18.

DOI: 10.1016/j.jdent.2004.07.001
