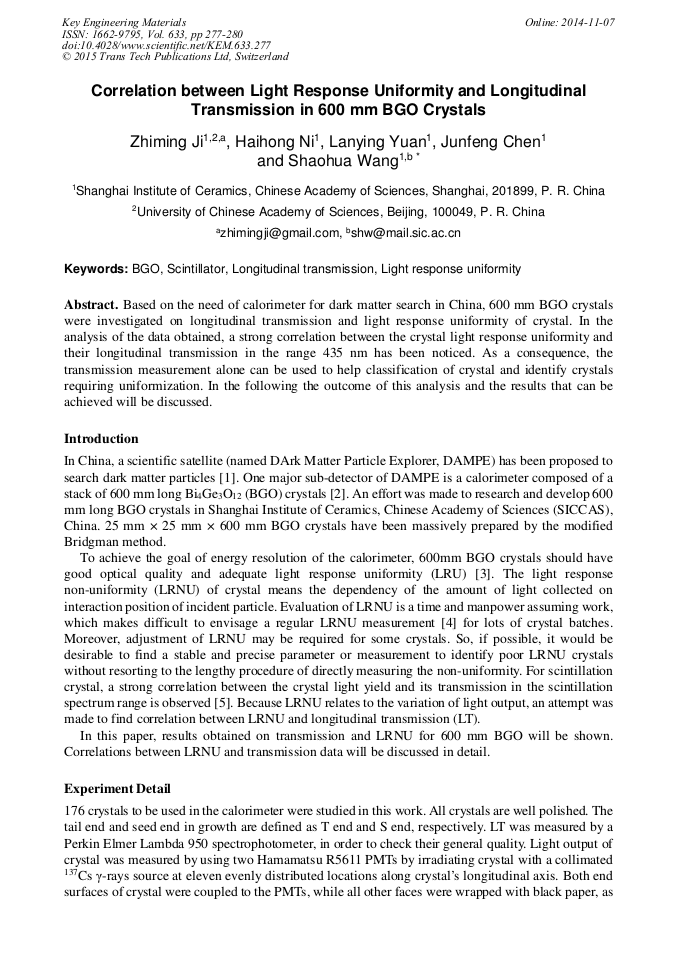

Correlation between Light Response Uniformity and Longitudinal Transmission in 600 mm BGO Crystals

Abstract:

Based on the need of calorimeter for dark matter search in China, 600 mm BGO crystals were investigated on longitudinal transmission and light response uniformity of crystal. In the analysis of the data obtained, a strong correlation between the crystal light response uniformity and their longitudinal transmission in the range 435 nm has been noticed. As a consequence, the transmission measurement alone can be used to help classification of crystal and identify crystals requiring uniformization. In the following the outcome of this analysis and the results that can be achieved will be discussed.

You might also be interested in these eBooks

Testing and Evaluation of Inorganic Materials V

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 633)

Pages:

277-280

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.633.277

Citation:

Cite this paper

Online since:

November 2014

Authors:

Zhi Ming Ji, Hai Hong Ni, Lan Ying Yuan, Jun Feng Chen, Shao Hua Wang*

Keywords:

BGO, Light Response Uniformity, Longitudinal Transmission, Scintillator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. Chang, J. Wu, High energy electron and gamma-ray observation by TANSUO mission, Proceedings of the 31st ICRC (2009).

Google Scholar

[2] J. Wu, J. Chang, Development of the Read-out System for the Prototype of Chinese High Energy Cosmic Ray Detector in Space, Proceedings of the 32nd ICRC (2011).

Google Scholar

[3] R.Y. Zhu, On quality requirements to the barium fluoride crystals, Nucl. Instr. and Meth. A Vol. 340 (1994) 442-457.

Google Scholar

[4] D. Britton, M. Ryan, X. Qu, Light collection uniformity of lead tungstate crystals for the CMS electromagnetic calorimeter, Nucl. Instr. and Meth. A Vol. 540 (2005) 273-284.

DOI: 10.1016/j.nima.2004.11.038

Google Scholar

[5] M.J. Ryan, Light Collection Uniformity of Lead Tungstate Crystals for the CMS Electromagnetic Calorimeter Endcaps, Ph. D. Dissertation, Imperial College (2003).

Google Scholar

[6] D.A. Ma, R.Y. Zhu, Light attenuation length of barium fluoride crystals, Nucl. Instr. and Meth. Vol. 333 (1993) 422-424.

Google Scholar

[7] R.H. Mao, L.Y. Zhang, R.Y. Zhu, Quality of a 28 cm Long LYSO Crystal and Progress on Optical and Scintillation Properties, IEEE Trans. Nucl. Sci. Vol. 59 (2012) 2224-2228.

DOI: 10.1109/tns.2012.2184302

Google Scholar

[8] D. Wahl, Optimization of light collection in inorganic scintillators for rare event searches, Ph.D. Dissertation, St. Catherine's College (2005).

Google Scholar
