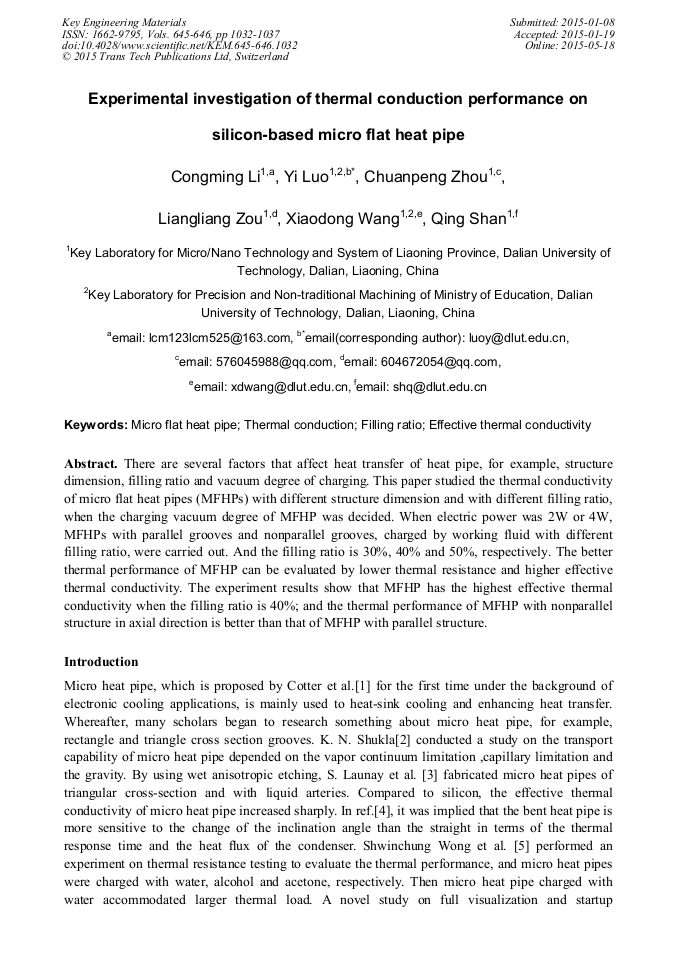

Experimental Investigation of Thermal Conduction Performance on Silicon-Based Micro Flat Heat Pipe

Abstract:

There are several factors that affect heat transfer of heat pipe, for example, structure dimension, filling ratio and vacuum degree of charging. This paper studied the thermal conductivity of micro flat heat pipes (MFHPs) with different structure dimension and with different filling ratio, when the charging vacuum degree of MFHP was decided. When electric power was 2W or 4W, MFHPs with parallel grooves and nonparallel grooves, charged by working fluid with different filling ratio, were carried out. And the filling ratio is 30%, 40% and 50%, respectively. The better thermal performance of MFHP can be evaluated by lower thermal resistance and higher effective thermal conductivity. The experiment results show that MFHP has the highest effective thermal conductivity when the filling ratio is 40%; and the thermal performance of MFHP with nonparallel structure in axial direction is better than that of MFHP with parallel structure.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 1032-1037
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.1032
• Online since: May 2015
• Authors: Cong Ming Li, Yi Luo*, Chuan Peng Zhou, Liang Liang Zou, Xiao Dong Wang, Qing Shan
• Keywords: Effective Thermal Conductivity, Filling Ratio, Micro Flat Heat Pipe, Thermal Conduction

References

[1] Cotter, T. P., Principles and Prospects of the Micro Heat Pipes, Proceedings of the Eighth Heat Pipe Conference, 1984, p.328–335.

[2] K. N. Shukla, Heat Transfer Limitation of a Micro Heat Pipe, Journal of Electronic Packaging, 131(2009) 024502/1–024502/3.

DOI: 10.1115/1.3103970

[3] S. Launay, V. Sartre, M. Lallemand, Experimental study on silicon micro-heat pipe arrays, Applied Thermal Engineering, 24 (2004) 233–243.

DOI: 10.1016/j.applthermaleng.2003.08.003

[4] Junye Wang, Experimental investigation of the transient thermal performance of a bent heat pipe with grooved surface, Applied Energy, 86 (2009) 2030–(2037).

DOI: 10.1016/j.apenergy.2009.01.003

[5] Shwinchung Wong, Yuchung Lin, Jhan-Hong Liou, Visualization and evaporator resistance measurement in heat pipes charged with water, methanol or acetone, International Journal of Thermal Sciences, 52 (2012) 154-160.

DOI: 10.1016/j.ijthermalsci.2011.09.020

[6] Zhihu Xue, Wei Qun, Minghui Xie, Full visualization and startup performance of an ammonia pulsating heat pipe, Propulsion and Power Research, 4 (2013) 2: 263–268.

DOI: 10.1016/j.jppr.2013.11.003

[7] Kuan-Ting Lin, Shwin-Chung Wong, Performance degradation of flattened heat pipes, Applied Thermal Engineering, 50 (2013) 46-54.

[8] Xiaodong Wang, Gang Liu, Liangliang Zou, Yi Luo, Vacuum fluid charging and packaging technique for micro heat pipes, 14th International Conference on Electronic Packaging Technology (ICEPT), Dalian, China, Piscataway, NJ, USA IEEE press (2013).

DOI: 10.1109/icept.2013.6756418

[9] Yi Luo, Gang Liu, Liang-liang Zou, Yan-xia Yang, Xiao-dong Wang, Experimental investigation of micro heat pipes for high-power light-emitting diode modules, Micro &Nano Letters 2013, 8(10): 646-649.

DOI: 10.1049/mnl.2013.0258

[10] Y.J. Youn, S.J. Kim, Fabrication and evaluation of a slicon-based micro pulsating heat spreader, Sens. Actuators A: Phys. (2011), doi: 10. 1016/j. sna. 2011. 12. 006.

DOI: 10.1016/j.sna.2011.12.006

[11] Xiang-you Lu, Tse-Chao Hua, Mei-jing Liu. Thermal analysis of loop heat pipe used for high-power LED, Thermochimica Acta, 2009, 493: 25–29.

DOI: 10.1016/j.tca.2009.03.016
