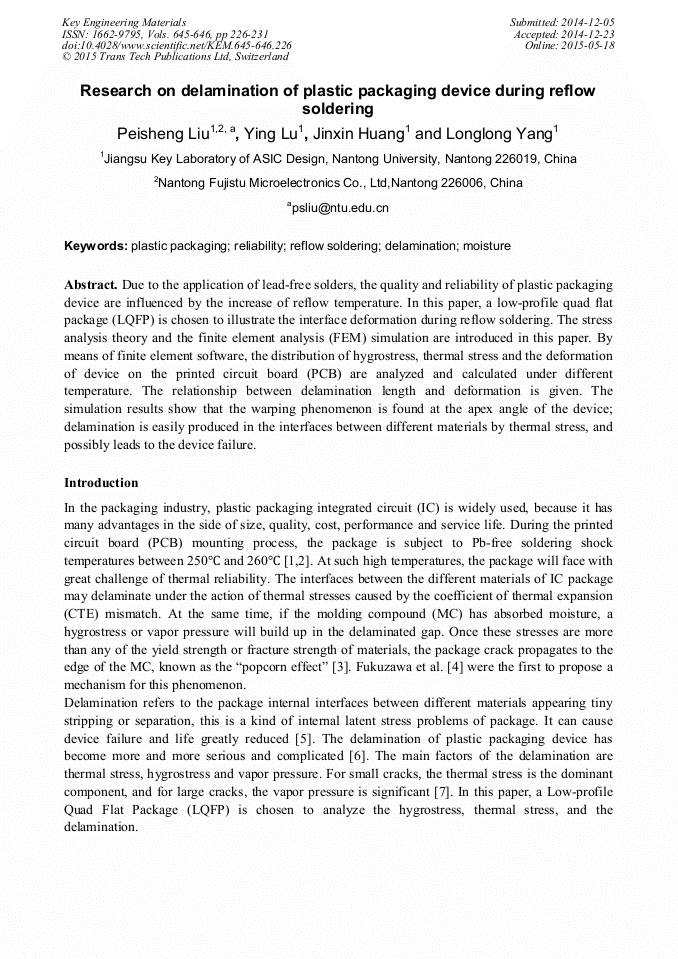

Research on Delamination of Plastic Packaging Device during Reflow Soldering

Abstract:

Due to the application of lead-free solders, the quality and reliability of plastic packaging device are influenced by the increase of reflow temperature. In this paper, a low-profile quad flat package (LQFP) is chosen to illustrate the interface deformation during reflow soldering. The stress analysis theory and the finite element analysis (FEM) simulation are introduced in this paper. By means of finite element software, the distribution of hygrostress, thermal stress and the deformation of device on the printed circuit board (PCB) are analyzed and calculated under different temperature. The relationship between delamination length and deformation is given. The simulation results show that the warping phenomenon is found at the apex angle of the device; delamination is easily produced in the interfaces between different materials by thermal stress, and possibly leads to the device failure.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 226-231
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.226
• Online since: May 2015
• Authors: Pei Sheng Liu*, Ying Lu, Jin Xin Huang, Long Long Yang
• Keywords: Delamination, Moisture, Plastic Packaging, Reflow Soldering, Reliability

References

[1] P. Alpern and K.C. Lee, A simple model for the mode II popcorn effect in thin plastic IC packages, 2003 41st IEEE International Reliability Physics Symposium Proceedings, (2003) 452-457.

DOI: 10.1109/relphy.2003.1197790

[2] C. Yuan and L. Ping, The popcorn effect" of plastic encapsulated microelectronic devices and the typical cases study, 2011 International Conference on Quality, Reliability, Risk, Maintenance, and Safety Engineering, Xi, an, Shanxi, China, (2011).

DOI: 10.1109/icqr2mse.2011.5976658

[3] P. Alpern and C.L. Kheng, Moisture-Induced Delamination in Plastic Encapsulated Microelectronic Devices: A Physics of Failure Approach, IEEE Transactions on Device and Materials Reliability, vol. 8, (2008) 478-483.

DOI: 10.1109/tdmr.2008.2002340

[4] I. Fukuzawa, S. Ishiguro and S. Nanbu, Moisture Resistance Degradation of Plastic LSIs by Reflow Soldering, 1985 23rd Annual Reliability Physics Symposium, Orlando, FL, USA, (1985) 192-197.

DOI: 10.1109/irps.1985.362097

[5] L. Yumin, L. Yong, S. Belani, and J. Oseob, Investigation of interface delamination in a SO8 package under reflow, 2012 13th International Conference on Thermal, Mechanical and Multi-Physics Simulation and Experiments in Microelectronics and Microsystems, Cascais, (2012).

DOI: 10.1109/esime.2012.6191788

[6] A. Yadur, P. Gromala, S. Green, and K. Mat Daud, Investigation of interface delamination of EMC-copper interfaces in molded electronic packages, 2013 14th International Conference on Thermal, Mechanical and Multi-Physics Simulation and Experiments in Microelectronics and Microsystems, Wroclaw, (2013).

DOI: 10.1109/eurosime.2013.6529996

[7] A.A.O. Tay, Modeling of delamination in IC packages, 2012 13th International Conference on Electronic Packaging Technology and High Density Packaging, Guilin, Guangxi, China, (2012) 854-860.

DOI: 10.1109/icept-hdp.2012.6474744

[8] A.A.O. Tay, Modeling of interfacial delamination in plastic IC packages under hygrothermal loading, Journal of Electronic Packaging, vol. 127, (2005) 268-275.

DOI: 10.1115/1.1938209

[9] J.E. Galloway and B.M. Miles, Moisture absorption and desorption predictions for plastic ball grid array packages, IEEE Transactions on Components, Packaging, and Manufacturing Technology, Part A, vol. 20, (1997) 274-279.

DOI: 10.1109/95.623021

[10] H. Guojun, R. Rossi, L. Jing-En, and X. Baraton, Interface delamination analysis of TQFP package during solder reflow, Microelectronics Reliability, vol. 50, (2010) 1014-1020.

DOI: 10.1016/j.microrel.2010.03.012

[11] E.H. Wong, S.W. Koh, K.H. Lee, and R. Rajoo, Advanced moisture diffusion modeling and characterisation for electronic packaging, 2002 52nd Electronic Components and Technology Conference Proceedings, (2002) 1297-1303.

DOI: 10.1109/ectc.2002.1008273

[12] T.F. Lam, FEA simulation on moisture absorption in PBGA packages under various moisture pre-conditioning, 2000 50th Electronic Components & Technology Conference Proceedings, Las Vegas, NV, (2000) 1078-1082.

DOI: 10.1109/ectc.2000.853303
