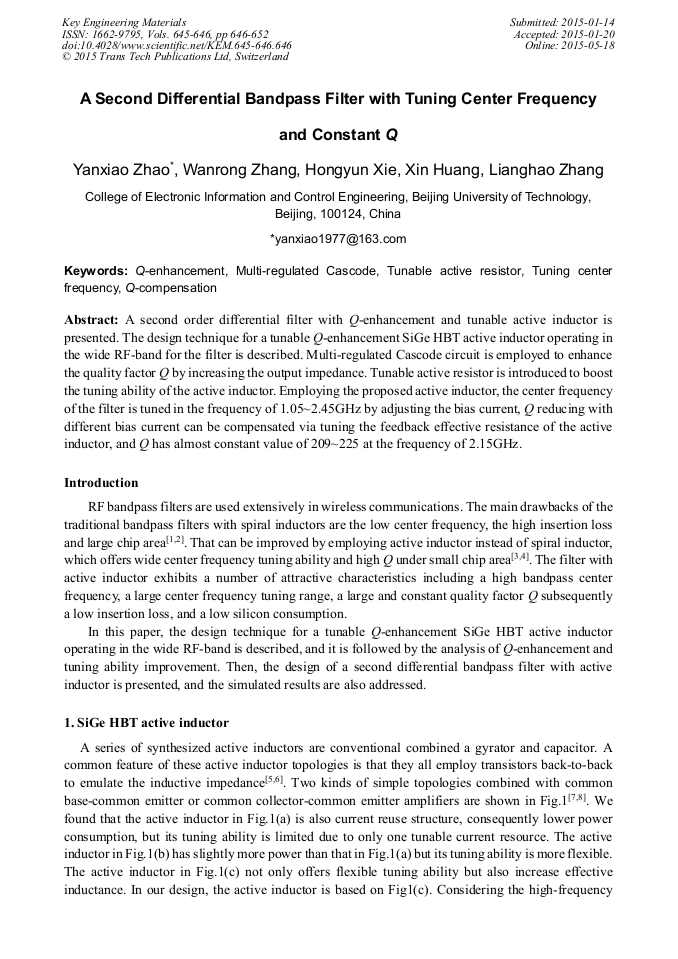

A Second Differential Bandpass Filter with Tuning Center Frequency and Constant Q

Abstract:

A second order differential filter with Q-enhancement and tunable active inductor is presented. The design technique for a tunable Q-enhancement SiGe HBT active inductor operating in the wide RF-band for the filter is described. Multi-regulated Cascode circuit is employed to enhance the quality factor Q by increasing the output impedance. Tunable active resistor is introduced to boost the tuning ability of the active inductor. Employing the proposed active inductor, the center frequency of the filter is tuned in the frequency of 1.05~2.45GHz by adjusting the bias current, Q reducing with different bias current can be compensated via tuning the feedback effective resistance of the active inductor, and Q has almost constant value of 209~225 at the frequency of 2.15GHz.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 646-652
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.646
• Online since: May 2015
• Authors: Yan Xiao Zhao*, Wan Rong Zhang, Hong Yun Xie, Xin Huang, Liang Hao Zhang
• Keywords: Multi-Regulated Cascode, Q- Compensation, Q- Enhancement, Tunable Active Resistor, Tuning Center Frequency

References

[1] Kacar F, Yesil A. Novel grounded parallel inductance simulators realization using a minimum number of active and passive components [J]. Microelectronics Journal, 2010(41): 632–638.

DOI: 10.1016/j.mejo.2010.06.011

[2] CaoYu, Robert A. Groves, Xuejue Huang, et al. Frequency-independent equivalent-circuit model for on-chip spiral inductors[J]. IEEE Journal of Solid-State Circuits, 2003, 38(3): 419-426.

DOI: 10.1109/jssc.2002.808285

[3] Andersson S, Svensson C. An active recursive RF filter in 0. 35μm BiCMOS [J]. Analog Integrated Circuits and Signal Processing, 2005, 12: 213-218.

DOI: 10.1007/s10470-005-3002-2

[4] Cristian A, Liviu G. On the tuning possibilities of an RF bandpass filter with simulated inductor[C]. Proceedings of the International Semiconductor Conference, CAS. Sinaia, Romania, 2007: 489-492.

DOI: 10.1109/smicnd.2007.4519767

[5] Bakken T, Choma J. Gyrator-Based synthesis of active on-chip inductances [J]. Analog Integrated Circuits and Signal Processing, 2003, 34(3): 171-181.

DOI: 10.1023/a:1022524630707

[6] Thanachayanont A. CMOS transistor-only active inductor for IF/RF applications [C]/International Conference on Industrial Technology. Bankok, Thailand, 2002, 12: 1909-(1912).

DOI: 10.1109/icit.2002.1189346

[7] Y. Wu, M. Ismail, H. Olsson. CMOS VHF/RF CCO based on active inductors[J]. IEEE Electronics Letters, 2001, 37(8): 472–473.

DOI: 10.1049/el:20010347

[8] C. Hsiao, C. Kuo, C. Ho, Y. Chan. Improved quality factor of 0. 18μm CMOS active inductor by a feedback resistance design [J]. IEEE Microwave and Wireless Components Letters, 2002, 12(2): 467–469.

DOI: 10.1109/lmwc.2002.805931

[9] Palr. Gray, Paulj. Hurst, Stephevh. Lewis, et al. Ayalysis and design of analog integrated circuits [M]. Higher Education Press, 2005: 194-197.

[10] Yuan F. CMOS current-mode circuits for data communications. New York: Springer Science-t-Business Media. (2007).
