Multi-Chip Module Design of a MEMS Air Pressure Sensor

Guang Xiu Yao; Han Yu Du; Qing An Huang; Meng Nie

doi:10.4028/www.scientific.net/KEM.645-646.636

Paper Titles

An Integrated Pressure and Magnetic Field Sensor Based on Piezoresistance Effect
p.610

The SOI Micro-Accelerometer Fabricated by Sacrificial Process
p.616

Noise Analysis of Silicon Microgyroscope's Transimpedance Amplifier Interface Circuit
p.624

Micromachined Tri-Axis Capacitive Accelerometer Based on the Single Mass
p.630

Multi-Chip Module Design of a MEMS Air Pressure Sensor
p.636

A Modulated Feedback Approach to Improve Closed Loop MEMS Accelerometer Bias Instability
p.640

A Second Differential Bandpass Filter with Tuning Center Frequency and Constant Q
p.646

Trajectory Guidance Law for MAV Based on MEMS Sensor/GPS
p.653

A Feed-Forward Sigma-Delta Modulator Applied in Silicon Gyroscope
p.657

HomeKey Engineering MaterialsKey Engineering Materials Vols. 645-646Multi-Chip Module Design of a MEMS Air Pressure...

Multi-Chip Module Design of a MEMS Air Pressure Sensor

Abstract:

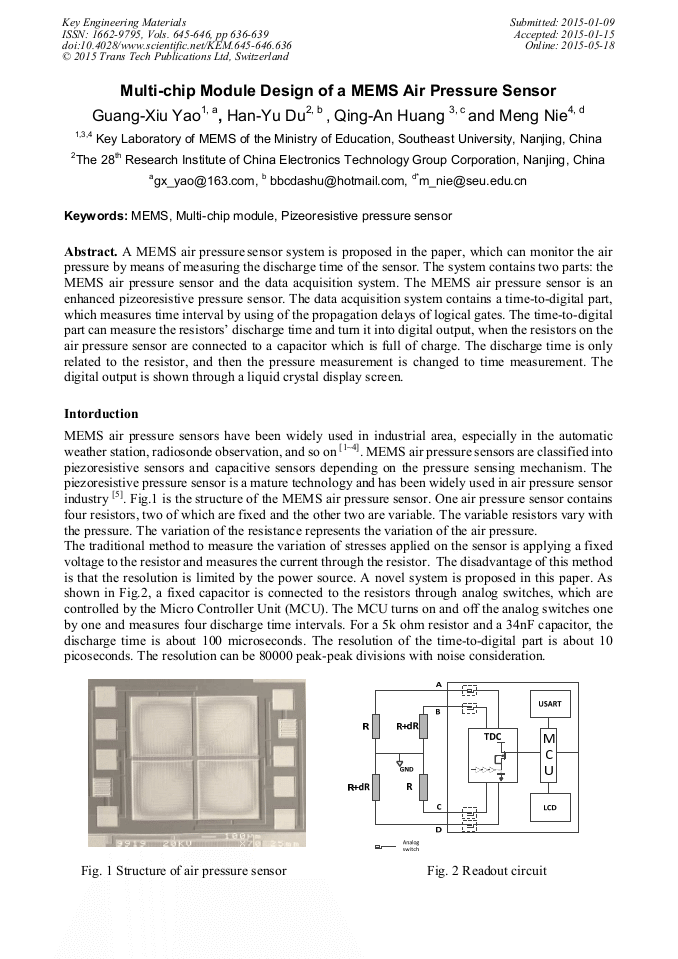

A MEMS air pressure sensor system is proposed in the paper, which can monitor the air pressure by means of measuring the discharge time of the sensor. The system contains two parts: the MEMS air pressure sensor and the data acquisition system. The MEMS air pressure sensor is an enhanced pizeoresistive pressure sensor. The data acquisition system contains a time-to-digital part, which measures time interval by using of the propagation delays of logical gates. The time-to-digital part can measure the resistors’ discharge time and turn it into digital output, when the resistors on the air pressure sensor are connected to a capacitor which is full of charge. The discharge time is only related to the resistor, and then the pressure measurement is changed to time measurement. The digital output is shown through a liquid crystal display screen.
