Locking and Enrichment Strategies

Abstract:

A short overview of different locking mechanisms is presented, in which the more recent locking phenomenon tension locking is placed. Tension locking is found during composite forming simulations and occurs when the element edges are unaligned with the fiber directions. Discontinuities in composite forming simulations show similarities with other weak discontinuities such as material interfaces and shear bands found during shear localization. Two enrichment strategies are explored to resolve tension locking in linear triangular elements.

You might also be interested in these eBooks

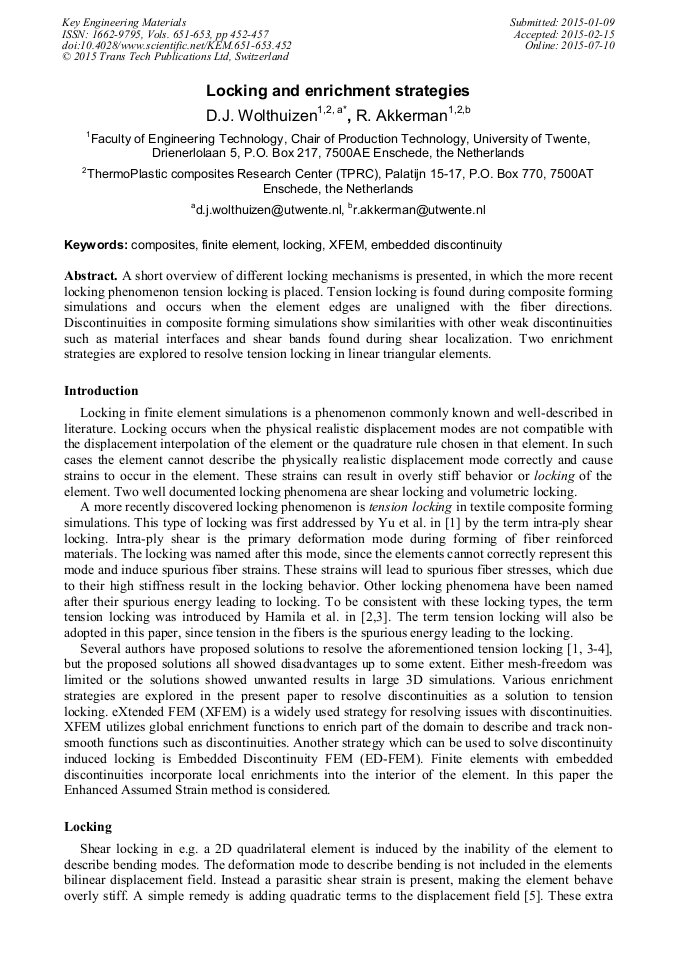

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 651-653)

Pages:

452-457

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.651-653.452

Citation:

Cite this paper

Online since:

July 2015

Authors:

D.J. Wolthuizen*, R. Akkerman

Keywords:

Composites, Embedded Discontinuity, Finite Element, Locking, XFEM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] X. Yu, B. Cartwright, D. McGuckin, L. Ye, and Y. -W. Mai, Intra-ply shear locking in finite element analyses of woven fabric forming processes, Compos. Part Appl. Sci. Manuf., vol. 37, no. 5, p.790–803, (2006).

DOI: 10.1016/j.compositesa.2005.04.024

Google Scholar

[2] N. Hamila and P. Boisse, Tension locking in finite-element analyses of textile composite reinforcement deformation textiles de composites, Comptes Rendus - Mec., vol. 341, no. 6, p.508–519, (2013).

DOI: 10.1016/j.crme.2013.03.001

Google Scholar

[3] N. Hamila and P. Boisse, Locking in simulation of composite reinforcement deformations. Analysis and treatment, Compos. Part Appl. Sci. Manuf., vol. 53, p.109–117, Oct. (2013).

DOI: 10.1016/j.compositesa.2013.06.001

Google Scholar

[4] R. H. W. ten Thije and R. Akkerman, Solutions to intra-ply shear locking in finite element analyses of fibre reinforced materials, Compos. Part Appl. Sci. Manuf., vol. 39, no. 7, p.1167–1176, Jul. (2008).

DOI: 10.1016/j.compositesa.2008.03.014

Google Scholar

[5] E. L. Wilson, R. L. Taylor, W. P. Doherty, and J. Ghaboussi, Incompatible Displacement Models, (1973).

Google Scholar

[6] D. J. Wolthuizen, R. H. W. Ten Thije, and R. Akkerman, Simple Tests as Critical Indicator of Intra-Ply Shear Locking, in Key Engineering Materials, 2013, vol. 554–557, p.512–520.

DOI: 10.4028/www.scientific.net/kem.554-557.512

Google Scholar

[7] K. Potter, Bias extension measurements on cross-plied unidirectional prepreg, Compos. Part Appl. Sci. Manuf., vol. 33, no. 1, p.63–73, Jan. (2002).

DOI: 10.1016/s1359-835x(01)00057-4

Google Scholar

[8] N. Moës, J. Dolbow, and T. Belytschko, A finite element method for crack growth without remeshing, Int. J. Numer. Methods Eng., vol. 46, no. 1, p.131–150, (1999).

DOI: 10.1002/(sici)1097-0207(19990910)46:1<131::aid-nme726>3.0.co;2-j

Google Scholar

[9] M. Ortiz, Y. Leroy, and A. Needleman, A finite element method for localized failure analysis, Comput. Methods Appl. Mech. Eng., vol. 61, no. 2, p.189–214, (1987).

DOI: 10.1016/0045-7825(87)90004-1

Google Scholar
