Low Cost Synthesis of Hydrophobic Aluminum Alloy for Self-Cleaning Applications

Abstract:

This research fabricated hydrophobic surfaces of aluminium alloy via electrochemical anodization and silane coating. The procedures consisted of electrochemical anodization in 1 and 1.5 M sulfuric acid using 12 volts dc. Anodization produced stable porous oxide layer on the surface. Aluminium alloy formed porous oxide structures with thickness in micrometer regime. The thickness of the porous layer was affected by the anodizing conditions such as electrolyte concentration and time. Dichloro methylsilane (5% in ethanol) was applied onto the porous surfaces by submerging the anodized surfaces into it for 10-60 min. After washing the treated surfaces with soap for many times, hydrophobic surfaces were obtained with some surfaces showed wetting angles greater than 100°. Water droplets of any sizes can roll off on these surfaces when tilted at angles above 10°. The treated aluminium surfaces can be applied for self-cleaning and anti-icing applications.

You might also be interested in these eBooks

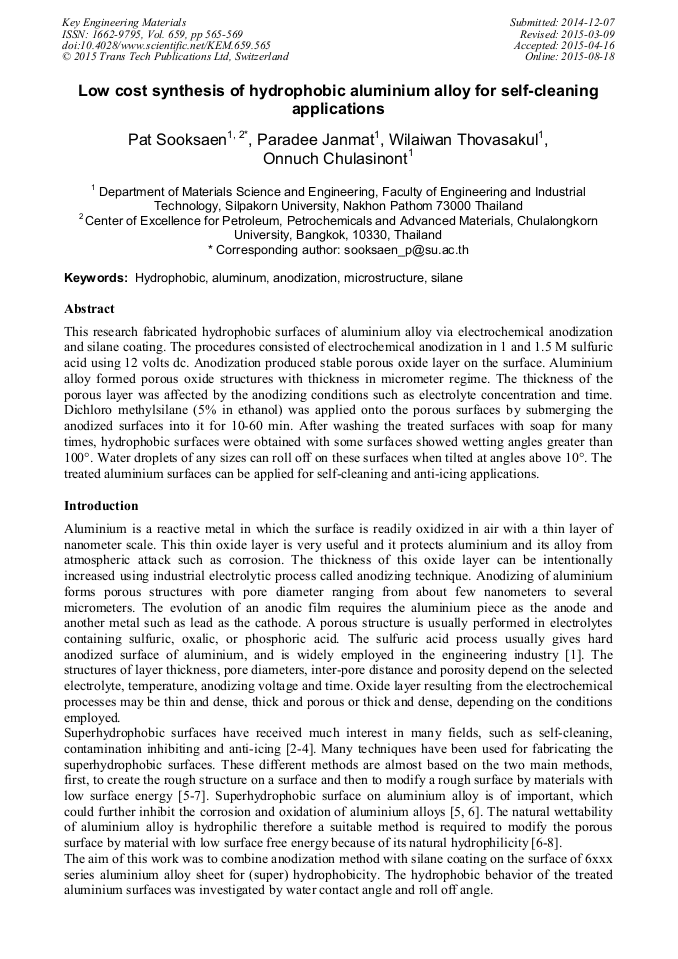

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 659)

Pages:

565-569

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.659.565

Citation:

Cite this paper

Online since:

August 2015

Authors:

Pat Sooksaen*, Paradee Janmat, Wilaiwan Thovasakul, Onnuch Chulasinont

Keywords:

Aluminium, Anodization, Hydrophobic, Microstructure, Silane

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] I. Tsangaraki-Kaplanoglou, S. Theohari, T. Dimogerontakis, Y.M. Wang, H.H. (Harry) Kuo, S. Kia, Effect of alloy types on the anodizing process of aluminum, Surface & Coatings Technology 200 (2006) 2634 – 2641.

DOI: 10.1016/j.surfcoat.2005.07.065

Google Scholar

[2] Q. Wang, B.W. Zhang, M.N. Qu, J.Y. Zhang, D.Y. He, Fabrication of superhydrophobic surfaces on engineering material surfaces with stearic acid, Appl. Surf. Sci. 254 (2008), 2009–(2012).

DOI: 10.1016/j.apsusc.2007.08.039

Google Scholar

[3] X. Zhang, F. Shi, J. Niu, Y.G. Jiang, Z.Q. Wang, Superhydrophobic surfaces: from structural control to functional application, J. Mater. Chem. 18 (2008), 621–633.

DOI: 10.1039/b711226b

Google Scholar

[4] L. Yin, Q. Xia, J. Xue, S.Q. Yang, Q.J. Wang, Q.M. Chen, In situ investigation of ice formation on surfaces with representative wettability, Appl. Surf. Sci. 256 (2010), 6764–6769.

DOI: 10.1016/j.apsusc.2010.04.086

Google Scholar

[5] D. Kim, W. Hwang, H.C. Park, K.H. Lee, Superhydrophobic nanostructures based on porous alumina, Current Applied Physics 8 (2008), 770–773.

DOI: 10.1016/j.cap.2007.04.056

Google Scholar

[6] H. Wang, D. Dai, X. Wu, Fabrication of superhydrophobic surfaces on aluminum, Applied Surface Science 254 (2008), 5599–5601.

DOI: 10.1016/j.apsusc.2008.03.004

Google Scholar

[7] W. Liu, Y. Luo, L. Sun, R. Wu, H. Jiang, Y. Liu, Fabrication of the superhydrophobic surface on aluminum alloy by anodizing and polymeric coating, Applied Surface Science 264 (2013), 872– 878.

DOI: 10.1016/j.apsusc.2012.10.167

Google Scholar

[8] F. Shi, J. Niu, J.L. Liu, F. Liu, Z.Q. Wang, X.Q. Feng, X. Zhang, Towards understanding why a superhydrophobic coating is needed by water striders, Adv. Mater. 19 (2007), 2257–2261.

DOI: 10.1002/adma.200700752

Google Scholar

[9] G. Whyman, E. Bormashenko, T. Stein, The rigorous derivation of Young, Cassie-Baxter and Wenzel equations and the analysis of the contact angle hysteresis phenomenon, Chemical Physics Letters 450(4) (2008), 355-359.

DOI: 10.1016/j.cplett.2007.11.033

Google Scholar
