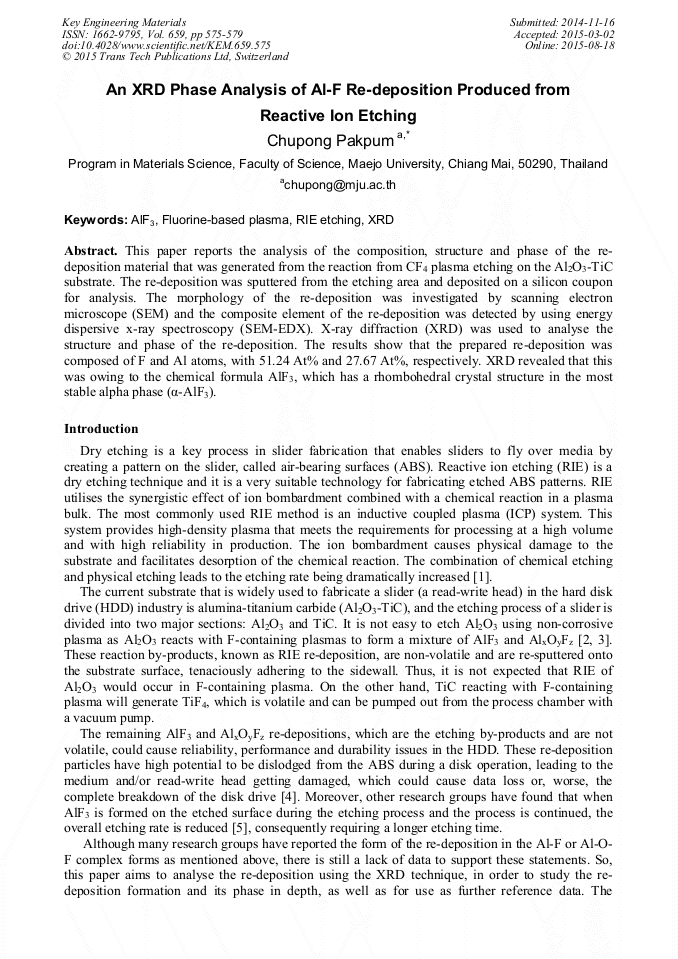

An XRD Phase Analysis of Al-F Re-Deposition Produced from Reactive Ion Etching

Abstract:

This paper reports the analysis of the composition, structure and phase of the re-deposition material that was generated from the reaction from CF₄ plasma etching on the Al₂O₃-TiC substrate. The re-deposition was sputtered from the etching area and deposited on a silicon coupon for analysis. The morphology of the re-deposition was investigated by scanning electron microscope (SEM) and the composite element of the re-deposition was detected by using energy dispersive x-ray spectroscopy (SEM-EDX). X-ray diffraction (XRD) was used to analyse the structure and phase of the re-deposition. The results show that the prepared re-deposition was composed of F and Al atoms, with 51.24 At% and 27.67 At%, respectively. XRD revealed that this was owing to the chemical formula AlF₃, which has a rhombohedral crystal structure in the most stable alpha phase (α-AlF₃).

• Periodical: Key Engineering Materials (Volume 659)
• Pages: 575-579
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.659.575
• Online since: August 2015
• Authors: Chupong Pakpum*
• Keywords: AlF₃, Fluorine-Based Plasma, RIE Etching, XRD

References

[1] R. Hsiao, Fabrication of magnetic recording heads and dry etching of head materials, IBM J. RES. DEVELOP. 43 (1999) 89-102.

DOI: 10.1147/rd.431.0089

[2] M.S. Zhang, Y.S. Hor, G.C. Han and B. Liu, Dry etching of AlTiC with CF4 and H2 for Slider Fabrication, IEEE Trans. Magn. 39 (2003) 2486-2488.

DOI: 10.1109/tmag.2003.816448

[3] J.W. Kim, Y.C. Kim and W.J. Lee, Reactive ion etching mechanism of plasma enhanced chemically vapor deposited aluminum oxide film in CF4/O2 plasma, J. Appl. Phys. 78.

DOI: 10.1063/1.360181

[3] (1995) 2045-(2049).

[4] B. Bhushan and N.S. Tambe, Role of particulate contamination on friction and wear and durability of load/unload and padded picosliders, IEEE Trans. Magn. 39 (2003) 857-863.

DOI: 10.1109/tmag.2003.808940

[5] D. Buttari, A. Chini, A. Chakraborty, L. McCarthy, H. Xing, T. Palacios, L. Shen, S. Keller and U.K. Mishra, Selective dry etching of GaN over AlGaN in BCl3/SF6 Mixtures, Int J High Speed Electron Syst 14.

DOI: 10.1142/9789812702036_0022

[3] (2004) 756-761.

[6] C. Ma, Y. Berta and Z.L. Wang, Patterned aluminum nanowires produced by electron beam at the surfaces of AlF3 single crystals, SOLID STATE COMMUN. 129 (2004) 681-685.

DOI: 10.1016/j.ssc.2003.08.015

[7] R. König, G. Scholz, K. Scheurell, D. Heidemann, I. Buchem, W.E.S. Unger and E. Kemnitz, Spectroscopic characterization of crystalline AlF3 phases, J FLUORINE CHEM. 131 (2010) 91-97.

DOI: 10.1016/j.jfluchem.2009.10.015
