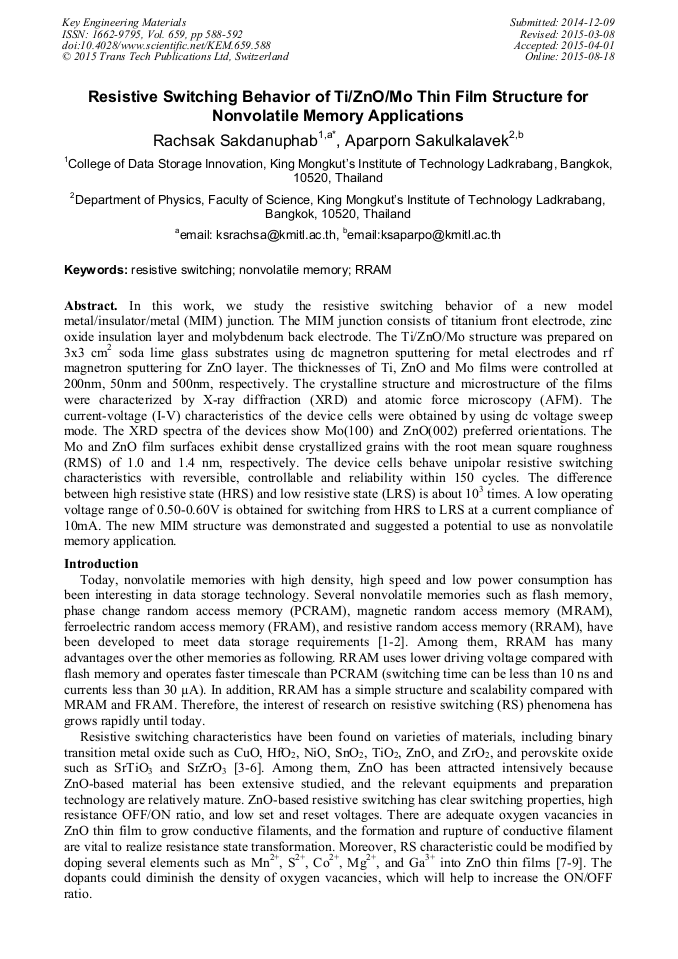

Resistive Switching Behavior of Ti/ZnO/Mo Thin Film Structure for Nonvolatile Memory Applications

Abstract:

In this work, we study the resistive switching behavior of a new model metal/insulator/metal (MIM) junction. The MIM junction consists of titanium front electrode, zinc oxide insulation layer and molybdenum back electrode. The Ti/ZnO/Mo structure was prepared on 3x3 cm² soda lime glass substrates using dc magnetron sputtering for metal electrodes and rf magnetron sputtering for ZnO layer. The thicknesses of Ti, ZnO and Mo films were controlled at 200nm, 50nm and 500nm, respectively. The crystalline structure and microstructure of the films were characterized by X-ray diffraction (XRD) and atomic force microscopy (AFM). The current-voltage (I-V) characteristics of the device cells were obtained by using dc voltage sweep mode. The XRD spectra of the devices show Mo(100) and ZnO(002) preferred orientations. The Mo and ZnO film surfaces exhibit dense crystallized grains with the root mean square roughness (RMS) of 1.0 and 1.4 nm, respectively. The device cells behave unipolar resistive switching characteristics with reversible, controllable and reliability within 150 cycles. The difference between high resistive state (HRS) and low resistive state (LRS) is about 10³ times. A low operating voltage range of 0.50-0.60V is obtained for switching from HRS to LRS at a current compliance of 10mA. The new MIM structure was demonstrated and suggested a potential to use as nonvolatile memory application.

• Periodical: Key Engineering Materials (Volume 659)
• Pages: 588-592
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.659.588
• Online since: August 2015
• Authors: Rachasak Sakdanuphab*, Aparporn Sakulkalavek
• Keywords: Nonvolatile Memory, Resistive Switching, RRAM

References

[1] G.I. Meijer, Who wins the nonvolatile memory race?, Science. 319 (2008) 1625–1626.

DOI: 10.1126/science.1153909

[2] Y.C. Yang, F. Pan, Q. Liu, M. Liu , F. Zeng , Fully room-temperature-fabricated nonvolatile resistive memory for ultrafast and high-density memory application, Nano. Lett. 9(4) (2009) 1636-1643.

DOI: 10.1021/nl900006g

[3] W.Y. Chang, Y.C. Lai, T.B. Wu, S.F. Wang, F. Chen, M.J. Tsai, Unipolar resistive switching characteristics of ZnO thin films for nonvolatile memory applications, Appl. Phys. Lett. 92(2) (2008) 022110. 1– 022110. 3.

DOI: 10.1063/1.2834852

[4] K. Nagashima, T. Yanagida, K. Oka, T. Kawai, Unipolar resistive switching characteristics of room temperature grown SnO2 thin films, Appl. Phys. Lett. 94(24) (2009) 242902. 1–242902. 3.

DOI: 10.1063/1.3156863

[5] D. Choi, D. Lee, H. Sim, M. Chang, H. Hwang, Reversible resistive switching of SrTiOx thin films for nonvolatile memory applications, Appl. Phys. Lett. 88(8) (2006) 082904. 1–082904. 3.

DOI: 10.1063/1.2178405

[6] C.C. Lin, B.C. Tu, C.C. Lin, C.H. Lin, T.Y. Tseng, Resistive switching mechanisms of Vdoped SrZrO3 memory films, IEEE Electron. Dev. Lett. 27(9) (2006) 725–727.

DOI: 10.1109/led.2006.880660

[7] M. Villafuerte, S.P. Heluani, G. Juárez, G. Simonelli, G. Braunstein, S. Duhalde, Electric-pulse-induced reversible resistance in doped zinc oxide thin films, Appl. Phys. Lett. 90(5) (2007) 052105. 1–052105. 3.

DOI: 10.1063/1.2437688

[8] X.M. Chen, G.H. Wu, D.H. Bao, Resistive switching behavior of devices for nonvolatile memory applications Pt/Mg0. 2Zn0. 8O/Pt, Appl. Phys. Lett. 93(9) (2008) 093501. 1–093501. 3.

DOI: 10.1063/1.2978158

[9] K. Kinoshtia, T. Okutani, H. Tanaka, T. Hinoki, K. Yazawa, K. Ohmi, Opposite bias polarity dependence of resistive switching in n-type Ga-doped-ZnO and p-type NiO thin films, Appl. Phys. Lett. 96(14) (2010) 143505. 1–143505. 3.

DOI: 10.1063/1.3380822

[10] J.W. Zhao, J. Sun, H.Q. Huang, F.J. Liu, Z.F. Hu, X. Q. Zhang, Effects of ZnO buffer layer on GZO RRAM devices, Appl. Surf. Sci. 258 (2012) 4588–4591.

DOI: 10.1016/j.apsusc.2012.01.034

[11] J. Zhang, H. Yang, Q. Zhang, S. Dong, J.K. Luo, Structural, optical, electrical and resistive switching properties of ZnO thin films deposited by thermal and plasma-enhanced atomic layer deposition, Appl. Surf. Sci. 282 (2013) 390– 395.

DOI: 10.1016/j.apsusc.2013.05.141

[12] G. Gordillo, M. Grizález, L.C. Hernandez, Structural and electrical properties of DC sputtered molybdenum Films. Sol. Energ. Mat. Sol. C. 51 (1998) 327-337.

DOI: 10.1016/s0927-0248(97)00236-5

[13] M.H. Tang, Z.Q. Zeng, J.C. Li, Z.P. Wang, X.L. Xu, G.Y. Wang, L.B. Zhang, S.B. Yang, Y.G. Xiao, B. Jiang, Resistive switching behavior of La-doped ZnO films for nonvolatile memory applications, Solid-state electron. 63(1) (2011) 100-104.

DOI: 10.1016/j.sse.2011.05.023
