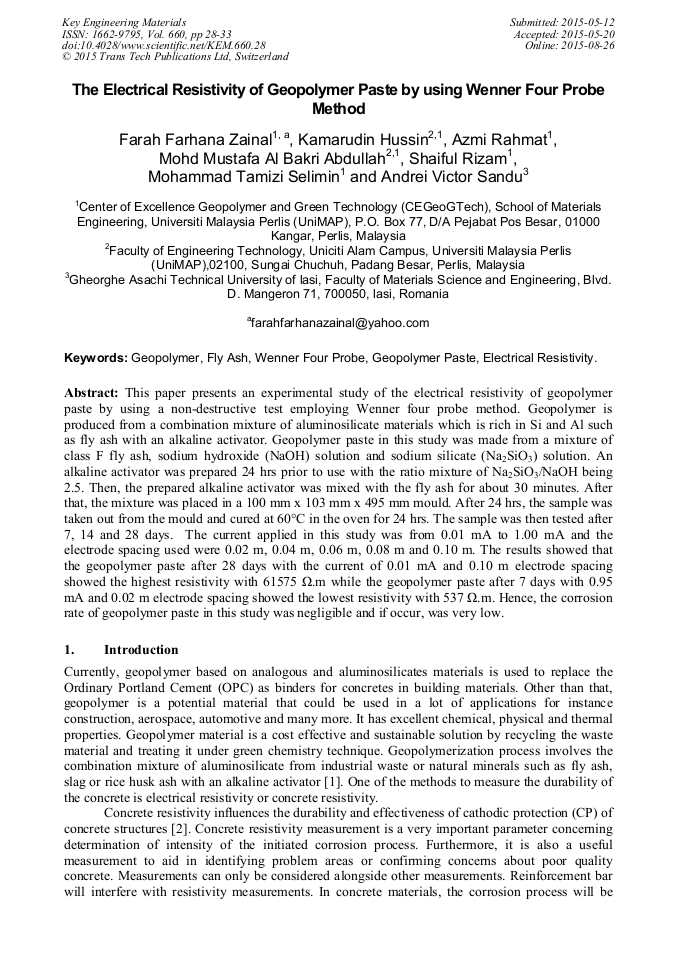

The Electrical Resistivity of Geopolymer Paste by Using Wenner Four Probe Method

Abstract:

This paper presents an experimental study of the electrical resistivity of geopolymer paste by using a non-destructive test employing Wenner four probe method. Geopolymer is produced from a combination mixture of aluminosilicate materials which is rich in Si and Al such as fly ash with an alkaline activator. Geopolymer paste in this study was made from a mixture of class F fly ash, sodium hydroxide (NaOH) solution and sodium silicate (Na₂SiO₃) solution. An alkaline activator was prepared 24 hrs prior to use with the ratio mixture of Na₂SiO₃/NaOH being 2.5. Then, the prepared alkaline activator was mixed with the fly ash for about 30 minutes. After that, the mixture was placed in a 100 mm x 103 mm x 495 mm mould. After 24 hrs, the sample was taken out from the mould and cured at 60°C in the oven for 24 hrs. The sample was then tested after 7, 14 and 28 days. The current applied in this study was from 0.01 mA to 1.00 mA and the electrode spacing used were 0.02 m, 0.04 m, 0.06 m, 0.08 m and 0.10 m. The results showed that the geopolymer paste after 28 days with the current of 0.01 mA and 0.10 m electrode spacing showed the highest resistivity with 61575 Ω.m while the geopolymer paste after 7 days with 0.95 mA and 0.02 m electrode spacing showed the lowest resistivity with 537 Ω.m. Hence, the corrosion rate of geopolymer paste in this study was negligible and if occur, was very low.

• Periodical: Key Engineering Materials (Volume 660)
• Pages: 28-33
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.660.28
• Online since: August 2015
• Authors: Farah Farhana Zainal*, Hussin Kamarudin, Azmi Rahmat, Mohd Mustafa Al Bakri Abdullah, Shaiful Rizam, Mohammad Tamizi Selimin, Andrei Victor Sandu
• Keywords: Electrical Resistivity, Fly Ash, Geopolymer, Geopolymer Paste, Wenner Four Probe

References

[1] Norkhairunnisa. M and Muhammad Fariz. MN, Geopolymer: A Review on Physical Properties of Inorganic Aluminosilicate Coating Materials, Malaysia Indonesia Geopolymer Symposium (MIGS 2014), page 29.

DOI: 10.4028/www.scientific.net/msf.803.367

[2] Rob B. Polder, Test Methods for On Site Measurement of Resistivity of Concrete: A RILEM TC-154 Technical Recommendation, Construction and Building Materials, ELSEVIER, 15 (2001) 125-131.

DOI: 10.1016/s0950-0618(00)00061-1

[3] Ha-Won Song and Velu Saraswathy (2007), Corrosion Monitoring of Reinforced Concrete Structures – A Review, International Journal of Electrochemical Science, vol 2, pp.1-28.

[4] G. K. Glass, S. N. Field and W.K. Green (2000).

[5] Test Method WA 622. 1 – 2012, Resistivity of Concrete, MAIN ROADS Western Australia Document 71/04/622. 1, Issue Date: 13 January (2012).

[6] Bakhtiar Q. Aziz, Subject 14: Survey Design and Procedure, pp.1-9.

[7] Electrical and Electrochemical Techniques: Concrete Resistivity, Half-Cell Potential, Corrosion Rate. DURATINET Course, Testing Techniques for Structures Inspection, 29 & 30 May 2012. Available online: http: /durati. lnec. pt/pdf/DURATINETCourse/4_PMelo. pdf.

[8] Z. F. Farhana, H. Kamarudin, Azmi Rahmat and A. M. Mustafa Al Bakri (2014).

[9] Hardjito, D., S. Wallah, M. Sumajouw, and V. B. Rangan (2004), On the development of fly ash-based geopolymer concrete., ACI Materials Journal 101: 467-472.

DOI: 10.1007/s10853-006-0523-8

[10] Rangan, B.V. (2008), Low-Calcium Fly-Ash-Based Geopolymer Concrete, Faculty of Engineering, Curtin University of Technology, Perth, Australia, pp.1-19.

DOI: 10.1201/9781420007657.ch26

[11] Swanepoel J.C. and Strydom C.A. / Appl. Geochem. 17(8) (2002) 1143.
