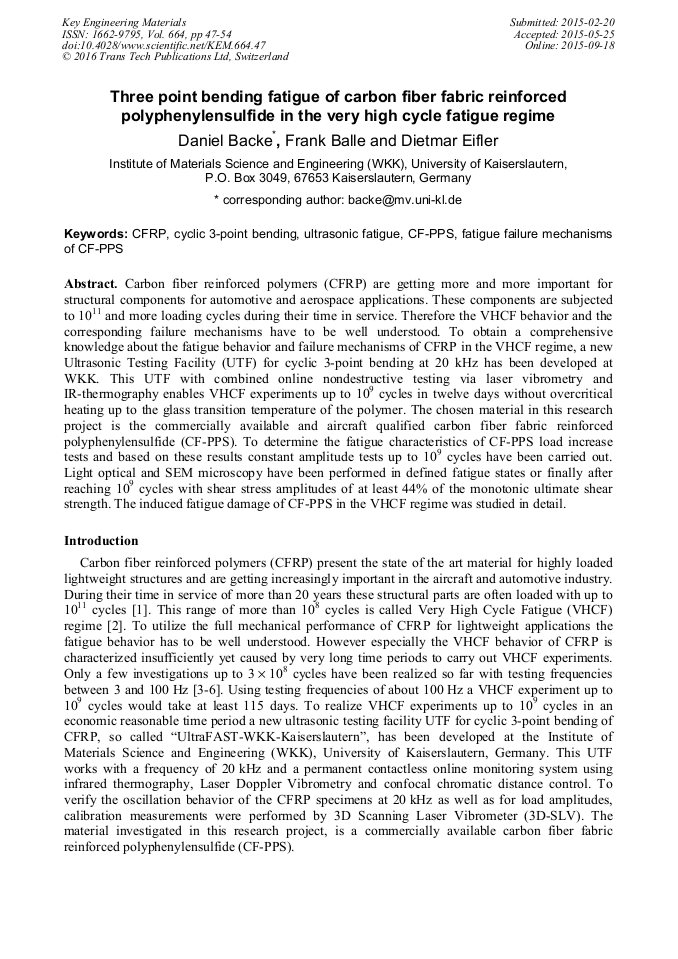

Three Point Bending Fatigue of Carbon Fiber Fabric Reinforced Polyphenylensulfide in the Very High Cycle Fatigue Regime

Abstract:

Carbon fiber reinforced polymers (CFRP) are getting more and more important for structural components for automotive and aerospace applications. These components are subjected to 10¹¹ and more loading cycles during their time in service. Therefore the VHCF behavior and the corresponding failure mechanisms have to be well understood. To obtain a comprehensive knowledge about the fatigue behavior and failure mechanisms of CFRP in the VHCF regime, a new Ultrasonic Testing Facility (UTF) for cyclic 3-point bending at 20 kHz has been developed at WKK. This UTF with combined online nondestructive testing via laser vibrometry and IRthermography enables VHCF experiments up to 10⁹ cycles in twelve days without overcritical heating up to the glass transition temperature of the polymer. The chosen material in this research project is the commercially available and aircraft qualified carbon fiber fabric reinforced polyphenylensulfide (CF-PPS). To determine the fatigue characteristics of CF-PPS load increase tests and based on these results constant amplitude tests up to 10⁹ cycles have been carried out. Light optical and SEM microscopy have been performed in defined fatigue states or finally after reaching 10⁹ cycles with shear stress amplitudes of at least 44% of the monotonic ultimate shear strength. The induced fatigue damage of CF-PPS in the VHCF regime was studied in detail.

• Periodical: Key Engineering Materials (Volume 664)
• Pages: 47-54
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.664.47
• Online since: September 2015
• Authors: Daniel Backe*, Frank Balle, Dietmar Eifler
• Keywords: CF-PPS, CFRP, Cyclic 3-Point Bending, Fatigue Failure Mechanisms of CFPPS, Ultrasonic Fatigue

References

[1] C. Bathias, P. C. Paris, Gigacycle Fatigue in Mechanical Practice. CRC Decker, New York, (2005).

[2] H. Mughrabi, On multi-stage, fatigue life diagrams and the life-controlling mechanisms in ultrahigh-cycle fatigue. Fatigue and Fracture of Engineering Materials and Structures 25 (2001), 755 - 764.

DOI: 10.1046/j.1460-2695.2002.00550.x

[3] R. A. Abeles Couillard, P. Schwartz, Bending fatigue of carbon-fiber-reinforced epoxy composites strands. Composites Science and Technology, 57 (1997), 229 - 235.

DOI: 10.1016/s0266-3538(96)00134-0

[4] A. Hosoi et al., Interaction between transverse cracks and edge delamination considering free-edge effects in composites laminates. Proc. of 16th International conference on composite materials, Kyoto, (2007).

[5] A. Hosoi et al., High-cycle fatigue characteristics of quasi-isotropic CFRP laminates over 108 cycles (Initiation and propagation of delamination considering interaction with transverse cracks). International Journal of Fatigue, 32 (2010).

DOI: 10.1016/j.ijfatigue.2009.02.028

[6] A. Hosoi et al., Quantitative evaluation of fatigue damage growth in CFRP laminates that changes due to applied stress level. International Journal of Fatigue, 33 (2011), 781 – 787.

DOI: 10.1016/j.ijfatigue.2010.12.017

[7] G. W. Ehrenstein, Polymeric Materials. Carl Hanser, Munich, (2001).

[8] J. Rotheiser, Joining of Plastics. Carl Hanser, Munich, (2004).

[9] S. Stanzl, A new experimental method for measuring life time and crack growth of materials under multi-stage and random loadings. Ultrasonics, 19 (1981), 269 - 272.

DOI: 10.1016/0041-624x(81)90017-2

[10] C. Bathias, Piezoelectric fatigue testing machines and devices. International Journal of Fatigue, 28 (2006), 1438 - 1445.

DOI: 10.1016/j.ijfatigue.2005.09.020

[11] S. E. Stanzl-Tschegg, Ultrasonic Fatigue. Encyclopedia of Materials: Science and Technology, 2001, 9444 - 9449.

DOI: 10.1016/b0-08-043152-6/01707-1

[12] M. Koster, G. Wagner, D. Eifler, New measuring methods for the fatigue assessment of metals in the VHCF regime. Proc. of Fourth International Conference on Very High Cycle Fatigue (VHCF4), 2007, 137 – 142.

[13] S. Heinz, F. Balle, G. Wagner, D. Eifler, Innovative Ultrasonic Testing Facility for Fatigue Experiments in the VHCF Regime. Materials Testing, 54 (2012), 750-755.

DOI: 10.3139/120.110395

[14] S. Heinz, G. Wagner, D. Eifler, Innovative piezoelectric testing facility for fatigue experiments in the VHCF regime. Proc. of Fifth International Conference on Very High Cycle Fatigue (VHCF5), 2011, 479 - 484.

DOI: 10.3139/120.110395

[15] D. Backe, F. Balle, D. Eifler: Fatigue testing of CFRP in the Very High Cycle Fatigue (VHCF) regime at ultrasonic frequencies, Composites Science and Technology, 106 (2015), 93 - 99.

DOI: 10.1016/j.compscitech.2014.10.020

[16] G. W. Ehrenstein, G. Riedel, P. Trawiel, Thermal Analysis of Plastics. Munich, (2004).

[17] S. Daggumati, et al., Fatigue and post-fatigue stress–strain analysis of a 5-harness satin weave carbon fibre reinforced composite. Composites Science and Technology, 74 (2013), 20 - 27.

DOI: 10.1016/j.compscitech.2012.09.012
