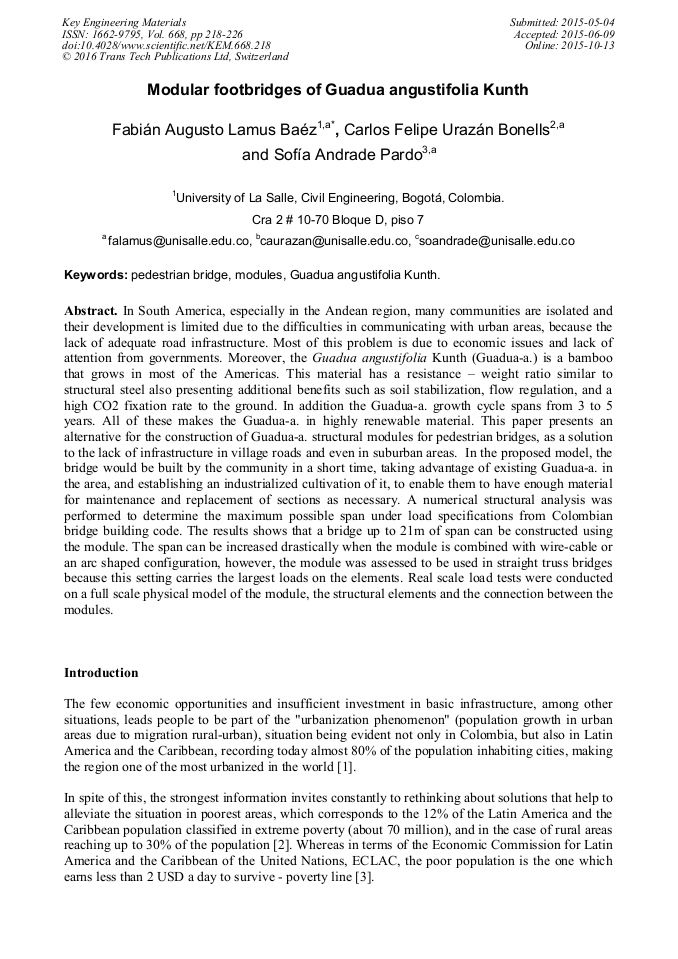

Modular Footbridges of Guadua Angustifolia Kunth

Abstract:

In South America, especially in the Andean region, many communities are isolated and their development is limited due to the difficulties in communicating with urban areas, because the lack of adequate road infrastructure. Most of this problem is due to economic issues and lack of attention from governments. Moreover, the Guadua angustifolia Kunth (Guadua-a.) is a bamboo that grows in most of the Americas. This material has a resistance – weight ratio similar to structural steel also presenting additional benefits such as soil stabilization, flow regulation, and a high CO2 fixation rate to the ground. In addition the Guadua-a. growth cycle spans from 3 to 5 years. All of these makes the Guadua-a. in highly renewable material. This paper presents an alternative for the construction of Guadua-a. structural modules for pedestrian bridges, as a solution to the lack of infrastructure in village roads and even in suburban areas. In the proposed model, the bridge would be built by the community in a short time, taking advantage of existing Guadua-a. in the area, and establishing an industrialized cultivation of it, to enable them to have enough material for maintenance and replacement of sections as necessary. A numerical structural analysis was performed to determine the maximum possible span under load specifications from Colombian bridge building code. The results shows that a bridge up to 21m of span can be constructed using the module. The span can be increased drastically when the module is combined with wire-cable or an arc shaped configuration, however, the module was assessed to be used in straight truss bridges because this setting carries the largest loads on the elements. Real scale load tests were conducted on a full scale physical model of the module, the structural elements and the connection between the modules.

• Periodical: Key Engineering Materials (Volume 668)
• Pages: 218-226
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.668.218
• Online since: October 2015
• Authors: Fabián Augusto Lamus Báez*, Carlos Felipe Urazán Bonells, Sofía Andrade Pardo
• Keywords: Guadua Angustifolia Kunth, Modules, Pedestrian Bridge

References

[1] Information on: http: /estadisticas. cepal. org/cepalstat/WEB_CEPALSTAT/Portada. asp.

[2] Information on: http: /estadisticas. cepal. org.

[3] CEPAL, Panorama Social de América Latina, Comisión económica para América Latina y El Caribe, Santiago de Chile, (2012).

DOI: 10.18235/0001028

[4] Rozas, P. y Sánchez, R. (). Desarrollo de infraestructura y crecimiento económico: revisión conceptual. División de recursos naturales e infraestructura, Comisión económica para América Latina y El Caribe, Santiago de Chile, (2004).

DOI: 10.18356/3e0292a5-es

[5] Information on: http: /www. puentesdelaesperanza. org.

[6] Information on: http: /bridgestoprosperity. org.

[7] Ministerio de Agricultura y Desarrollo Rural, La cadena de la guadua en Colombia, Minagro, Bogotá D.C., (2005).

DOI: 10.21930/agrosavia.video.2013.61

[8] Villegas, M., Guadua, arquitectura y diseño, 1st. ed., Villegas editores, Bogotá D.C., (2003).

[9] Torres, C. A, La ciudad informal colombiana. Revista Bitácora Urbano Territorial, 1 (2007) 53-93.

[10] Ministerio de transporte, Código Colombiano de Diseño Sísmico de Puentes – CCDSP.

[11] Ministerio de Vivienda y Medio Ambiente, Reglamento Colombiano de Construcción Sismo Resistente – NSR10. Asociación Colombiana de Ingeniería Sísmica, Bogotá D.C., (2010).

[12] Quiroga, H., Calificación estructural de un módulo de puente para uso provisional en pasos peatonales construido con Guadua Angustifolia Kunth, Universidad de La Salle, Bogotá D.C., (2014).

DOI: 10.24133/ciencia.v22i1.1288

[13] Instituto Colombiano de Normas Técnicas, Norma Técnica Colombiana 5525. Métodos de ensayo para determinar las propiedades físicas y mecánicas de la Guadua Angustifolia Kunth, ICONTEC, Bogotá D.C., (2006).

DOI: 10.2307/j.ctvt6rn5t.6

[14] Pacheco, C. Resistencia a la Tracción Perpendicular a la Fibra de la Guadua Angustifolia, Universidad Nacional de Colombia, Bogotá D.C., (2006).

[15] Torres, L., Modelo anisótropo de elementos finitos para el análisis mecánico del bambú y su verificación experimental, Universidad del Valle, Cali, (2005).

[16] Lamus, F, Plazas, M & Luna, P., Double shear parallel to the grain, 15th International Conference on Non-conventional Materials and Technologies (15NOCMAT2014), Pirassununga, (2014).

[17] Allegheny Ludlum, Technical data – blue sheet, stainless steel type 301, Pittsburgh, (1998).

[18] Cely, J. & Cruz, M., Determinación de la resistencia de los elementos que conforman la sección de un puente peatonal modular construido con Guadua Angustifolia Kunth, Universidad de La Salle, Bogotá D.C., (2013).

DOI: 10.2307/j.ctvt6rn5t.4
