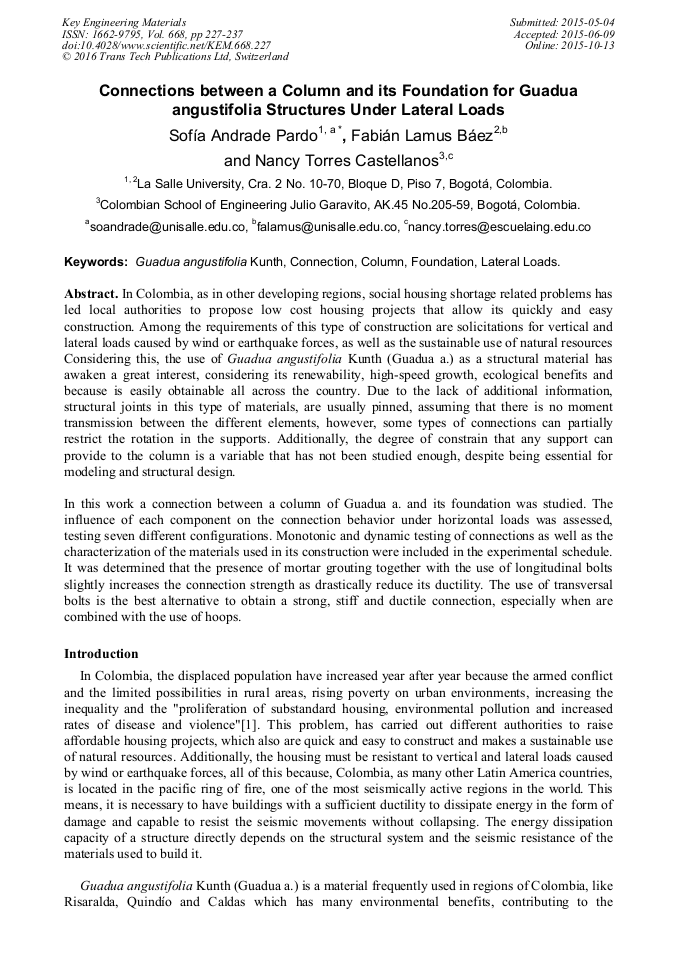

Connection between a Column and its Foundation for Guadua Angustifolia Structures under Lateral Loads

Abstract:

In Colombia, as in other developing regions, social housing shortage related problems has led local authorities to propose low cost housing projects that allow its quickly and easy construction. Among the requirements of this type of construction are solicitations for vertical and lateral loads caused by wind or earthquake forces, as well as the sustainable use of natural resources Considering this, the use of Guadua angustifolia Kunth (Guadua a.) as a structural material has awaken a great interest, considering its renewability, high-speed growth, ecological benefits and because is easily obtainable all across the country. Due to the lack of additional information, structural joints in this type of materials, are usually pinned, assuming that there is no moment transmission between the different elements, however, some types of connections can partially restrict the rotation in the supports. Additionally, the degree of constrain that any support can provide to the column is a variable that has not been studied enough, despite being essential for modeling and structural design.In this work a connection between a column of Guadua a. and its foundation was studied. The influence of each component on the connection behavior under horizontal loads was assessed, testing seven different configurations. Monotonic and dynamic testing of connections as well as the characterization of the materials used in its construction were included in the experimental schedule. It was determined that the presence of mortar grouting together with the use of longitudinal bolts slightly increases the connection strength as drastically reduce its ductility. The use of transversal bolts is the best alternative to obtain a strong, stiff and ductile connection, especially when are combined with the use of hoops.

• Periodical: Key Engineering Materials (Volume 668)
• Pages: 227-237
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.668.227
• Online since: October 2015
• Authors: Sofía Andrade Pardo*, Fabián Lamus Báez, Nancy Torres Castellanos
• Keywords: Column, Connection, Foundation, Guadua angustifolia Kunth, Lateral Loads

References

[1] Information on http: / www. paho. org/saludenlasamericas/index. php?option=com_ content&view=article&id=9&Itemid=14&lang=es.

[2] Cruz, H., Bambú - Guadua: Guadua angustifolia Kunth. Bosques Naturales en Colombia y Plantaciones Comerciales en México. Pereira, Colombia, (2009).

DOI: 10.24133/ciencia.v22i1.1289

[3] AIS. Reglamento Colombiano de Construcción Sismo Resistente NSR-10. Bogotá, Colombia, (2010).

[4] Takeuchi, C. et. al., Experimental and analytical estudy of Guadua Angustifolia Kunth Frames, Second International Conference on Modern Bamboo Structures. Memorias. Bogotá, Minagricultura – IMBAR, Uniandes. (2009).

[5] Echeverri, A., Comportamiento de uniones en Guadua utilizando fibra de vidrio. Trabajo de grado, Universidad Nacional de Colombia, Bogotá, (2008).

[6] Lamus, F., Calificación de una conexión viga-columna resistente a momento en Guadua Angustifolia, Tesis de Maestría, Universidad Nacional de Colombia, Bogotá, (2008).

[7] Herrera, J., Comportamiento estructural de pórticos en guadua angustifolia, rigidizados mediante paneles prefabricados de bahareque encementado y artesanales laminados en guadua, Tesis de maestría, Universidad Nacional de Colombia, Bogotá, (2008).

DOI: 10.2307/j.ctvt6rn5t.6

[8] Malaver, D., Estabilidad de pórticos de guadua angustifolia arriostrados con cables, Trabajo de grado, Universidad Nacional de Colombia, Bogotá, (2007).

[9] Rivera, J., Comportamiento estructural de pórticos en guadua, arriostrados mediante diagonales en guadua, Tesis de maestría, Universidad Nacional de Colombia, Bogotá, (2008).

[10] Florez, E., Uniones a tensión en guadua con mortero y varilla, comportamiento de uniones con uso de expansivo en el mortero, Trabajo de grado, Universidad Nacional de Colombia, Bogotá, (2003).

DOI: 10.26507/paper.2476

[11] ICONTEC, Norma Técnica Colombiana NTC 5525, Métodos de ensayo para determinar las propiedades físicas y mecánicas de la Guadua Angustofolia Kunth, Bogotá, (2007).

[12] Pacheco, C., Resistencia a la Tracción Perpendicular a la Fibra de la Guadua Angustifolia, Trabajo de Grado, Universidad Nacional de Colombia, Bogotá, (2006).

[13] Torres, L., Modelo anisótropo de elementos finitos para el análisis mecánico del bambú y su verificación experimental, Trabajo de Grado, Universidad del Valle, (2005).

[14] ALLEGHENY LUDLUM CORPORATION, Stainless Steels Type 201 and Type 201L. Technical Data, Blue Sheet. p.4, Pittsburgh, USA, (1998).
