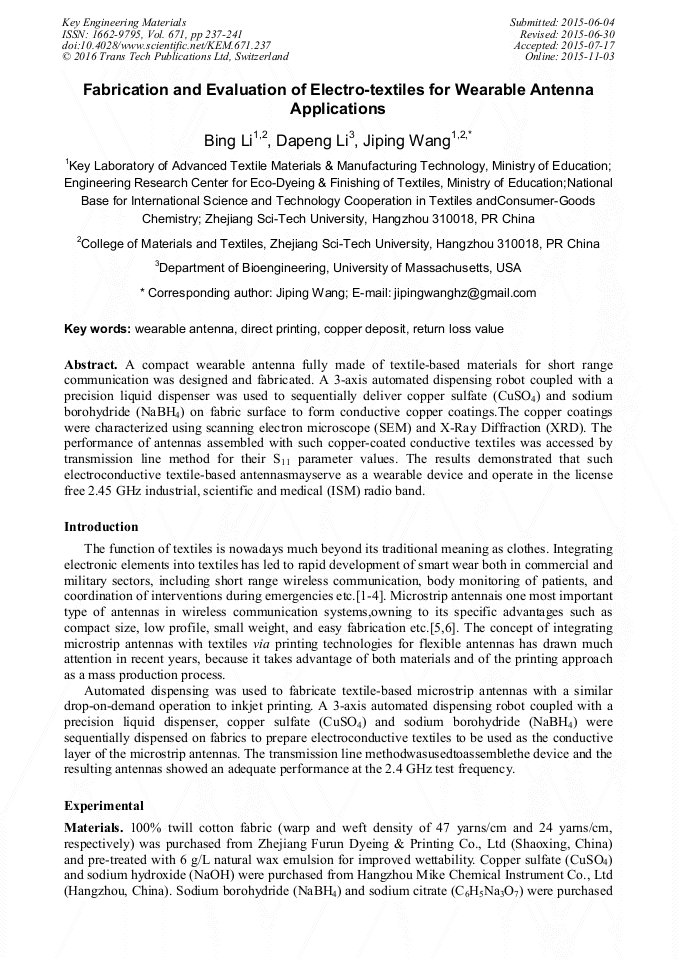

Fabrication and Evaluation of Electro-Textiles for Wearable Antenna Applications

Abstract:

A compact wearable antenna fully made of textile-based materials for short range communication was designed and fabricated. A 3-axis automated dispensing robot coupled with a precision liquid dispenser was used to sequentially deliver copper sulfate (CuSO₄) and sodium borohydride (NaBH₄) on fabric surface to form conductive copper coatings. The copper coatings were characterized using scanning electron microscope (SEM) and X-Ray Diffraction (XRD). The performance of antennas assembled with such copper-coated conductive textiles was accessed by transmission line method for their S₁₁ parameter values. The results demonstrated that such electroconductive textile-based antennas may serve as a wearable device and operate in the license free 2.45 GHz industrial, scientific and medical (ISM) radio band.

• Periodical: Key Engineering Materials (Volume 671)
• Pages: 237-241
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.671.237
• Online since: November 2015
• Authors: Bing Li, Da Peng Li, Ji Ping Wang*
• Keywords: Copper Deposit, Direct Printing, Return Loss Value, Wearable Antenna

References

[1] Vallozzi, L., et al., Wireless communication for firefighters using dual-polarized textile antennas integrated in their garment. IEEE Transactions on Antennas and Propagation, 2010. 58: pp.1357-1368.

DOI: 10.1109/tap.2010.2041168

[2] Winterhalter, C.A., et al., Development of electronic textiles to support networks, communications, and medical applications in future US Military protective clothing systems. IEEE Transactions on Information Technology in Biomedicine, 2005. 9: pp.402-406.

DOI: 10.1109/titb.2005.854508

[3] Hertleer, C., et al., A textile antenna for fire fighter garments. AUTEX 2007 Conference (Association of Universities for Textiles): From Emerging Innovations to Global Business, (2007).

[4] Raad, H.R., et al. Flexible and compact AMC based antenna for telemedicine applications. IEEE Transactions on Antennas and Propagation, 2013. 61: pp.524-531.

DOI: 10.1109/tap.2012.2223449

[5] Hertleer, C., et al., Flexible textile based antennas, Materials Science and Technology, 2010. 25: pp.101-105.

[6] Rais, N.H.M., et al., A review of wearable antenna. In Antennas & Propagation Conference, Loughborough, 2009, pp.225-228.

[7] Li, B., et al. Copper deposition on textiles via automated dispensing process for flexible microstrip antennas. Textile Research Journal, 2014. 84: p.2026-(2035).

DOI: 10.1177/0040517514534753
