Manufacturing and Macroscopic Properties of Warm Sprayed Cu-36at.%In-15at.%Ga Coating Layer

Abstract:

A Cu-36at.%In-15at.%Ga coating layer is manufactured using a warm spray process and ternary alloy powders. The powder used had a particle-size distribution of 5~22μm with a spherical shape and average particle size of 11.6μm. Pure aluminum plate was used as a substrate. As a result, a CIG coating layer with 120μm thickness was successfully obtained. In order to improve the density of the coating layer, post heat treatment was applied for 1 hour in each condition of 200, 300 and 400°C. Phase analysis of the powder initially used identified Cu₉In₄, Cu₉Ga₄ phases, and Cu₉In₄, Cu₉Ga₄, Cu₃Ga phases were identified after warm spraying. As heat treatment was applied, porosity decreased from 0.98% (as sprayed) to 0.8% (400°C), showing an increase in density, and hardness also decreased from 304Hv (as sprayed) to 258Hv (400°C).

You might also be interested in these eBooks

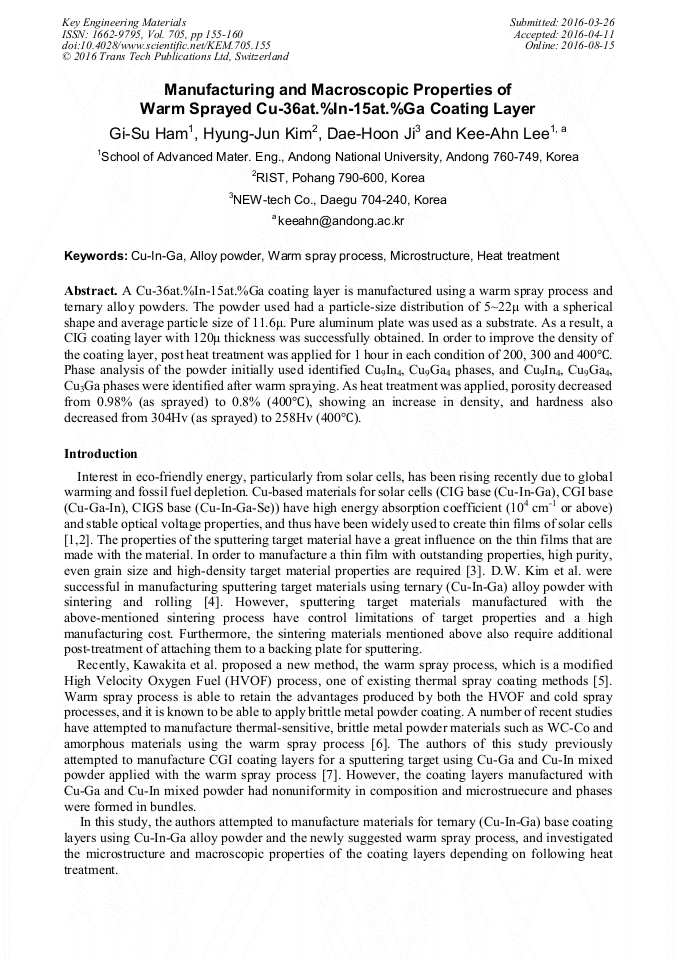

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 705)

Pages:

155-160

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.705.155

Citation:

Cite this paper

Online since:

August 2016

Authors:

Gi Su Ham, Hyung Jun Kim, Dae Hoon Ji, Kee Ahn Lee*

Keywords:

Alloy Powder, Cu-In-Ga, Heat Treatment, Microstructure, Warm Spray Process

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Kaelin, D. Rudmann, F. Kurdesau, T. Meyer, H. Zogg, A. N. Tiwari, CIS and CIGS layers from selenized nanoparticle precursors, Thin Solid Films, 431-432 (2003) 58-62.

DOI: 10.1016/s0040-6090(03)00194-9

Google Scholar

[2] M. Nouiri, Z. B. Ayadi, K. Khirouni, S. Alaya, K. Djessas, S. Yapi, Effect of substrate temperature and source grain size on the structural and electrical properties of CSVT grown Cu(In1-xGax)Se2 thin films, Mater. Sci. Eng. C, 27 (2007).

DOI: 10.1016/j.msec.2006.07.022

Google Scholar

[3] J. W. Lim, J. W. Bae, Y. F. Zhu, S. Lee, K. Mimura, M. Isshiki, Improvement of Zr film purity by using a purified sputtering target and negative substrate bias voltage, Surf. Coat. Tech. 201 (2006) 1899-(1901).

DOI: 10.1016/j.surfcoat.2006.01.009

Google Scholar

[4] D. W. Kim, Y. H. Kim, J. H Kim, D. G. Kim, J. H. Lee, K. B. Choi, H. T. Son, Sintering and Rolling Behavior of Cu-50In-13Ga Ternary Alloy Powder for Sputtering Target, J. Korean Powder Metall. Inst., 19 (2012) 264-270.

DOI: 10.4150/kpmi.2012.19.4.264

Google Scholar

[5] J. Kawakita, H. Katanoda, M. Watanabe, K. Yokoyama and S. Kuroda, Warm spraying: an improved spray process to deposit novel coating, Surf. Coat. Technol., 202 (2008) 4369-4373.

DOI: 10.1016/j.surfcoat.2008.04.011

Google Scholar

[6] P. Chivavibul, M. Watanabe, S. Kuroda, J. Kawakita, M. Komatsu, K. Sato, J. Kitamura, Effects of Particle Strength of Feedstock Powders on Properties of Warm-Sprayed WC-Co Coatings, J. Therm. Spray Technol., 20 (2011) 1098-1109.

DOI: 10.1007/s11666-011-9618-0

Google Scholar

[7] M. G. Jeon, M. J. Lee, H. J. Kim, K. A. Lee, Manufacturing and Properties of CGI-based Composite Coating Layer Utilizing and Warm Spray Process and Cu-Ga and Cu-In Mixed Powders, J. Korean Powder Metall. Inst., 21 (2014) 229-234.

DOI: 10.4150/kpmi.2014.21.3.229

Google Scholar

[8] Y. M. Jin, M. G. Jeon, D. Y. Park, H. J. Kim, I. H. Oh, K. A. Lee, Manufacturing and Macroscopic Properties of Cold Sprayed Cu-Ga Coating Material for Sputtering Target, J. Korean Powder Metall. Inst., 20 (2013) 245-252.

DOI: 10.4150/kpmi.2013.20.4.245

Google Scholar
