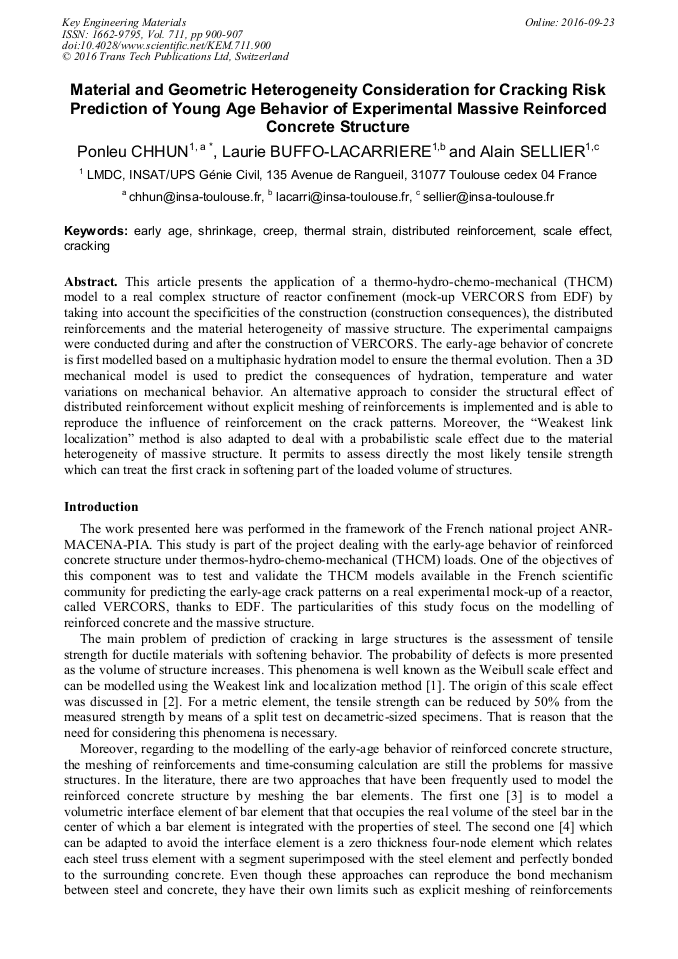

Material and Geometric Heterogeneity Consideration for Cracking Risk Prediction of Young Age Behavior of Experimental Massive Reinforced Concrete Structure

Abstract:

This article presents the application of a thermo-hydro-chemo-mechanical (THCM) model to a real complex structure of reactor confinement (mock-up VERCORS from EDF) by taking into account the specificities of the construction (construction consequences), the distributed reinforcements and the material heterogeneity of massive structure. The experimental campaigns were conducted during and after the construction of VERCORS. The early-age behavior of concrete is first modelled based on a multiphasic hydration model to ensure the thermal evolution. Then a 3D mechanical model is used to predict the consequences of hydration, temperature and water variations on mechanical behavior. An alternative approach to consider the structural effect of distributed reinforcement without explicit meshing of reinforcements is implemented and is able to reproduce the influence of reinforcement on the crack patterns. Moreover, the “Weakest link localization” method is also adapted to deal with a probabilistic scale effect due to the material heterogeneity of massive structure. It permits to assess directly the most likely tensile strength which can treat the first crack in softening part of the loaded volume of structures.

• Periodical: Key Engineering Materials (Volume 711)
• Pages: 900-907
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.711.900
• Online since: September 2016
• Authors: Ponleu Chhun*, Laurie Buffo-Lacarriere, Alain Sellier
• Keywords: Cracking, Creep, Distributed Reinforcement, Early Age, Scale Effect, Shrinkage, Thermal Strain

References

[1] A. Sellier and A. Millard, Weakest link and localisation WL 2 : a method to conciliate probabilistic and energetic scale effects in numerical models, Eur. J. Environ. Civ. Eng., p.1–15, (2014).

DOI: 10.1080/19648189.2014.906368

[2] Z. P. Bažant and A. Yavari, Is the cause of size effect on structural strength fractal or energetic–statistical?, Eng. Fract. Mech., vol. 72, no. 1, p.1–31, (2005).

DOI: 10.1016/j.engfracmech.2004.03.004

[3] L. Buffo-Lacarrière, A. Sellier, and B. Kolani, Application of thermo-hydro-chemo-mechanical model for early age behaviour of concrete to experimental massive reinforced structures with strain–restraining system, Eur. J. Environ. Civ. Eng., vol. 18, no. 7, p.814–827, (2014).

DOI: 10.1080/19648189.2014.896754

[4] C. Mang, L. Jason, and L. Davenne, A new bond slip model for reinforced concrete structures: Validation by modelling a reinforced concrete tie, Eng. Comput., vol. 32, no. 7, p.1934–1958, (2015).

DOI: 10.1108/ec-11-2014-0234

[5] EDF VeRCoRs Project 2016., [Online]. Available: https: /fr. amiando. com/fb/EDF-vercors-project. html. [Accessed: 29-Jan-2016].

[6] L. Buffo-Lacarrière, A. Sellier, G. Escadeillas, and A. Turatsinze, Multiphasic finite element modeling of concrete hydration, Cem. Concr. Res., vol. 37, no. 2, p.131–138, (2007).

DOI: 10.1016/j.cemconres.2006.11.010

[7] A. Sellier, S. Multon, L. Buffo-Lacarrière, T. Vidal, X. Bourbon, and G. Camps, Concrete creep modelling for structural applications: non-linearity, multi-axiality, hydration, temperature and drying effects, Cem. Concr. Res., vol. 79, p.301–315, (2016).

DOI: 10.1016/j.cemconres.2015.10.001

[8] G. De Schutter and L. Taerwe, Degree of hydration-based description of mechanical properties of early age concrete, Mater. Struct., vol. 29, no. 6, p.335–344, Jul. (1996).

DOI: 10.1007/bf02486341

[9] J. M. Torrenti and F. Benboudjema, Mechanical threshold of cementitious materials at early age, Mater. Struct., vol. 38, no. 3, p.299–304, (2005).

DOI: 10.1007/bf02479294

[10] M. T. van Genuchten, A Closed-form Equation for Predicting the Hydraulic Conductivity of Unsaturated Soils1, Soil Sci. Soc. Am. J., vol. 44, no. 5, p.892, (1980).

DOI: 10.2136/sssaj1980.03615995004400050002x

[11] L. Buffo-Lacarrière, A. Sellier, A. Turatsinze, and G. Escadeillas, Finite element modelling of hardening concrete: application to the prediction of early age cracking for massive reinforced structures, Mater. Struct., vol. 44, no. 10, p.1821–1835, (2011).

DOI: 10.1617/s11527-011-9740-y
