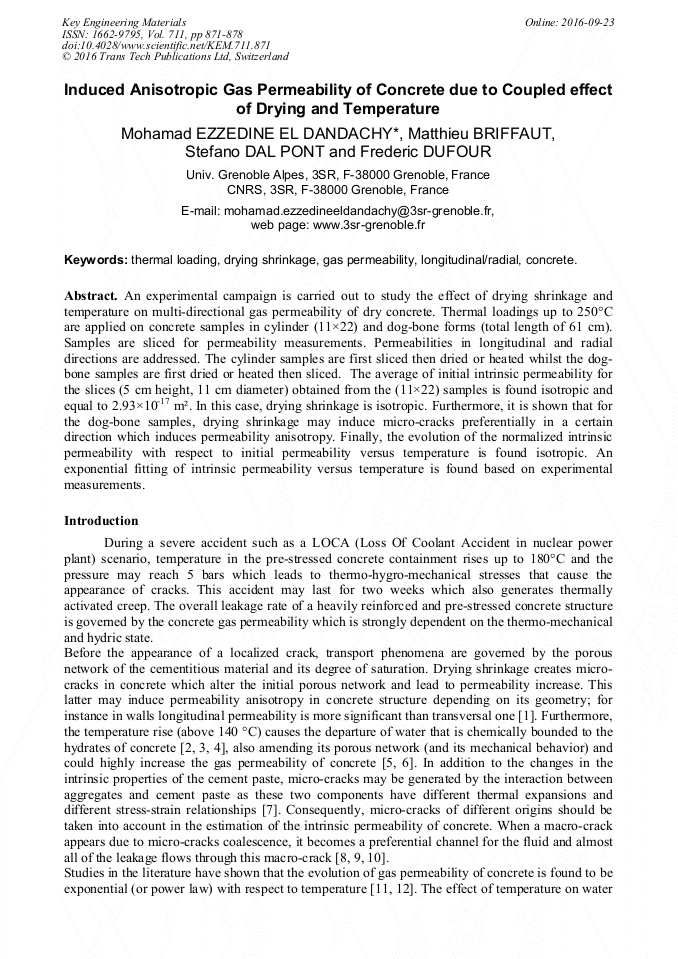

Induced Anisotropic Gas Permeability of Concrete due to Coupled Effect of Drying and Temperature

Abstract:

An experimental campaign is carried out to study the effect of drying shrinkage and temperature on multi-directional gas permeability of dry concrete. Thermal loadings up to 250°C are applied on concrete samples in cylinder (11×22) and dog-bone forms (total length of 61 cm). Samples are sliced for permeability measurements. Permeabilities in longitudinal and radial directions are addressed. The cylinder samples are first sliced then dried or heated whilst the dog-bone samples are first dried or heated then sliced. The average of initial intrinsic permeability for the slices (5 cm height, 11 cm diameter) obtained from the (11×22) samples is found isotropic and equal to 2.93×10^-17 m2. In this case, drying shrinkage is isotropic. Furthermore, it is shown that for the dog-bone samples, drying shrinkage may induce micro-cracks preferentially in a certain direction which induces permeability anisotropy. Finally, the evolution of the normalized intrinsic permeability with respect to initial permeability versus temperature is found isotropic. An exponential fitting of intrinsic permeability versus temperature is found based on experimental measurements.

• Periodical: Key Engineering Materials (Volume 711)
• Pages: 871-878
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.711.871
• Online since: September 2016
• Authors: Mohamad Ezzedine El Dandachy*, Matthieu Briffaut, Stefano Dal Pont, Frederic Dufour
• Keywords: Concrete, Drying Shrinkage, Gas Permeability, Longitudinal/Radial, Thermal Loading

References

[1] N. Burlion, F. Skoczylas, T. Dubois. Induced anisotropic permeability due to drying of concrete. Cement and Concrete Research, Elsevier (2003). 33 (5) 679-687.

DOI: 10.1016/s0008-8846(02)01039-6

[2] V. Baroghel-Bouny, Caractérisation des pâtes de ciment et des bétons; méthodes, analyse, interprétations, Edition du Laboratoire Central des Ponts et Chausées, Paris, (1994).

[3] U. Diederichs, U. M. Jumppanen, V. Penttala, Behaviour of high strength concrete at high temperature, Espoo: Helsinki University of Technology, Report 92, (1989).

[4] A. Noumowé, Effet de hautes temperatures (20-600 °C) sur le béton. Cas particulier du béton à hautes performance, Thèse de Doctorat, INSA Lyon, (1995).

[5] M. Choinska, A. Khelidj, G. Chatzigeorgiou, G. Pijaudier-Cabot. Effects and interactions of temperature and stress-level related damage on permeability of concrete. Cement and Concrete Research (2007). 37 (1) 79–88.

DOI: 10.1016/j.cemconres.2006.09.015

[6] M. Zeiml, R. Lackner, D. Leithner and J. Eberhardsteiner, Identification of residual gas-transport properties of concrete subjected to high temperatures. Cement and Concrete Research (2008). 38(5) 699–716.

DOI: 10.1016/j.cemconres.2008.01.005

[7] F. Grondin, H. Dumontet, A. Ben Hamida and H. Boussa. Micromechanical contributions to the behaviour of cement-based materials: Two-scale modelling of cement paste and concrete in tension at high temperatures, Cement and concrete composites (2010).

DOI: 10.1016/j.cemconcomp.2010.11.004

[8] V. Picandet, A. Khelidj, B. Hervé. Crack effects on gas and water permeability of concretes. Cement and Concrete Research (2009). 39(6) 537‑47.

DOI: 10.1016/j.cemconres.2009.03.009

[9] A. Akhavan, S. Seyed-Mohammad-Hadi and R. Farshad. Quantifying the effects of crack width, tortuosity, and roughness on water permeability of cracked mortars. Cement and Concrete Research (2012); 42(2) 313‑20.

DOI: 10.1016/j.cemconres.2011.10.002

[10] G. Rastiello, C. Boulay, S. Dal Pont, JL Tailhan, P. Rossi. Real-time water permeability evolution of a localized crack in concrete under loading. Cement and Concrete Research (2014). 56 20‑28.

DOI: 10.1016/j.cemconres.2013.09.010

[11] Z. P. Bazant and W. Thonghutai, Pore pressure and drying of concrete at high temperature, J. Eng. Mech. Div. ASCE (1978). 104 1059-1079.

[12] D. Gawin, C. Alonso, C. Andrade, C. E. Majorana and F. Pesavento, Effect of damage on permeability and hygro-thermel behaviour of HPCs at elevated temperatures: Part 1. Experimental results, Computers and Concrete (2005). 2(3) 189-202.

DOI: 10.12989/cac.2005.2.3.189

[13] H. Darcy. Les Fontaines Publiques de la Ville de Dijon. Dalmont, Paris. 647 p. & atlas, 1856.

[14] RILEM TC 129-MHT, Test methods for mechanical properties of concrete at high temperatures, Part 1 Introduction, Part 2 Stress-strain relation, Part 3 Compressive strength, Part 4 Tensile strength, Part 5 Modulus of elasticity, Part 6 Thermal strain, Part 7 Transient creep, Part 8 Steady-state creep, Part 9 Shrinkage, Part 10 Restraint, Part 11 Relaxation.

DOI: 10.3403/30308696

[15] L. J. Klinkenberg, The permeability of porous media to liquid and gaz, American Petroleum Institute, Drilling and Production Practice, 1941, pp.200-213.
