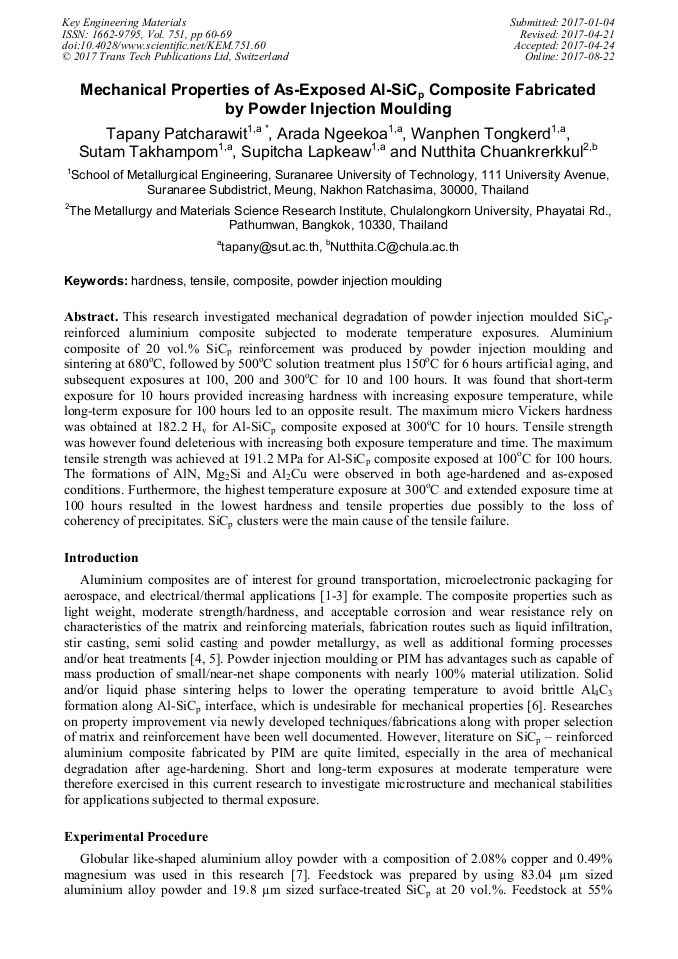

Mechanical Properties of As-Exposed Al-SiC_p Composite Fabricated by Powder Injection Moulding

Abstract:

This research investigated mechanical degradation of powder injection moulded SiC_p-reinforced aluminium composite subjected to moderate temperature exposures. Aluminium composite of 20 vol.% SiC_p reinforcement was produced by powder injection moulding and sintering at 680°C, followed by 500°C solution treatment plus 150°C for 6 hours artificial aging, and subsequent exposures at 100, 200 and 300°C for 10 and 100 hours. It was found that short-term exposure for 10 hours provided increasing hardness with increasing exposure temperature, while long-term exposure for 100 hours led to an opposite result. The maximum micro Vickers hardness was obtained at 182.2 H_v for Al-SiC_p composite exposed at 300°C for 10 hours. Tensile strength was however found deleterious with increasing both exposure temperature and time. The maximum tensile strength was achieved at 191.2 MPa for Al-SiC_p composite exposed at 100°C for 100 hours. The formations of AlN, Mg₂Si and Al₂Cu were observed in both age-hardened and as-exposed conditions. Furthermore, the highest temperature exposure at 300°C and extended exposure time at 100 hours resulted in the lowest hardness and tensile properties due possibly to the loss of coherency of precipitates. SiC_p clusters were the main cause of the tensile failure.

• Periodical: Key Engineering Materials (Volume 751)
• Pages: 60-69
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.751.60
• Online since: August 2017
• Authors: Tapany Patcharawit*, Arada Ngeekoa, Wanphen Tongkerd, Sutam Takhampom, Supitcha Lapkeaw, Nutthita Chuankrerkkul
• Keywords: Composite, Hardness, Powder Injection Moulding, Tensile

References

[1] M.Z. Bukhari, , D. Brabazon, and M.S.J. Hashmi, Application of metal matrix composite of CuSiC and AlSiC as electronics packaging materials, The 28th International Manufacturing Conference (IMC 28). Dublin City University, Republic of Ireland (2011).

[2] S. Rawal, Metal-matrix composites for space applications, J. of Min. Met. & Mater. Soc. 53 (2001) 14-17.

[3] N. Chawla, K.K. Chawla, Metal-matrix composites in ground transportation, J. of Min. Met. Mater. Soc. 58 (2006) 67-70.

DOI: 10.1007/s11837-006-0231-5

[4] Y.C. Lin, H.C. Li, S.S. Liou, M.T. Shie, Mechanism of plastic deformation of powder Metallurgy metal matrix composites of Cu-Sn/SiC and 6061/SiC under compressive stress, Mater. Sci. Eng. A, 373 (2004) 363-369.

DOI: 10.1016/j.msea.2004.02.011

[5] B. Ogel, R. Gurbuz, Microstructural characterization and tensile properties of hot pressed Al-SiC composites prepared from pure Al and Cu powders, Mater. Sci. Eng. A, 301 (2001) 213-220.

DOI: 10.1016/s0921-5093(00)01656-7

[6] J.C. Lee, J.P. Ahn, J.H. Shim, Z. Shi, H.I. Lee, Control of the interface in SiC/Al composites. Scr. Mater. 41 (1999) 895-900.

DOI: 10.1016/s1359-6462(99)00227-4

[7] A. Ngeekoh, V. Thongnoppakoon, A. Changlor, T. Jindangam, N. Phongreed, T. Patcharawit, N. Chuankrerkkul, Microstructure and phase analysis of precipitation hardened silicon carbide particulate-reinforced aluminium composite fabricated by PIM, the 41st Congress on Science and Technology of Thailand (STT41) Nakhon Ratchasima, Thailand (2014).

[8] G.B. Schaffer, B.J. Hall, S.J. Bonner, S.H. Huo, T.B. Sercombe, The effect of the atmosphere and the role of pore filling on the sintering of aluminium. Acta Mater. 54 (2006) 131-138.

DOI: 10.1016/j.actamat.2005.08.032

[9] J.M. Martín, F. Castro, Liquid phase sintering of P/M aluminium alloys: effect of processing conditions, J. of Mater. Proc. Tech. 143-144 (2003) 814-821.

DOI: 10.1016/s0924-0136(03)00335-2

[10] P. Jin, B.L. Xiao, Q.Z. Wang, Z.Y. Ma, Y. Liu, S. Li, Effect of solution temperature on aging behavior and properties of SiCp/AlCuMg composites, Mater. Sci. Eng. A, 528 (2011) 1504-1511.

DOI: 10.1016/j.msea.2010.10.075

[11] B.M. Gable, A.W. Zhu, G.J. Shiflet, E.A. Starke Jr., Assessment of the aluminum-rich corner of the Al–Cu–Mg–(Ag) phase diagram, CALPHAD 32 (2008) 256–267.

DOI: 10.1016/j.calphad.2007.08.003

[12] J. Roy, S. Chandra, S. Das, S. Maitra, Oxidation behaviour of silicon carbide-a review. Rev. Adv. Mater. Sci. 38 (2014) 29-39.

[13] A. Ureña, E.E. Martínez, P. Rodrigo, L. Gil, Oxidation treatments for SiC particles used as reinforcement in aluminium matrix composites, Compo. Sci. Tech. 64 (2004) 1843-1854.

DOI: 10.1016/j.compscitech.2004.01.010

[14] M. Rodríguez-Reyes, M.I. Pech-Canul, J.C. Rendón-Angeles, J. López-Cuevas, Limiting the development of Al4C3 to prevent degradation of Al/SiCp composites processed by pressureless infiltration, Compo. Sci. and Tech. 66 (2006) 1056-1062.

DOI: 10.1016/j.compscitech.2005.07.025

[15] T. Sritharan, L.S. Chan, L.K. Tan, N.P. Hung, A feature of the reaction between Al and SiC particles in an MMC, Mater. Charac, 47 (2001) 75-77.

DOI: 10.1016/s1044-5803(01)00144-9

[16] D. Hull, T.W. Clyne, An introduction to composite materials, second ed. Cambridge Solid State Science Series, Cambridge University Press, 1996.

[17] A. Kimura, M. Shibata, M. Katayama, T. Kanie, H. Takada, Reduction mechanism of surface oxide in aluminium alloy powders containing magnesium studied by X-ray photoelectron spectroscopy using synchrotron radiation, Appl. Phys. Lett., 70 (1997).

DOI: 10.1063/1.119250

[18] S. Zhongliang, G. Mingyuan, L. Junyou, L. Guoquan, L. Jae-chul, Z. Di, W. Renjie, Interfacial reaction between the oxidized SiC particles and Al-Mg alloys, Chin. Sci. Bull. 46 (2001)1984-(1952).

[19] T.W. Kim, Determination of densification behavior of Al-SiC metal matrix composites during consolidation processes, Mater. Sci. Eng. A, 483-484 (2008) 648-651.

DOI: 10.1016/j.msea.2006.09.175

[20] J. Asensio-Lozano, B. Suárez-Peña, G.F.V. Voort, Effect of processing steps on the mechanical properties and surface appearance of 6063 aluminium extruded products. Mater. 7 (2014) 4224-4242.

DOI: 10.3390/ma7064224

[21] J. Hashim, L. Looney, M.S.J. Hashmi, The wettability of SiC particles by molten aluminium alloy, J. Mater. Proc. Tech. 119 (2001) 324-328.

DOI: 10.1016/s0924-0136(01)00975-x

[22] T. Udomphol, R. Buntan, M. Boonma, The fabrication of aluminium composites via stir-mixed and particulate injection casting, Adv. Sci. Lett. 12 (2012) 223–229.

DOI: 10.1166/asl.2012.2751

[23] R.M. German, Powder metallurgy and particulate materials processing, Metal Powder Industries Federation. (2005).

[24] T. Fan, Z. Shi, D. Zhang, R. Wu, The interfacial reaction characteristics in SiC/Al composite above liquidus during remelting, Mater. Sci. Eng. A, 257 (1998) 281-286.

DOI: 10.1016/s0921-5093(98)00855-7

[25] I.A. MacAskill, R.L. Hexemer-Jr, I.W. Donaldson, D.P. Bishop, Effects of magnesium, tin and nitrogen on the sintering response of aluminum powder, J. Mater. Proc. Tech. 210 (2010) 2252-2260.

DOI: 10.1016/j.jmatprotec.2010.08.018

[26] E. Füglein, U. Schubert, Formation of Mg2Si from solid silicon monoxide, and solid-sate comproportionation between Mg2Si and SiO. Chem. Mater, 11 (1999) 865-866.

DOI: 10.1021/cm980775v

[27] R.H. Beton, E.C. Rollason, J. Inst. Metals, 86 (1957-1958) 77.

[28] L. Löchte, A. Gitt, G. Gottstein, I. Hurtado, Simulation of the evolution of GP zones in Al–Cu alloys: an extended Cahn–Hilliard approach, Acta Mater. 48 (2000) 2969-2984.

DOI: 10.1016/s1359-6454(00)00073-2

[29] H.K. Hardy, The ageing characteristics of ternary aluminium-copper alloys with cadmium indium or tin. 80 (1951–52) 483–492.

[30] B.G. Kim, S.L. Dong, S.D. Park, Effects of thermal processing on thermal expansion coefficient of a 50 vol. % SiCp/Al composite, Mater. Chem. Phys. 72 (2001) 42-47.

DOI: 10.1016/s0254-0584(01)00306-6

[31] N. Chawla, Y.L. Shen, Mechanical behavior of particle reinforced metal matrix composites, Adv. Eng. Mater. 3 (2001) 357-370.

DOI: 10.1002/1527-2648(200106)3:6<357::aid-adem357>3.0.co;2-i

[32] A. Slipenyuk, V. Kuprin, Milman, V.Y. Goncharuk, J. Eckert, Properties of P/M processed particle reinforced metal matrix composites specified by reinforcement concentration and matrix-to-reinforcement particle size ratio, Acta Mater. 54 (2006).

DOI: 10.1016/j.actamat.2005.08.036

[33] T. Udomphol, B. Inpanya, N. Chuankrerkkul, Characterization of feedstocks for injection molded SiCp-reinforced Al-4. 5 wt. %Cu composite, Adv. Mater. Res. 383-390 (2012) 3234-3240.

DOI: 10.4028/www.scientific.net/amr.383-390.3234
