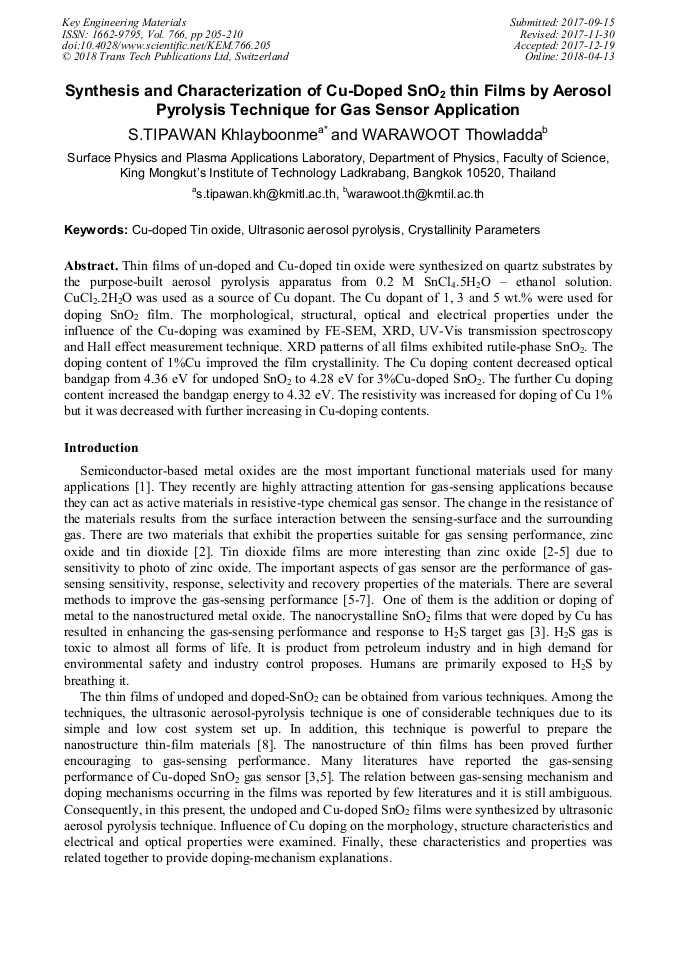

Synthesis and Characterization of Cu-Doped SnO₂ Thin Films by Aerosol Pyrolysis Technique for Gas Sensor Application

Abstract:

Thin films of un-doped and Cu-doped tin oxide were synthesized on quartz substrates by the purpose-built aerosol pyrolysis apparatus from 0.2 M SnCl₄.5H₂O – ethanol solution. CuCl₂.2H₂O was used as a source of Cu dopant. The Cu dopant of 1, 3 and 5 wt.% were used for doping SnO₂ film. The morphological, structural, optical and electrical properties under the influence of the Cu-doping was examined by FE-SEM, XRD, UV-Vis transmission spectroscopy and Hall effect measurement technique. XRD patterns of all films exhibited rutile-phase SnO₂. The doping content of 1%Cu improved the film crystallinity. The Cu doping content decreased optical bandgap from 4.36 eV for undoped SnO₂ to 4.28 eV for 3%Cu-doped SnO₂. The further Cu doping content increased the bandgap energy to 4.32 eV. The resistivity was increased for doping of Cu 1% but it was decreased with further increasing in Cu-doping contents

• Periodical: Key Engineering Materials (Volume 766)
• Pages: 205-210
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.766.205
• Online since: April 2018
• Authors: S.Tipawan Khlayboonme*, Warawoot Thowladda
• Keywords: Crystallinity Parameters, Cu-Doped Tin Oxide, Ultrasonic Aerosol Pyrolysis

References

[1] S. J. Patil, A. V. Patil, C. G. DIghavkar, et al., Semiconductor metal oxide compounds based gas sensors: A literature review, Front. Mater. Sci. 9 (2015) 14–37.

DOI: 10.1007/s11706-015-0279-7

[2] L. Filipovic and S. Selberherr, Performance and stress analysis of metal oxide films for CMOS-Integrated Gas Sensors. Sensors 15 (2015) 7206-7227.

DOI: 10.3390/s150407206

[3] C. Wang, W. Zeng, L. Luo, P. Zhang, Z. Wang, Gas-sensing properties and mechanisms of Cu-doped SnO2 spheres towards H2S, Ceramics International. 42 (2016) 10006-10013.

DOI: 10.1016/j.ceramint.2016.03.103

[4] A. Amuthaa, S. Amirthapandianb, B. Sundaravelb, et al., Structural and gas sensing properties of ex-situ oxidized Sn grown by thermal evaporation, Appl. Surf. Sci. 360 (2016) 731–737.

DOI: 10.1016/j.apsusc.2015.11.054

[5] W.X. Jin, S.Y. Ma, Z.Z. Tie, et al., One-step synthesis and highly gas-sensing properties of hierarchical Cu-doped SnO2 nanoflowers, Sens. Actuators, B. 213 (2015) 171–180.

DOI: 10.1016/j.snb.2015.02.075

[6] P. Shankar, J. Bosco, B. Rayappan, Gas sensing mechanism of metal oxides: The role of ambient atmosphere, type of semiconductor and gases - A review, ScienceJet. 4:126 (2015) 1-18.

[7] K. Y. Ko, J. G. Song, Y. Kim, et al., Improvement of gas-sensing performance of large-area tungsten disulfide nanosheets by surface functionalization, ACS Nano. 10 (2016) 9287−9296.

DOI: 10.1021/acsnano.6b03631

[8] J. H. Bang, K. S. Suslick, Applications of ultrasound to the synthesis of nanostructured materials, Adv. Mater. 22 (2010) 1039–1059.

DOI: 10.1002/adma.200904093

[9] S.T. Khlayboonme and W.Thowladda, Effect of SnCl4 concentration on transparent and conducting undoped tin oxide thin films, Key Engineering Materials. 690 (2016) 246-251.

DOI: 10.4028/www.scientific.net/kem.690.246

[10] P. M. Shafi, A. C. Bose, Impact of crystalline defects and Size on X-ray line broadening: A phenomenological approach for tetragonal SnO2 nanocrystals, AIP Advances. 5 (2015) 057137.

DOI: 10.1063/1.4921452

[11] A. Bougrinea, A. E. Hichoub, M. Addoua, J. Ebothéc, A. Kachouanea, M. Troyonc, Structural, optical and cathodoluminescence characteristics of undoped and tin-doped ZnO thin films prepared by spray pyrolysis, Mater. Chem. Phys. 80 (2003) 438–445.

DOI: 10.1016/s0254-0584(02)00505-9

[12] D. J. Goyal, C. Agashe, M.G. Takwale, et al., Development of transparent and conductive ZnO films by spray pyrolysis, J. Mater. Sci., 27 (1992) 4705-4708.

DOI: 10.1007/bf01166010

[13] J. A. Guerra, J. R. Angulo, S. Gomez, et al., The Urbach focus and optical properties of amorphous hydrogenated SiC thin films, J. Phys. D: Appl. Phys. 49 (2016) 195102.

DOI: 10.1088/0022-3727/49/19/195102

[14] B. D. Viezbicke, S. Patel, B. E. Davis, D. P. Birnie, Evaluation of the Tauc method for optical absorption edge determination: ZnO thin films as a model system, Phys. Status Solidi B. 252 (2015) 1700–1710.

DOI: 10.1002/pssb.201552007

[15] A. A. Yada, E.U. Masumdar, Preparation and characterization of indium doped CdS0.2Se0.8 thin films by spray pyrolysis, Mater. Res. Bull. 45 (2010) 1455-1459.

DOI: 10.1016/j.materresbull.2010.06.034

[16] A. Hadri, A. E. Hat, M. Sekkati, A. Mzerd, Investigation of structural, optical, and electrical properties of In-doped SnO2 thin films deposited by spray pyrolysis, Phys. Status Solidi C. 14 (2017) 1700189.

[17] A. Chen, S. Xia, Z. Ji, J. Xi, H. Qin, Q. Mao, Effect of Cu doping on the structure, electronic and optical properties of SnO2 thin films by spray pyrolysis: An experimental and density functional study, Surf. Coat. Technol. 322 (2017) 120-126.

DOI: 10.1016/j.surfcoat.2017.05.026

[18] P. Chetri, A. Choudhury, Investigation of structural and magnetic properties of nanoscale Cu doped SnO2: An experimental and density functional study, J. Alloys Compd. 627 (2015) 261-267.

DOI: 10.1016/j.jallcom.2014.11.204
